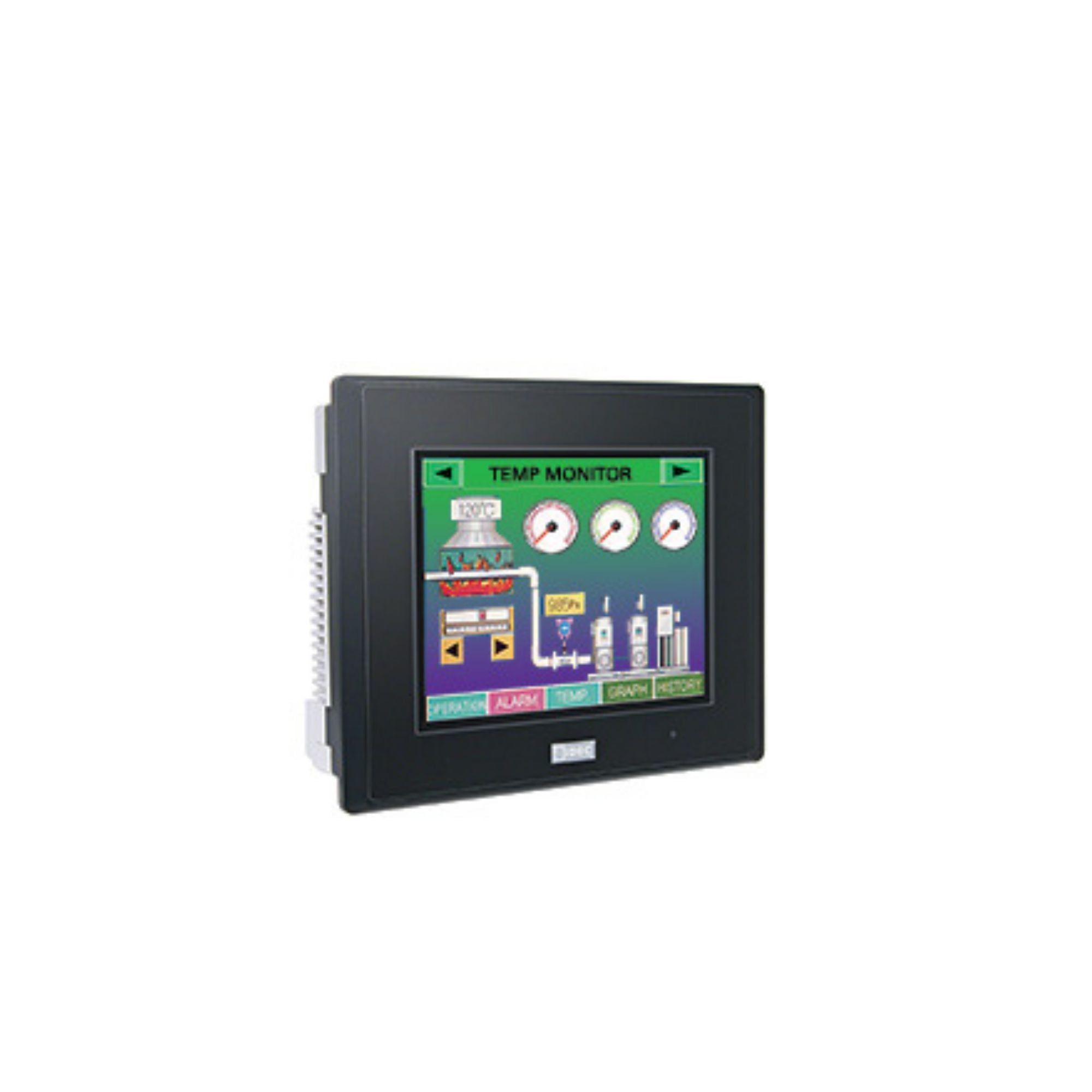

IDEC | 5.7 TFT 65K (Black Bezel) | HG2G-5TT22TF-B

1 in stock | Need More? >>

  • 5.7in TFT LCD Color
  • 65K colors with 500 cd/m²
  • Rated Power Voltage: 12-24V DC
  • Display Resolution: 320 x 240 Pixels
  • Extreme Operating Temp: -20 ̊ C to +60 ̊ C
  • Backlight Lifespan: 100,000 hours
  • Supports FTP, Email, Web Server
  • Supports up to 4 protocols simultaneously
  • WindEDIT Mobile App for iOS and Android devices
  • IP 66F, Type 4X, Class I Div 2
  • 3-year warranty


Electrical Specifications

Allowable voltage range 10.2 to 28.8V DC
Maximum Power Consumption 8W maximum

Display Specifications

Backlight Life 100,000 hours minimum
Display Resolution 320W x 240H pixels
Effective Display Area 115.2(W)×86.4(H)mm
Display Type TFT Color LCD

Certification Specifications

CE marking Yes
Ship standard false
UL certification Yes

Environmental Specifications

Operating Temperature -20 to +60 degC (no freezing)
Storage Temperature -20 to +70 degC

Electrical Specifications (solenoid unit)

Operating voltage 12-24V DC

Hardware Specifications

SD Memory Slot false
Screen Size 5.7 inches
Number of Ethernet Port 1

Operation Specifications

User Memory 5 MB

Shipping, Transportation and Warranty Specifications

Warranty 3 Years

Aesthetic Specifications

Body Color dark gray
Bezel Color Black


ID #: 143291
