Mfr. Part #: FC6A-C24K1CE
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 144527

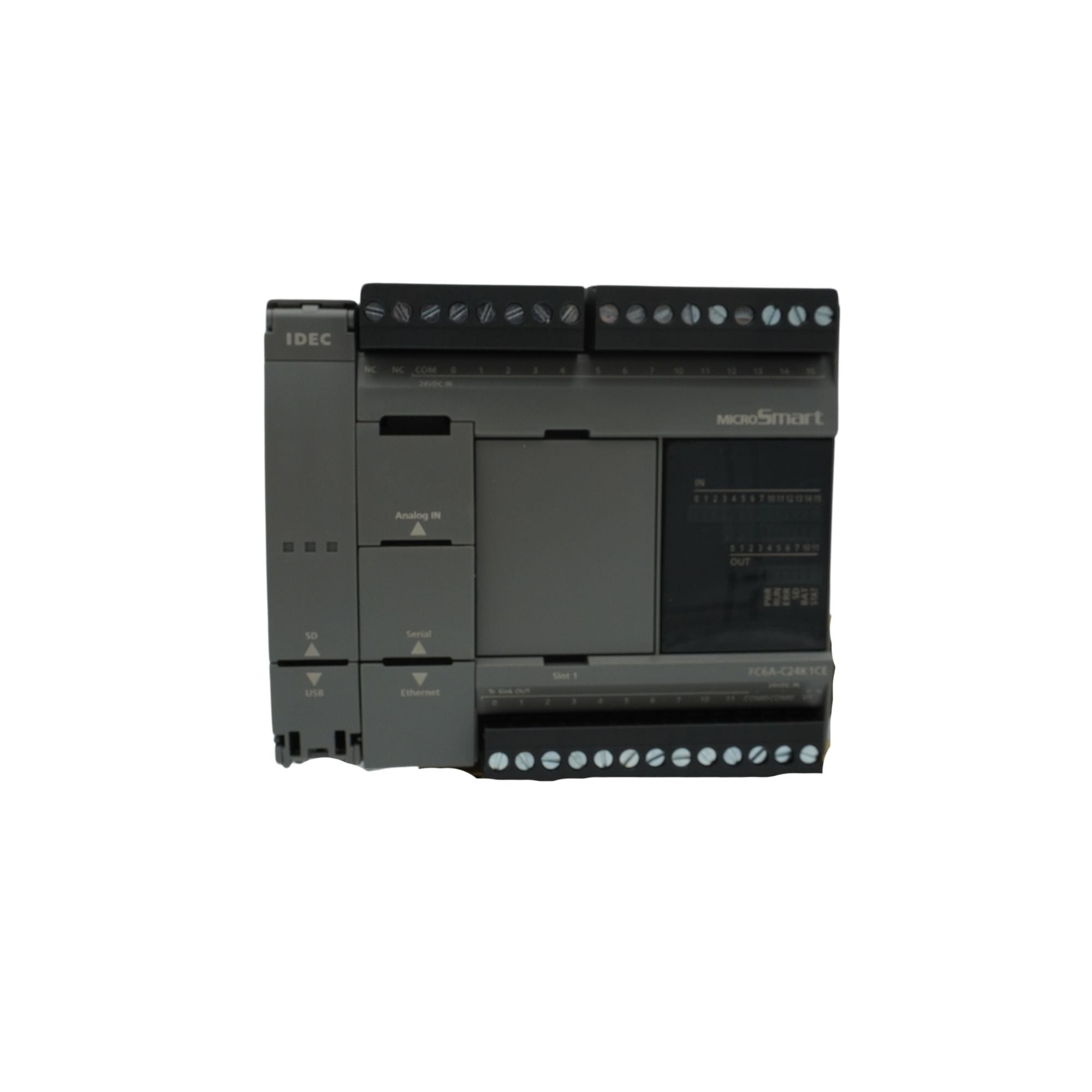

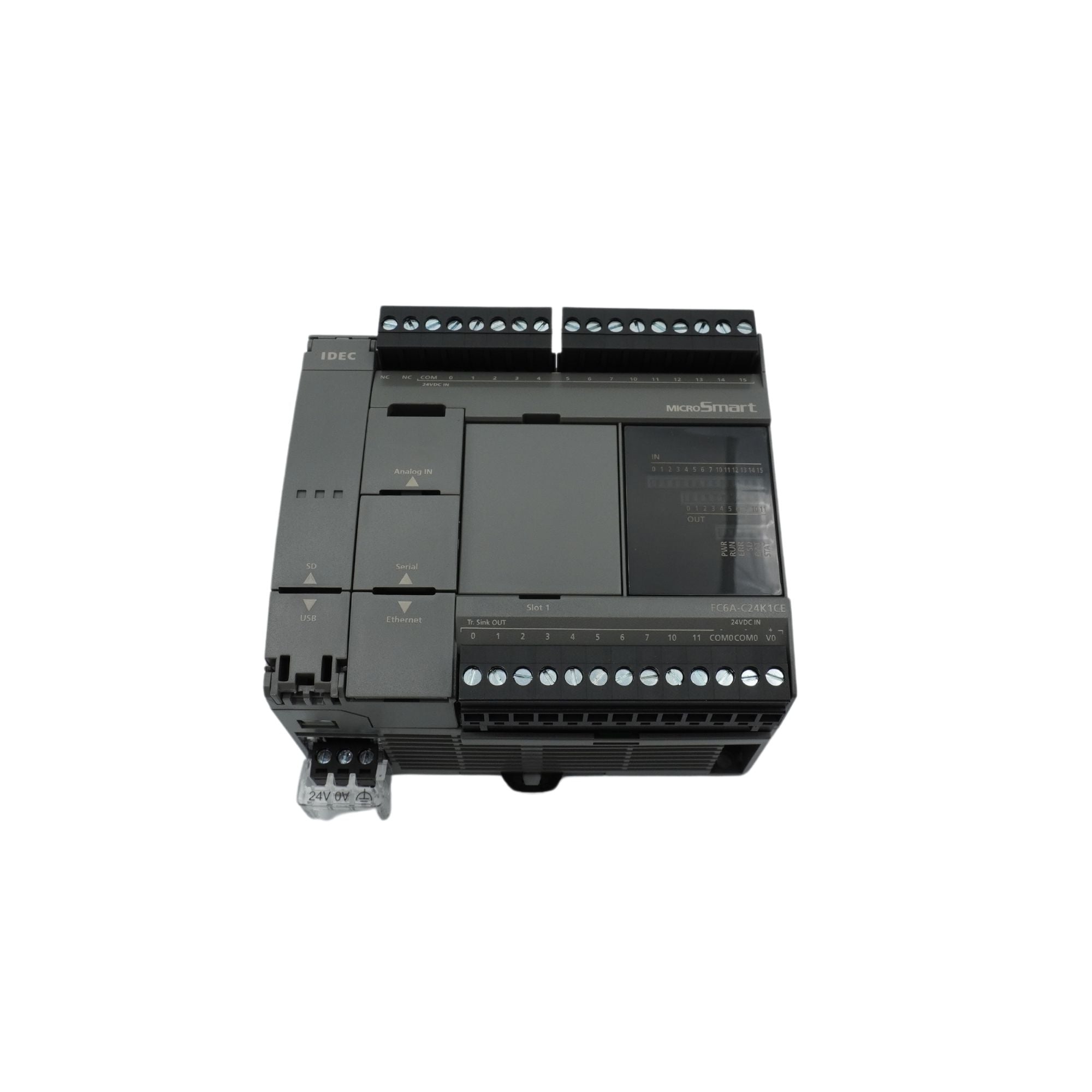

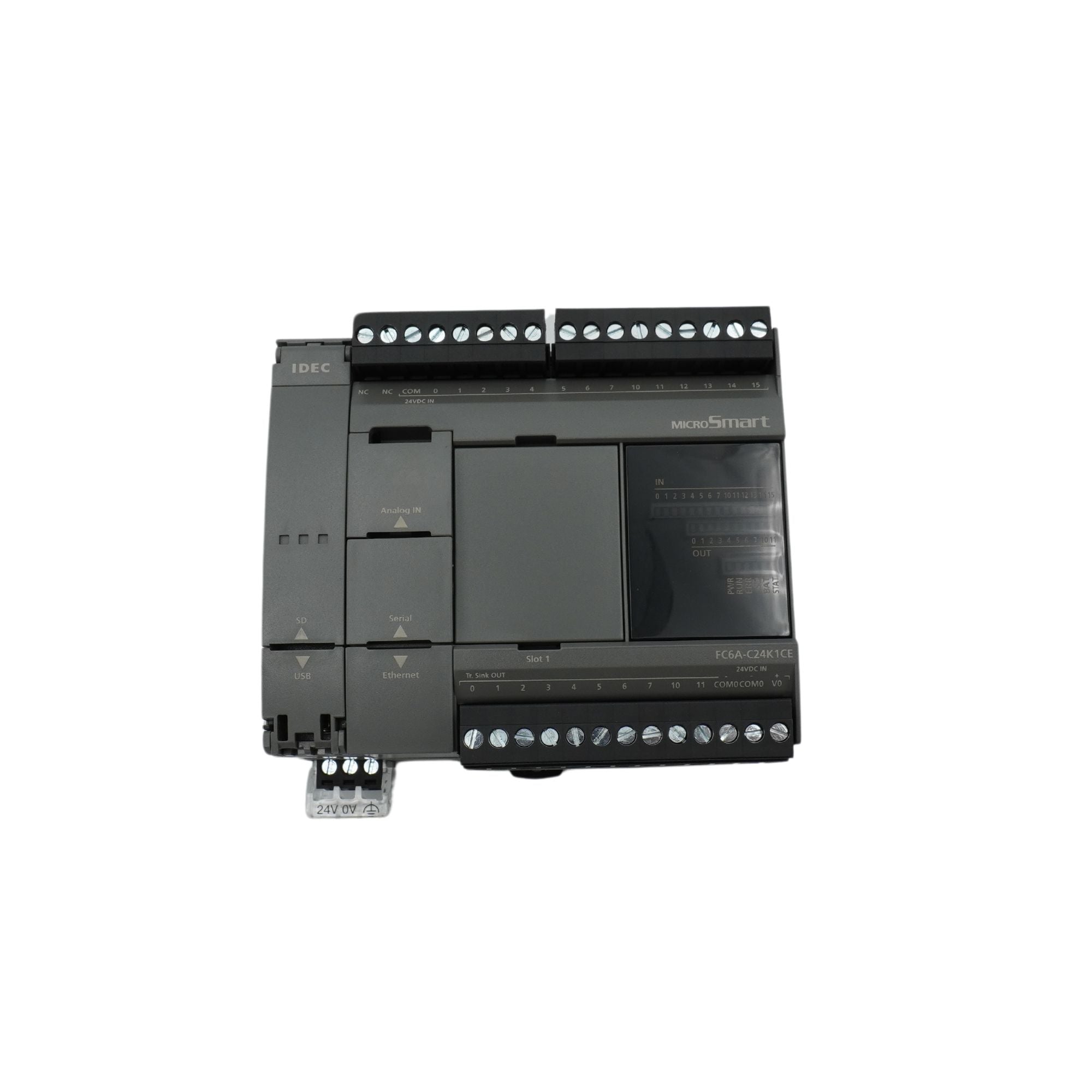

The IDEC FC6A-C24K1CE is a powerful, space-saving micro PLC engineered for high-performance control in demanding industrial environments. Designed for scalability and ease of integration, this compact unit features advanced networking capabilities, versatile I/O options, and built-in data logging support. Whether managing standalone equipment or part of a larger automated system, the FC6A-C24K1CE delivers reliable, real-time control and connectivity—making it an ideal choice for OEMs, system integrators, and plant operators looking for efficiency without compromise.
| IP Rating | IP20 |
| UL certification | Yes |
| TUV certification | Yes |
| CE marking | Yes |
| Hazardous Location | Class I Div 2 |
| Embedded Digital IO | 24 |
| SD Memory Slot | true |
| USB Port | USB Mini-B |
| Number of Ethernet Port | 1 |
| Embedded Analog IO | 1 |
| Embedded Serial Port | 1 |
| Number of Embedded Input | 14 |
| Digital Output Type | Transistor Sink |
| Operating voltage | 24VDC |
| Internal relay | 12400 |
| Maximum Digital I/O Points | 508 |
| Data register | 56000 |
| Maximum Analog I/O Points | 125 |
| Maximum number of expansion modules | 15 |
| Timer | 1024 |
| Program Capacity | 384K Bytes |
| High-speed Counter | 100 Khz |
| Analog Input Type | 0-10 VDC |
| Communication Protocol | Modbus RTU Modbus TCP |
| Programming Language | Ladder, Script |
| Number of Embedded Output | 10 |
| iOS and Android App | WindEDIT Lite |
| Battery | BR2032 |
| Maximum Expandable Serial Ports | 8 |
| Operating Temperature | -25 to 65 deg. C |
| Product Type | CPU Base Module |
| Terminal Shape | Screw terminal |
