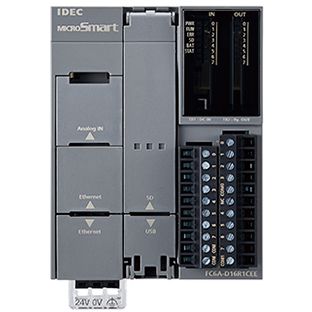

Ethernet/IP, Modbus TCP/RTU, BACnet, dual ethernet ports
PLC 24VDC Transistor Output
Operation Specifications
| Analog Input Type | 0-10 VDC |
| Battery | BR2032 |
| High-speed Counter | 100 Khz |
| iOS and Android App | WindEDIT Lite |
| Maximum Expandable Serial Ports | 33 |
| Number of Embedded Output | 8 |
| Program Capacity | 800K Bytes |
| Programming Language | Ladder, Script |
| Communication Protocol | BACnet/IP Modbus TCP Modbus RTU EtherNet/IP MQTT |
| Data register | 200000 |
| Internal relay | 15400 |
| Maximum number of expansion modules | 63 |
| Maximum Analog I/O Points | 511 |
| Timer | 2000 |
| Maximum Digital I/O Points | 2044 |
Hardware Specifications
| Embedded Analog IO | 1 |
| Embedded Digital IO | 16 |
| Number of Embedded Input | 8 |
| SD Memory Slot | true |
| Number of Ethernet Port | 2 |
| USB Port | USB Mini-B |
| Digital Output Type | Transistor Source |
ID #: 152614
