Mfr. Part #: I5CA5P02000VA1000S
ID #: 202302

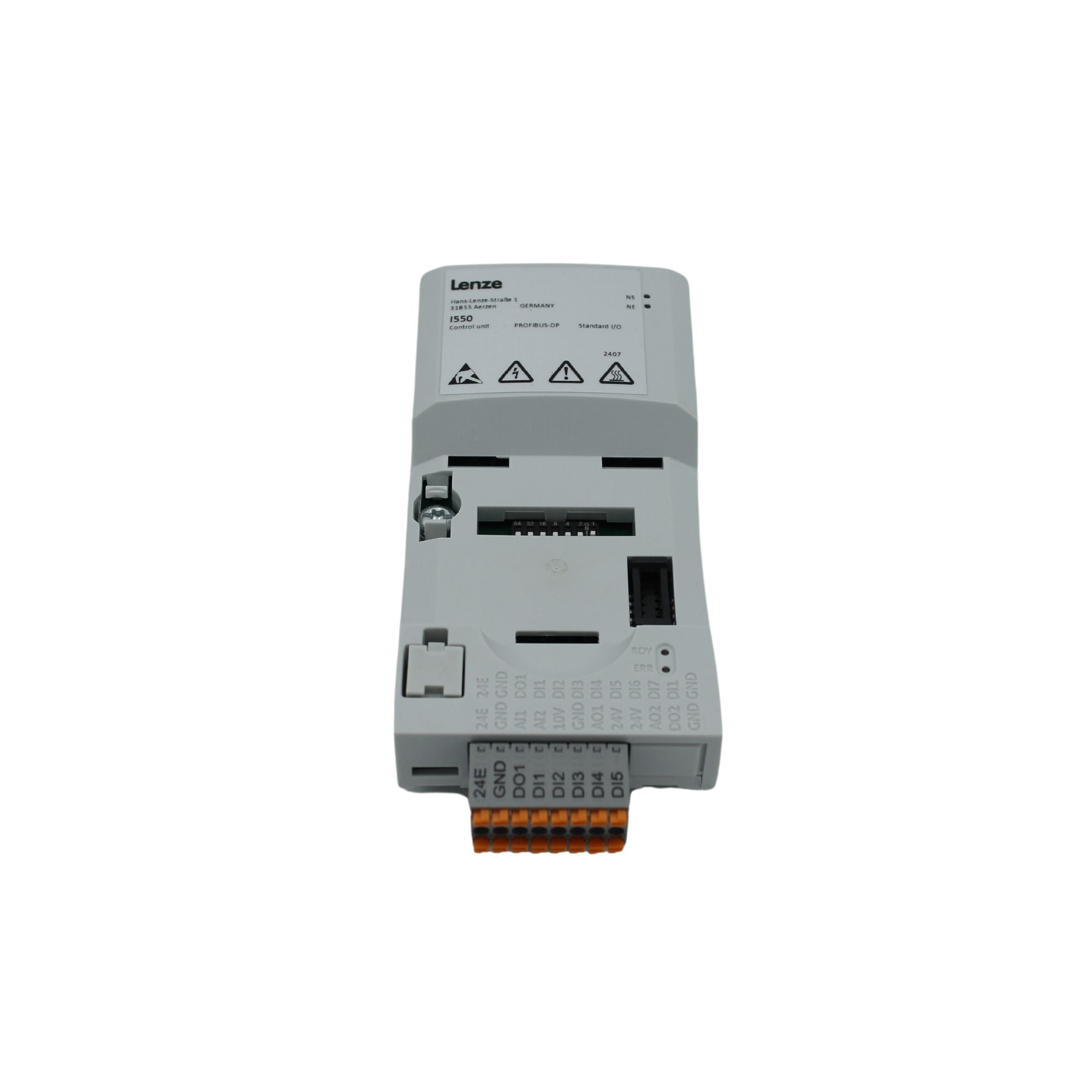

Control Unit 5 digital input-1 digital output analog output-1, Profibus
| ID number | 16070332 |
| Product group | Control units |
| Product range | i550-C |
| Control electronics equipment | 24 V supply of control electronics Motor temperature input Relay Encoder input |
| 24 V supply of control electronics | yes, as an alternative to the supply via mains |
| Resolver input | no |
| Resolver input, integration | not intended for this product range |
| Encoder input | yes, incremental encoder (HTL) via two digital inputs |
| Encoder input, integration | firmly integrated |
| Operation/diagnostics | wired, e.g. with PC wireless, e.g. with smartphone Keypad |
| Keypad (operation/diagnostics) | no |
| Wireless operation/diagnostics, e.g. with smartphone | possible, a WLAN module is required in addition |
| Wired operation/diagnostics, e.g. with PC | possible, a USB diagnostic module is required in addition |
| Memory module | Saves software-based settings of the inverter The inverter’s scope of supply includes one memory module The inverter cannot be operated without the memory module |
| Factory default mains setting | 60 Hz |
| Number of digital inputs | 5 |
| Number of analog inputs | 2 |
| Number of digital outputs | 1 |
| Number of analog outputs | 1 |
| Fieldbus | PROFIBUS |
| Degree of protection (EN 60529) | IP20 |
| Degree of protection (UL 50) | Type 1 |
