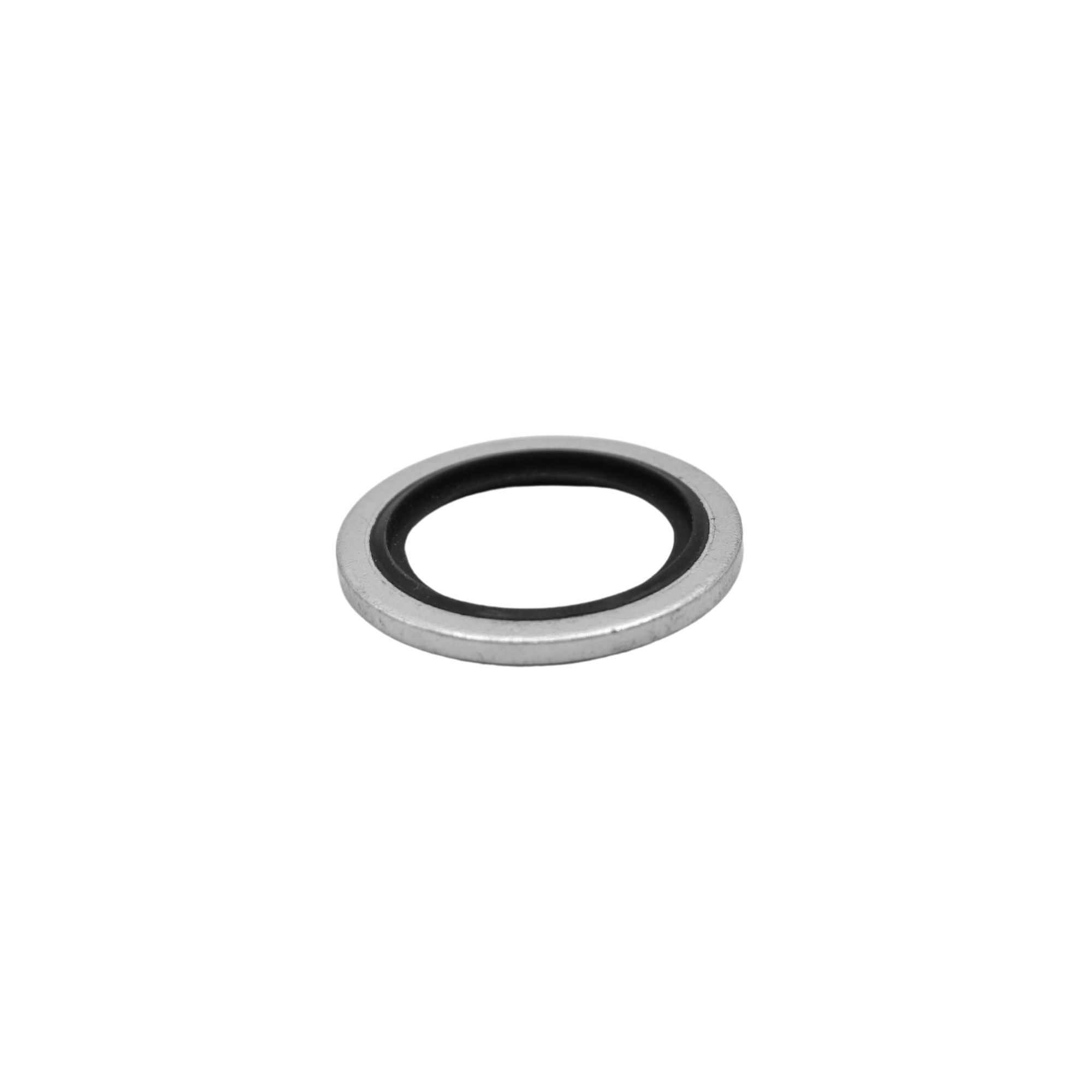

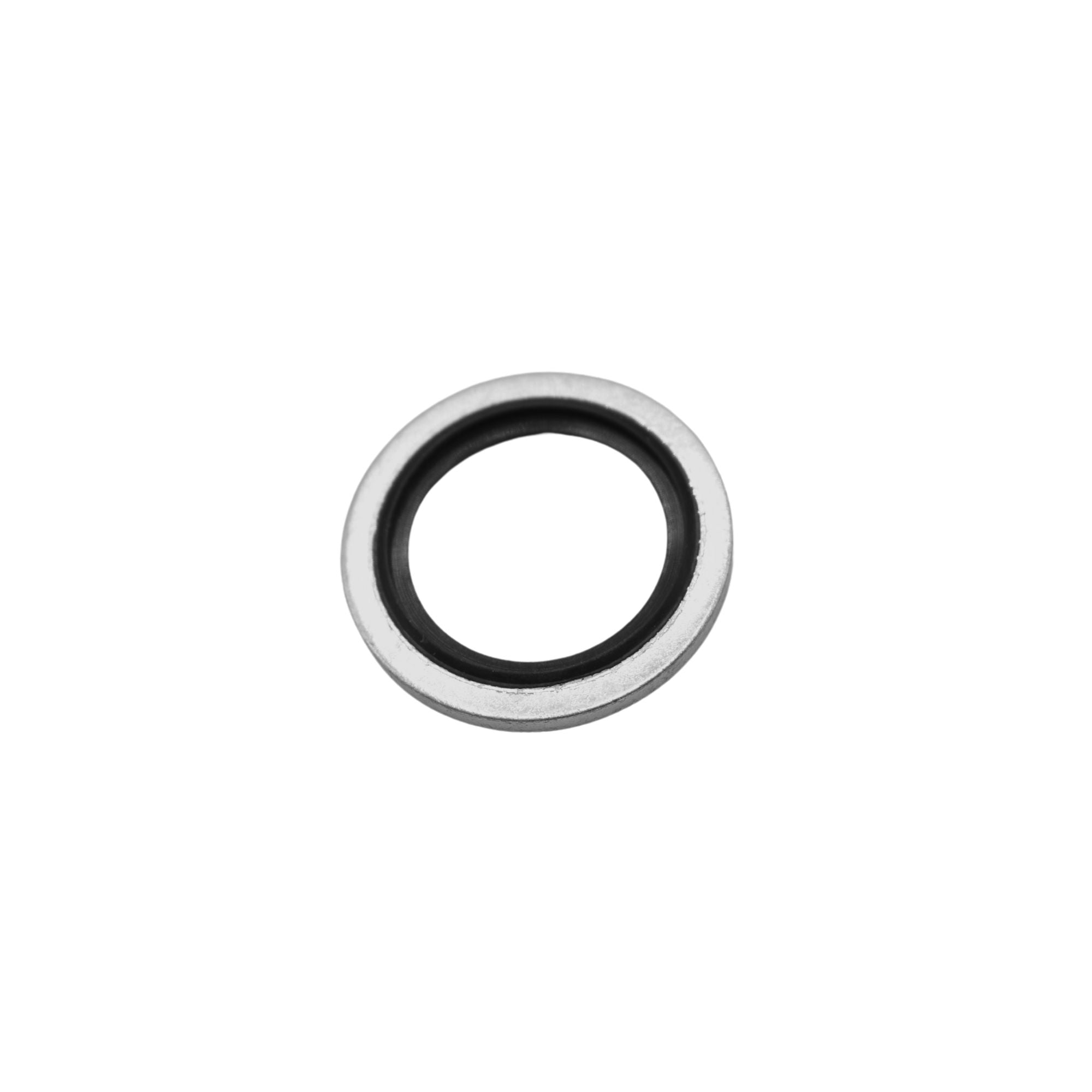

Mfr. Part #: 9900-24
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 39861
| THREAD TYPE B1 | BONDED SEAL FOR MBSPP THREAD |
| THREAD SIZE B1 | BONDED SEAL FOR SIZE 24 MBSPP |
| DIAMETER L (MM) | 44.86 |
| THREAD SPECIFICATION B1 | ISO 1179 |
| WIDTH W (MM) | 2.5 |
| DIAMETER M (MM) | 58.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.038 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.524 |
