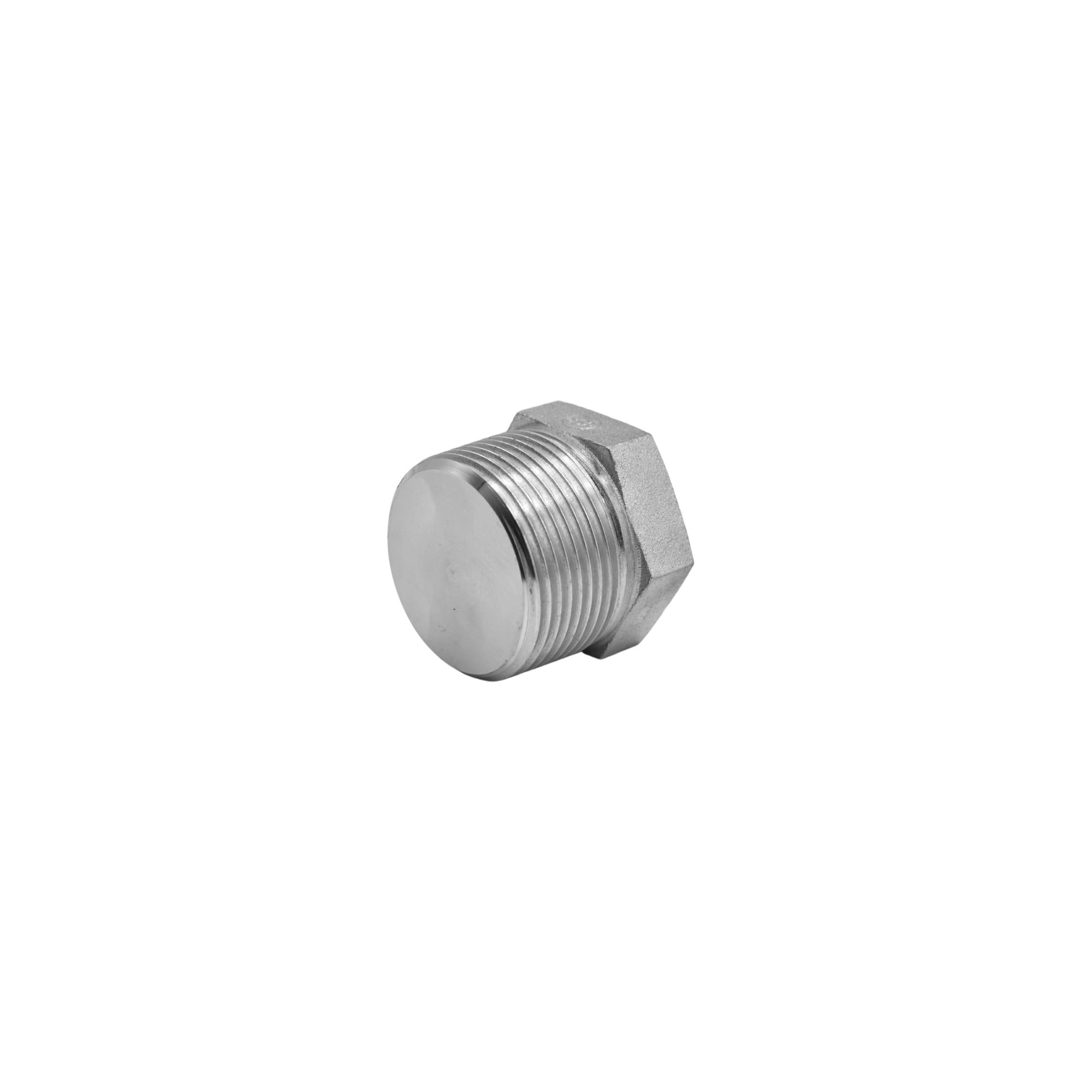

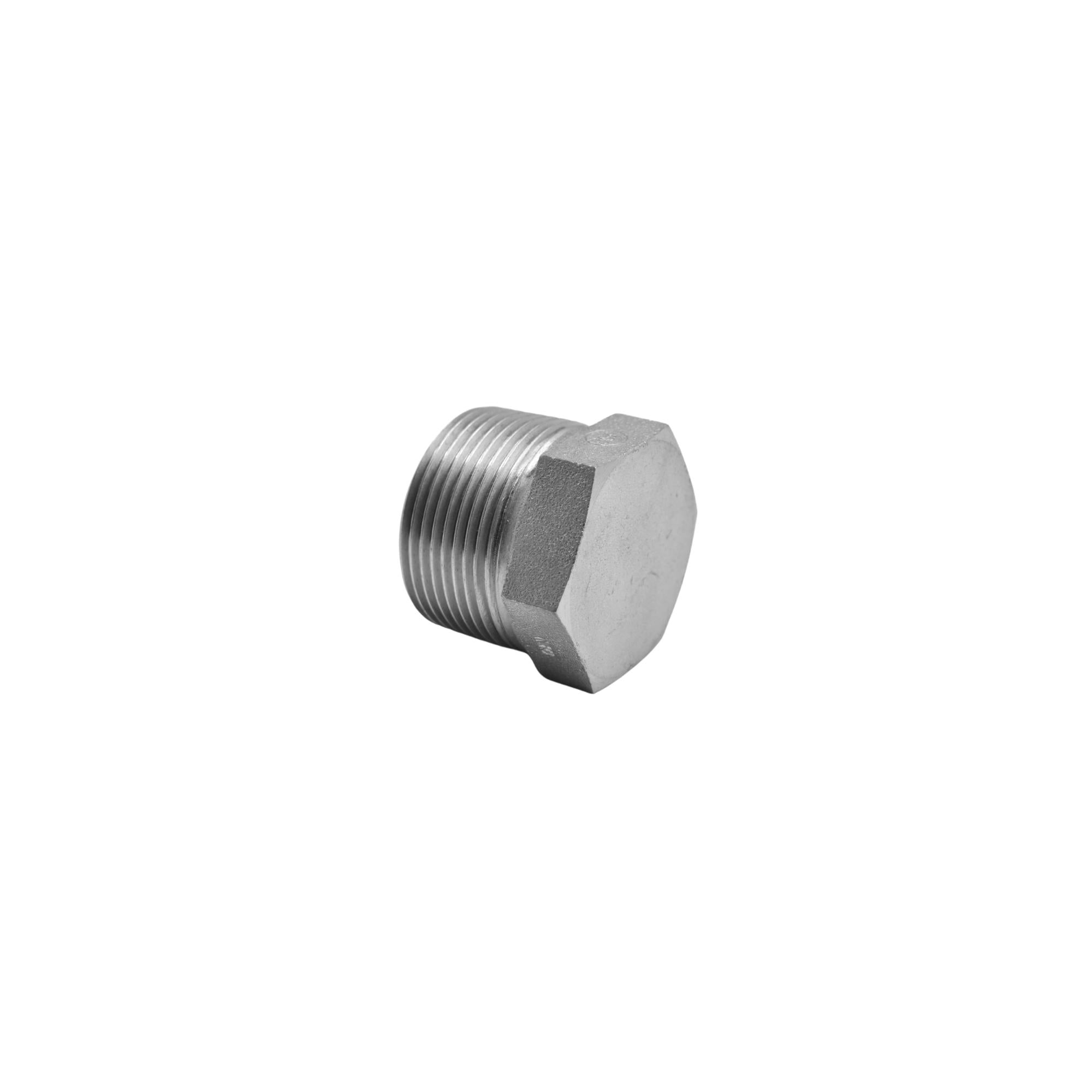

Mfr. Part #: 9500-P-20
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD TYPE B1 | MALE BSPT (R) |
| THREAD SIZE B1 | 1-1/4-11 |
| THREAD DRILL B1 (MM) | 28.2 |
| THREAD SPECIFICATION B1 | ISO 7-1 |
| BODY HEX (MM) | 44.4 |
| OVERALL LENGTH L (MM) | 39.0 |
| OVERALL LENGTH W (MM) | 13.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.869 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.692 |
ID #: 39466
