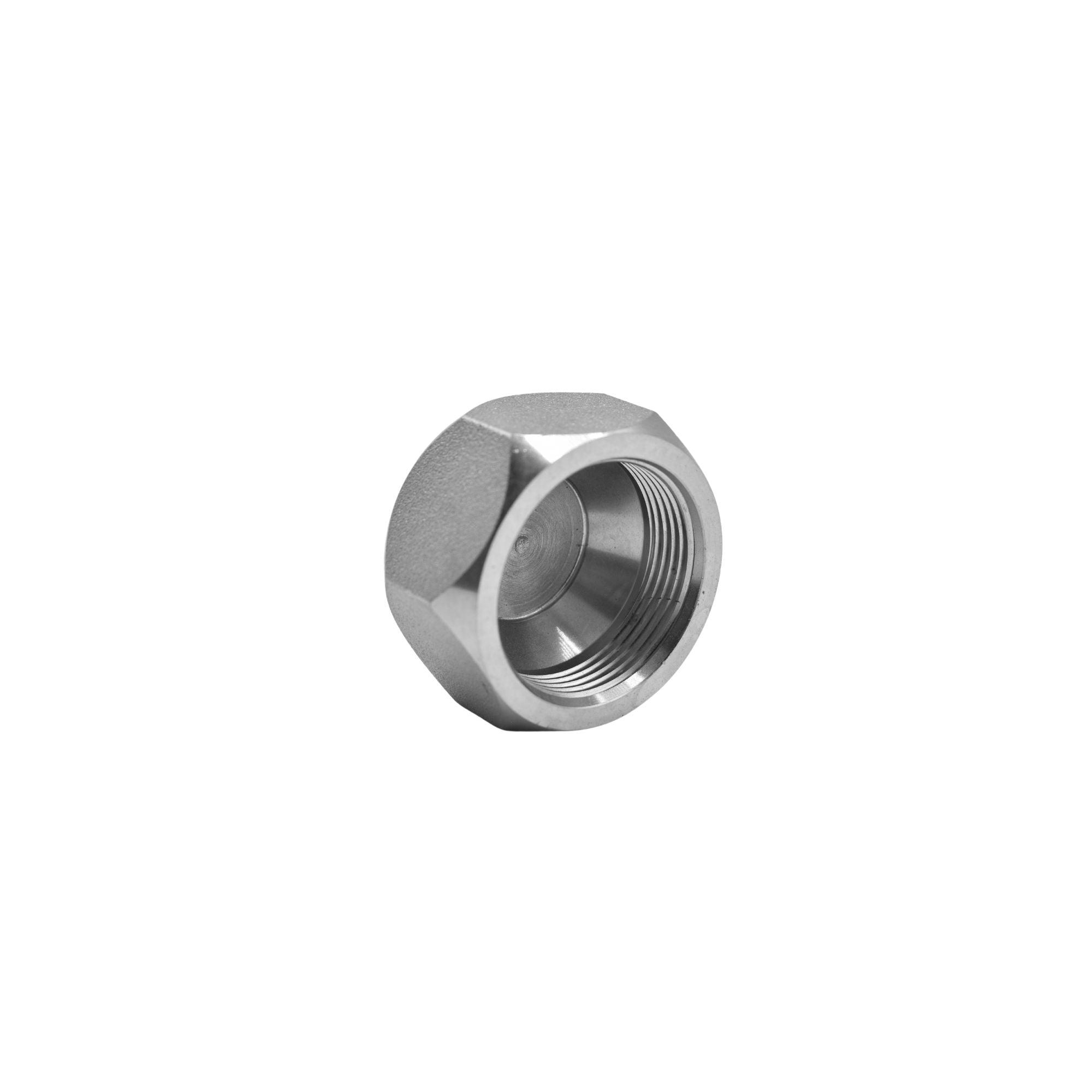

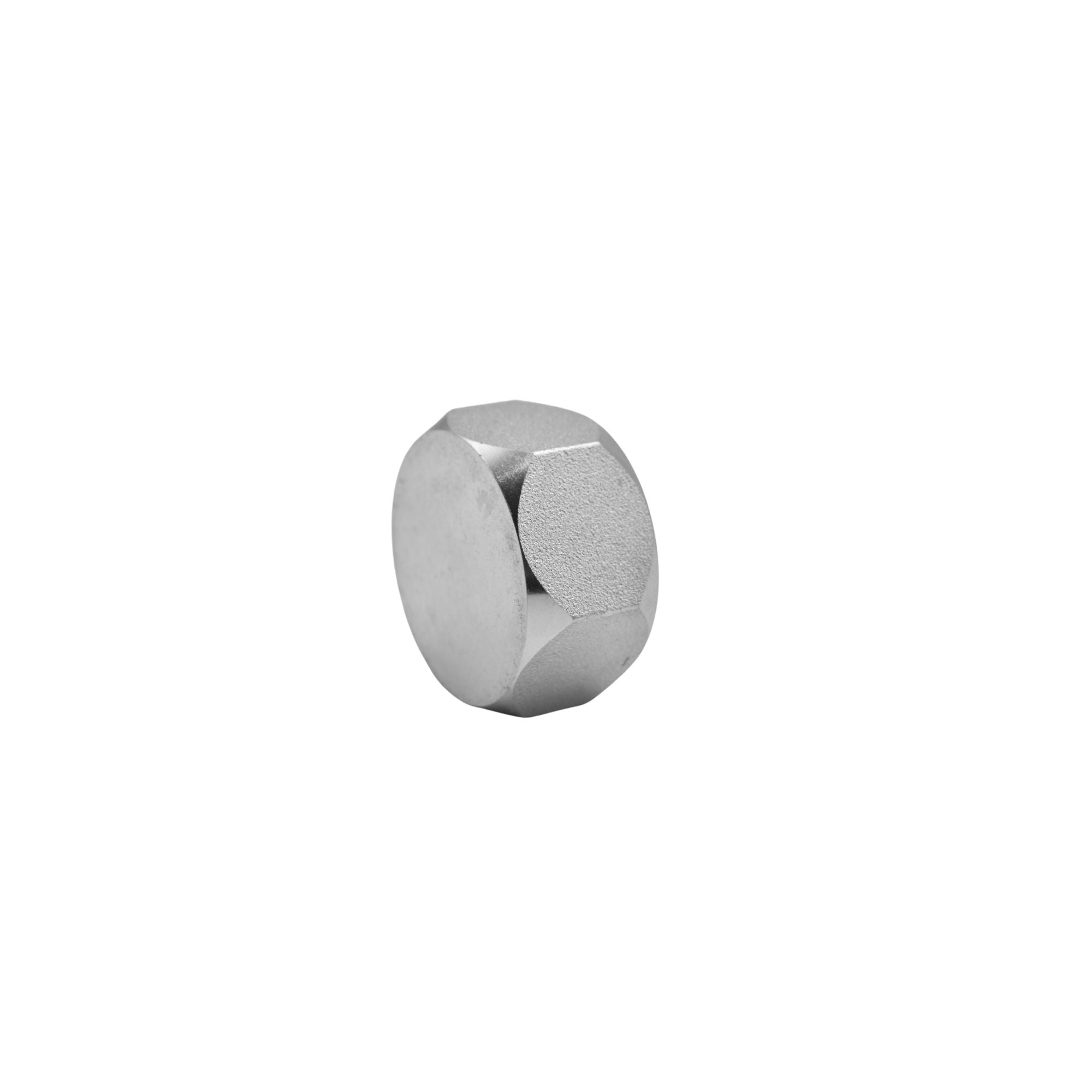

Mfr. Part #: 0304-C-20
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 39249
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | 1-5/8-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.000 |
| OVERALL LENGTH L IN | 1.060 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.55 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.240 |
