Mfr. Part #: 2651-16-16-16-16-FG
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 4 SIZE | 1-5/16-12 |
| THREAD 4 DRILL IN | 0.844 |
| THREAD 4 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 3.620 |
| CENTERLINE LENGTH M IN | 1.810 |
| CENTERLINE LENGTH M2 IN | 1.970 |
| CENTERLINE LENGTH M3 IN | 1.810 |
| CENTERLINE LENGTH M4 IN | 1.810 |

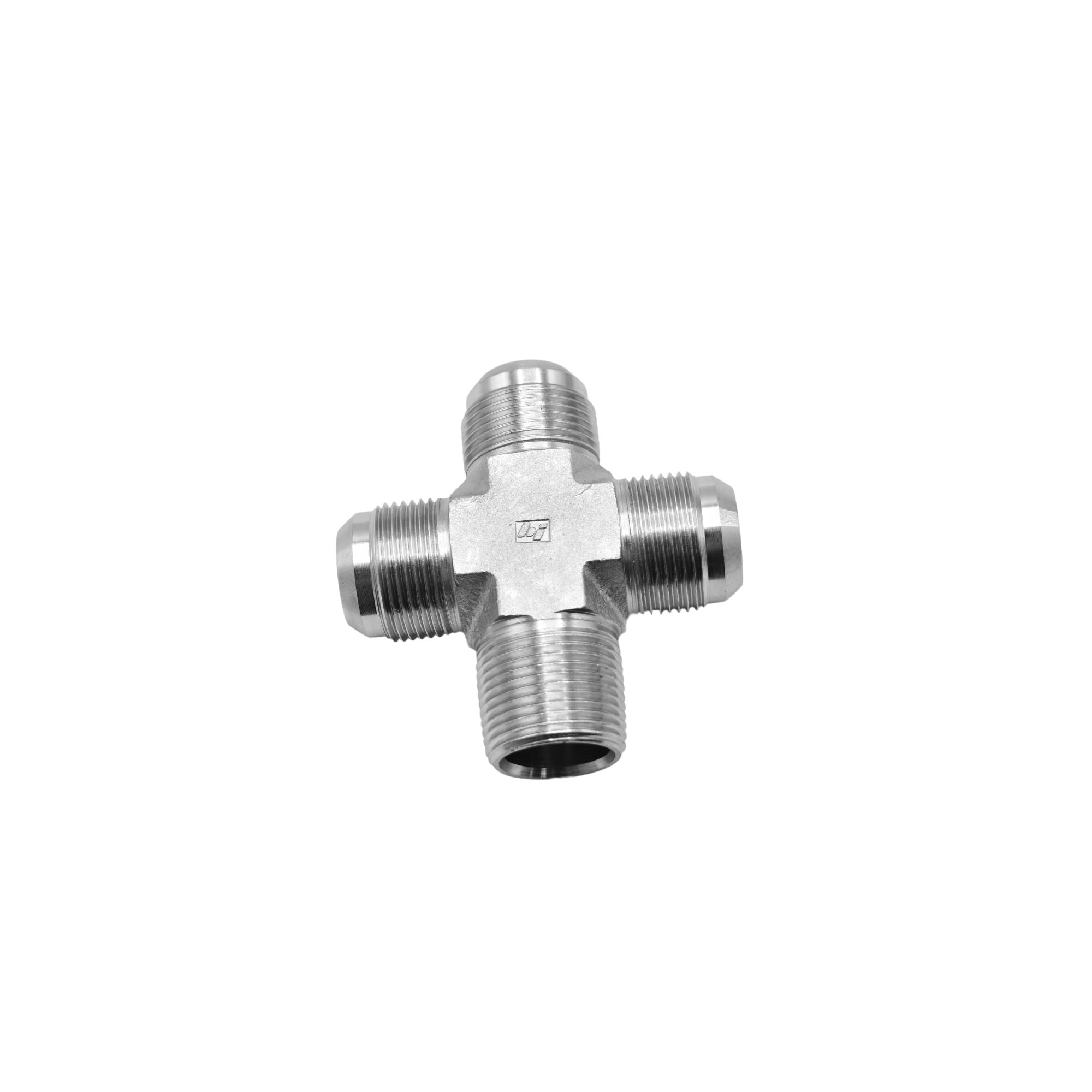

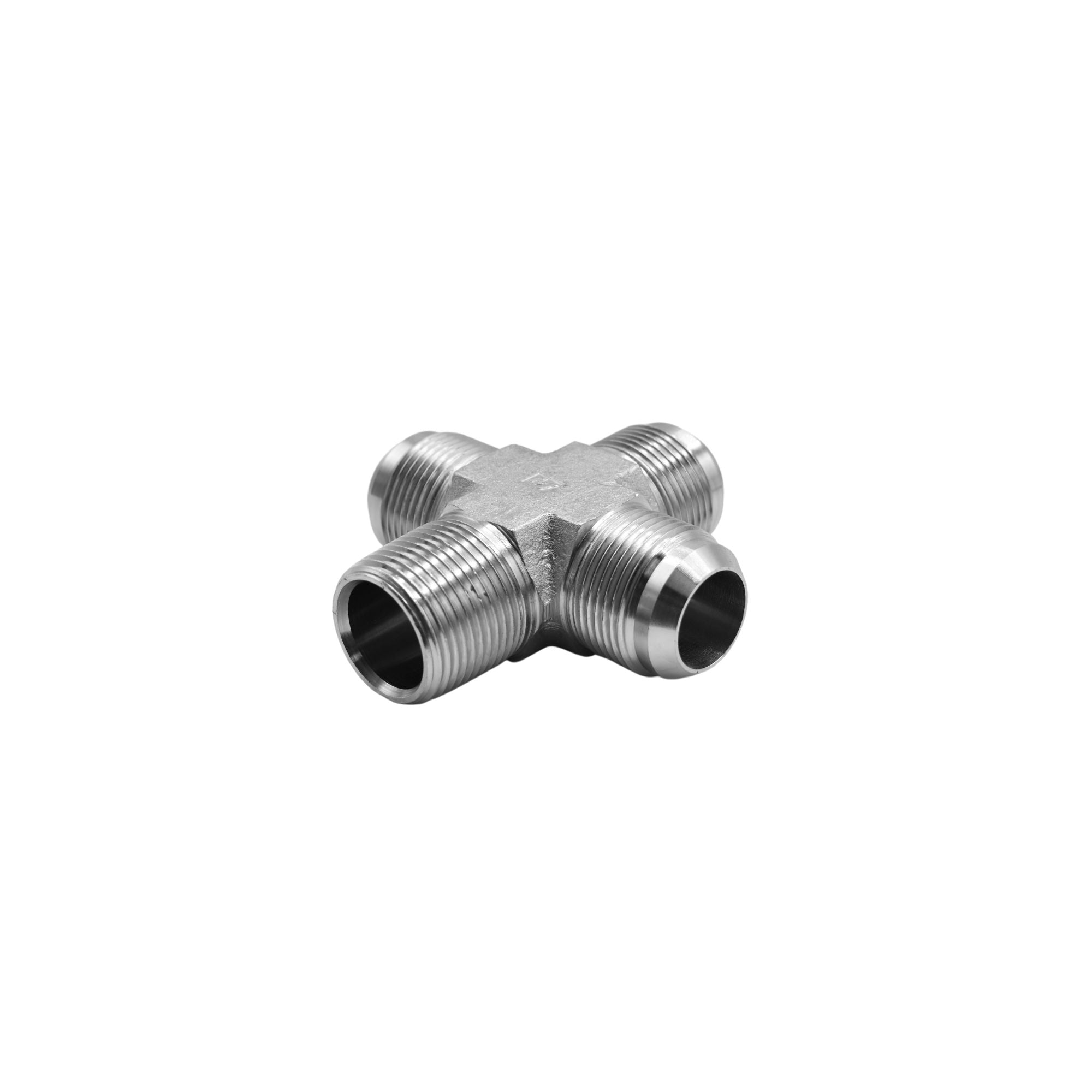

| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.1125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
ID #: 38991
