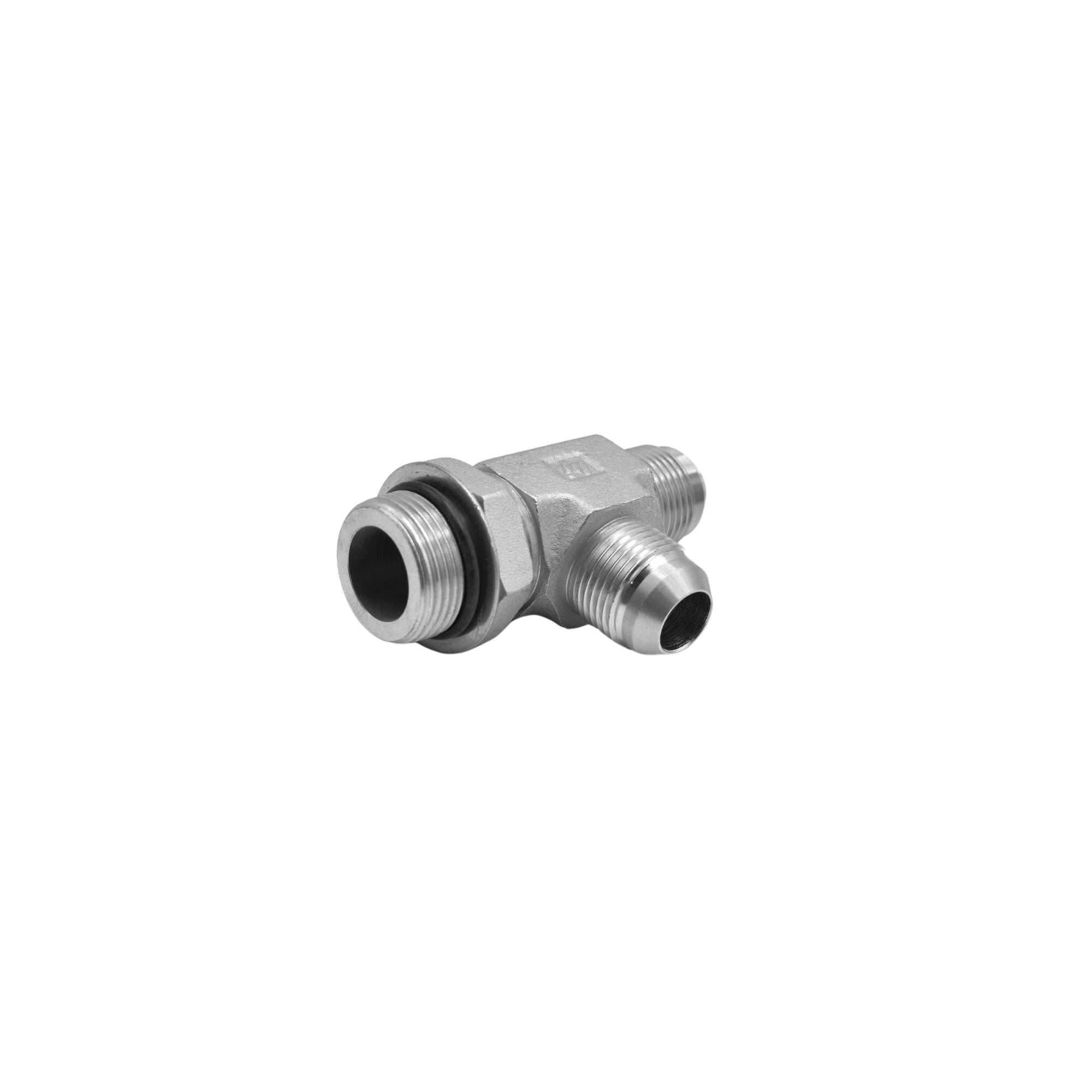

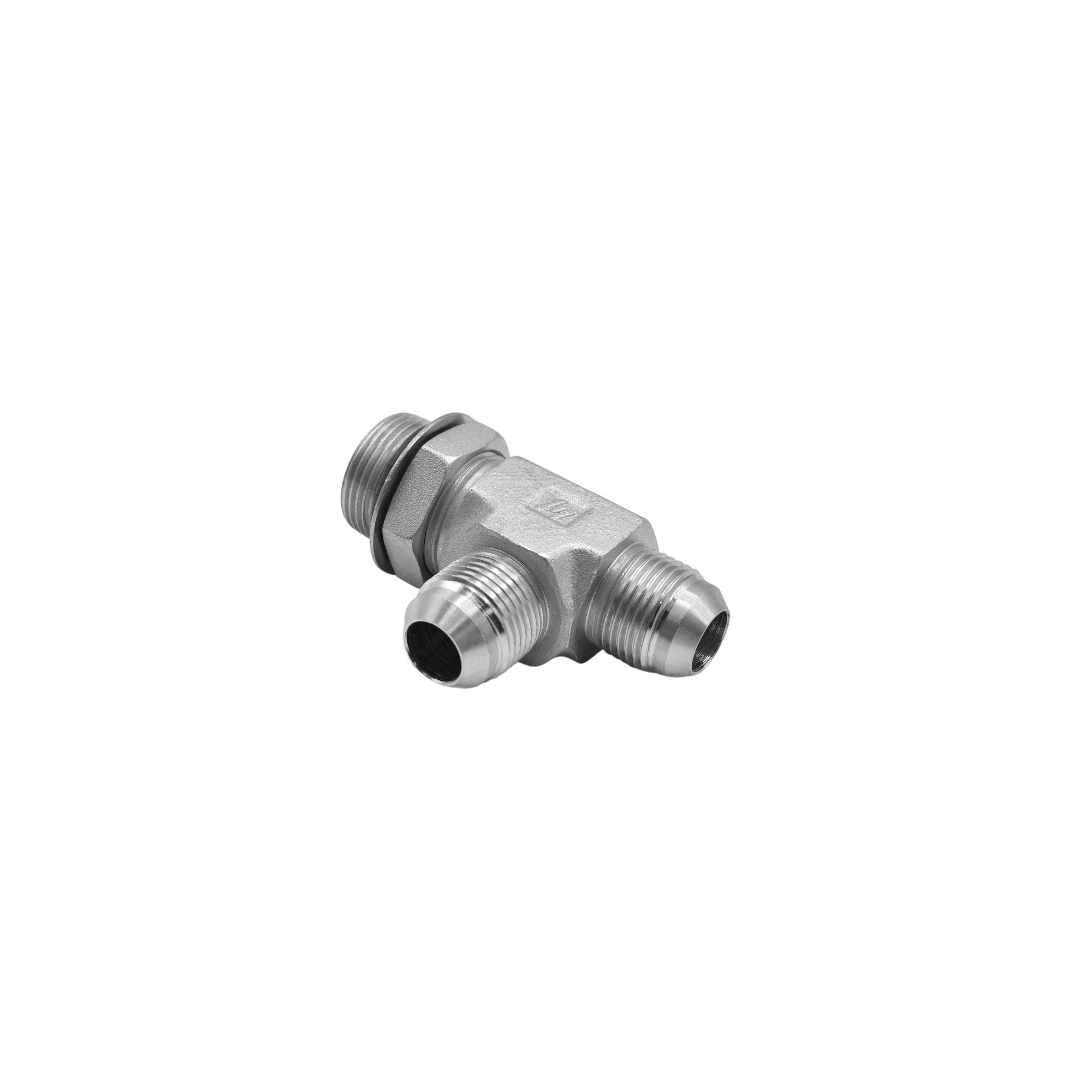

Mfr. Part #: 6804-12-16-12-NWO-FG
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.760 |
| CENTERLINE LENGTH M IN | 1.760 |
| CENTERLINE LENGTH M2 IN | 2.050 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.0812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
ID #: 50913
