Hydraulics | 12MAORB-08FPS 45deg Elb | 6902-12-08-NWO-FG

$25.65

Hydraulics | 12MAORB-08FPS 45deg Elb | 6902-12-08-NWO-FG

Name: Hydraulics | 12MAORB-08FPS 45deg Elb | 6902-12-08-NWO-FG
Brand: BRENNAN INDUSTRIES
SKU: 6902-12-08-NWO-FG
Price: 25.65 USD
Availability: InStock

Mfr. Part #: 6902-12-08-NWO-FG

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Fresno Warehouse

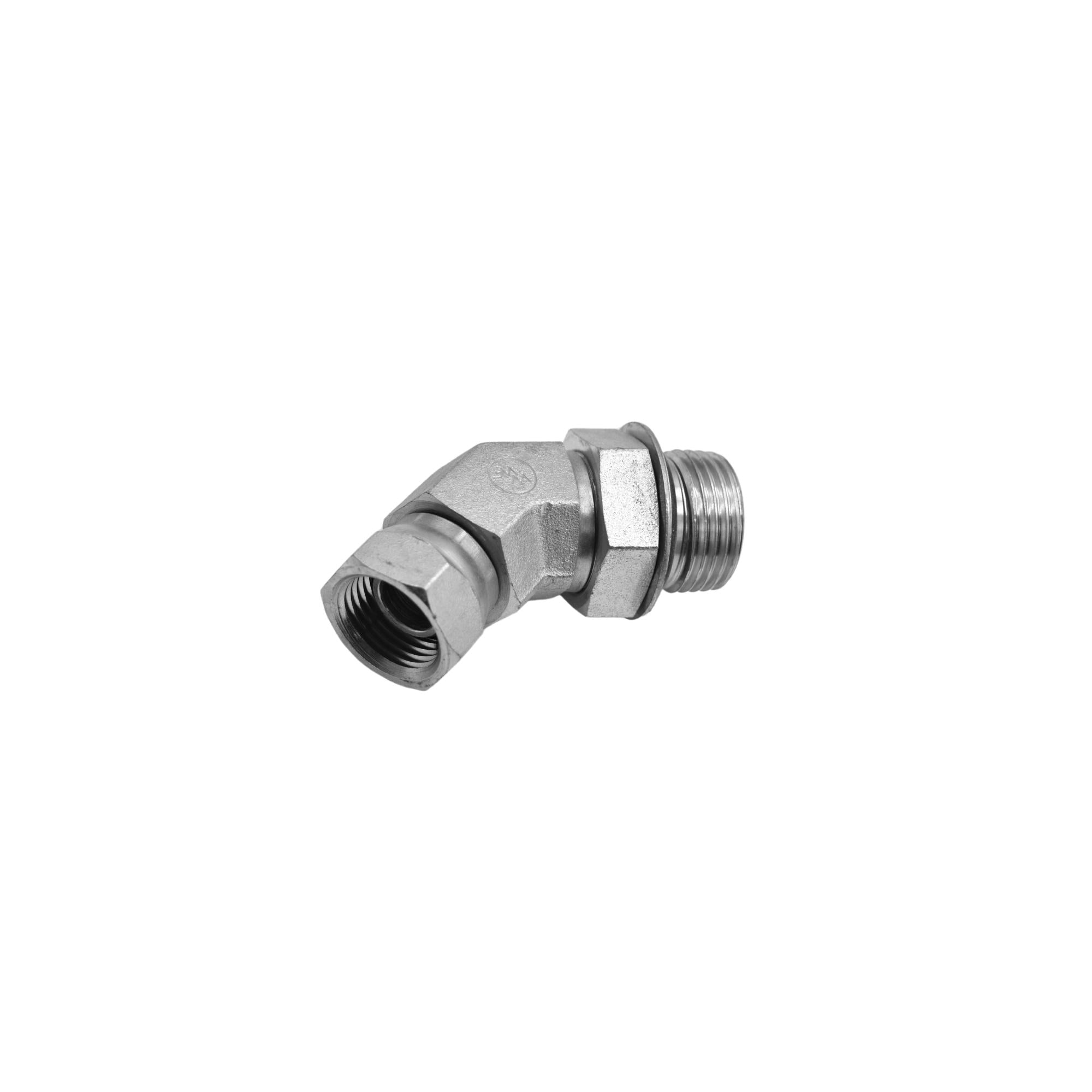

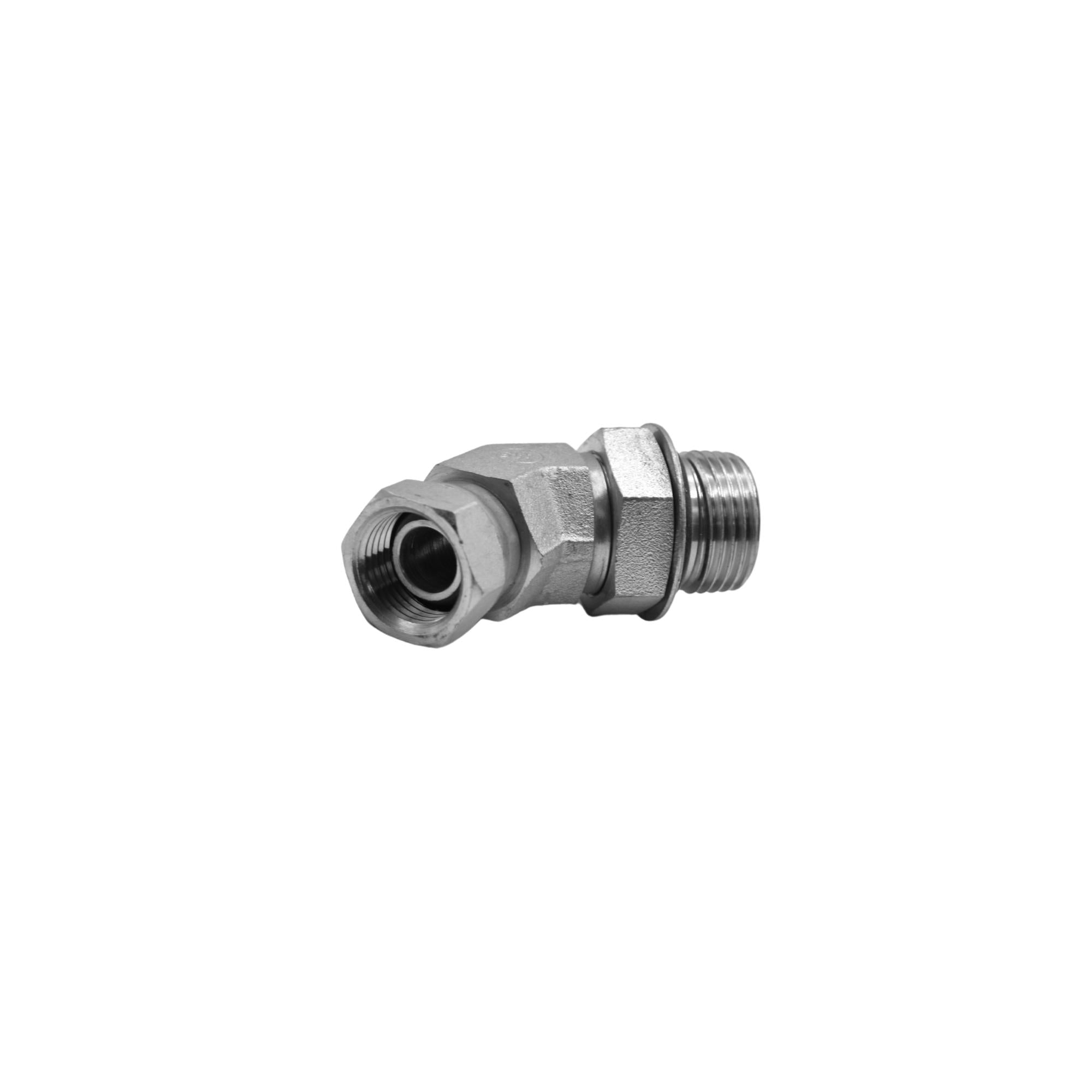

6902-12-08-NWO-FG 45° swivel elbow adapter, 3/4″ ORB x 1/2″ NPSM, forged steel, leak-resistant, ideal for hydraulic system routing.

Key Features:
- Male SAE straight-thread O-Ring Boss (ORB) port—size: ¾-inch (12) with adjustable swivel
- Female pipe swivel port—size: ½-inch NPSM (FPS)
- Swivel and 45° elbow design enables flexible hose routing after installation
- Forged steel construction with zinc plating for high-strength, corrosion resistance
- Rated for medium- to high-pressure hydraulic systems (up to ~3500 psi)
- Meets SAE J514 dimensional and performance standards
- Compact and robust, ideal for harsh environments

Typical Applications:
- Hydraulic line routing in mobile and industrial machinery
- Leak-resistant connections in fluid-power systems
- Tight-space installations requiring adjustable alignment
- High-pressure hydraulic systems in construction or agricultural equipment
- Systems needing durable, corrosion-resistant connectors in hydraulic circuits

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.300
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5625
