Mfr. Part #: 6660-10-10-10-FG
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD B1 TYPE | FEMALE SAE O-RING BOSS |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE SAE O-RING BOSS |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE SAE O-RING BOSS |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 1.180 |
| CENTERLINE LENGTH M IN | 1.180 |
| CENTERLINE LENGTH M2 IN | 1.180 |

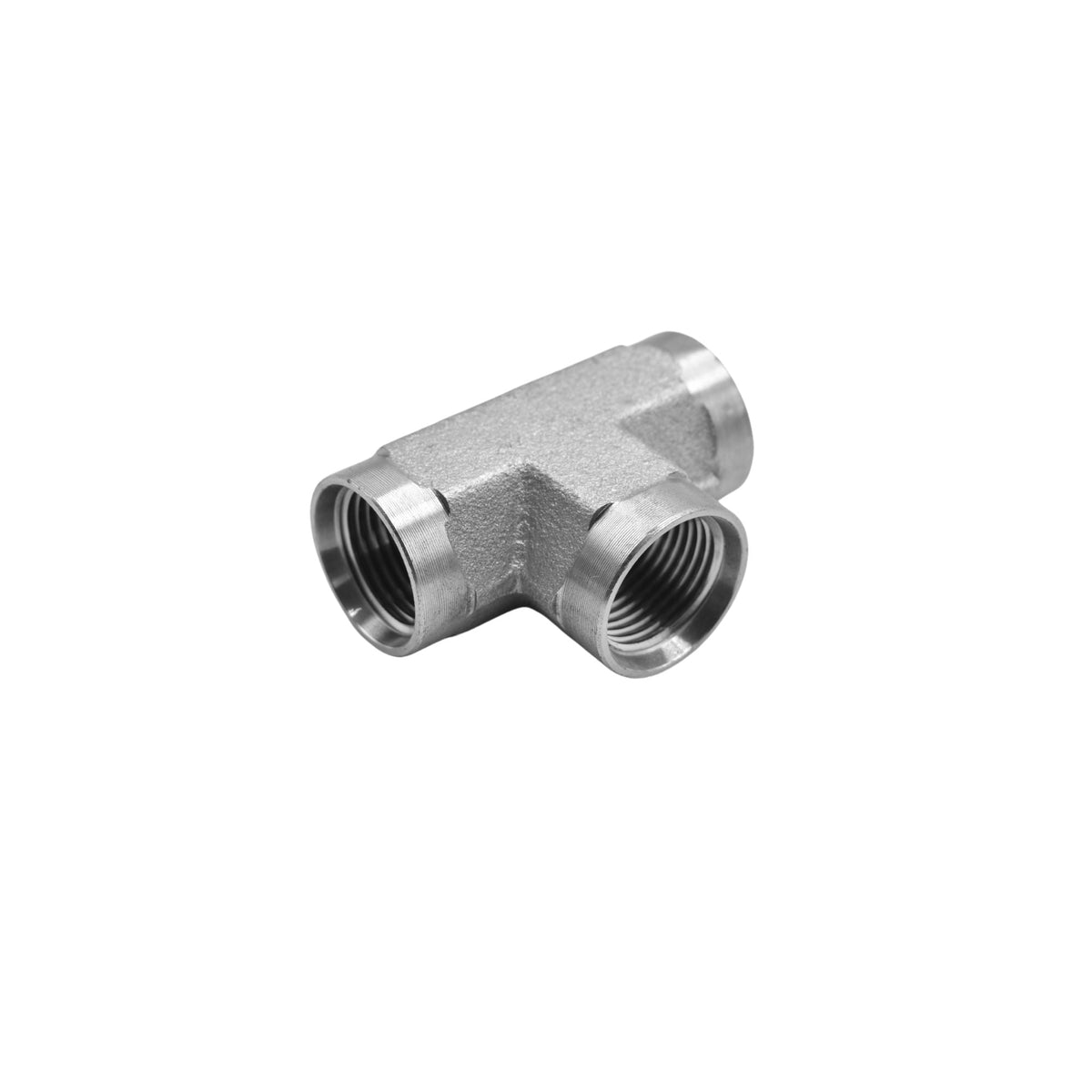

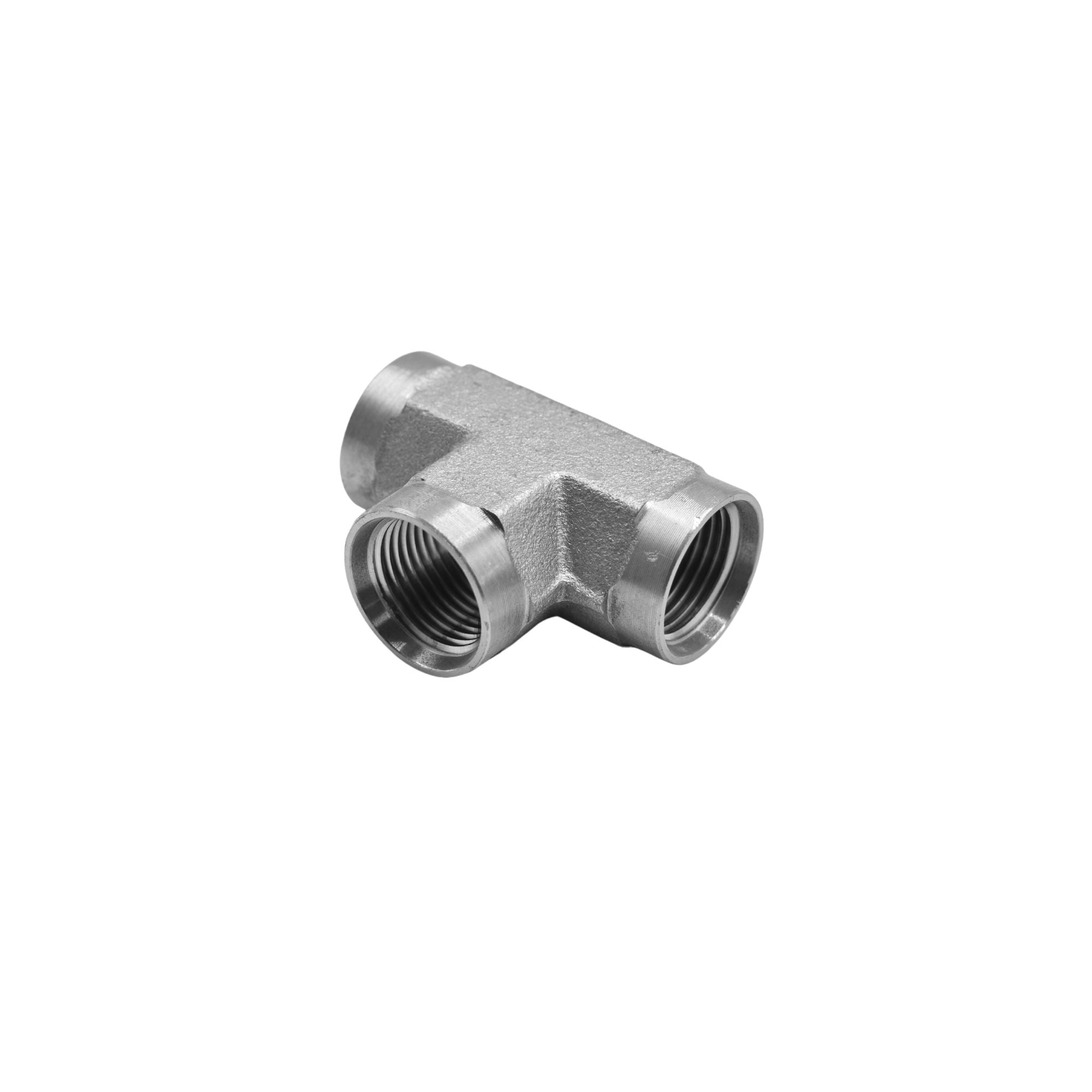

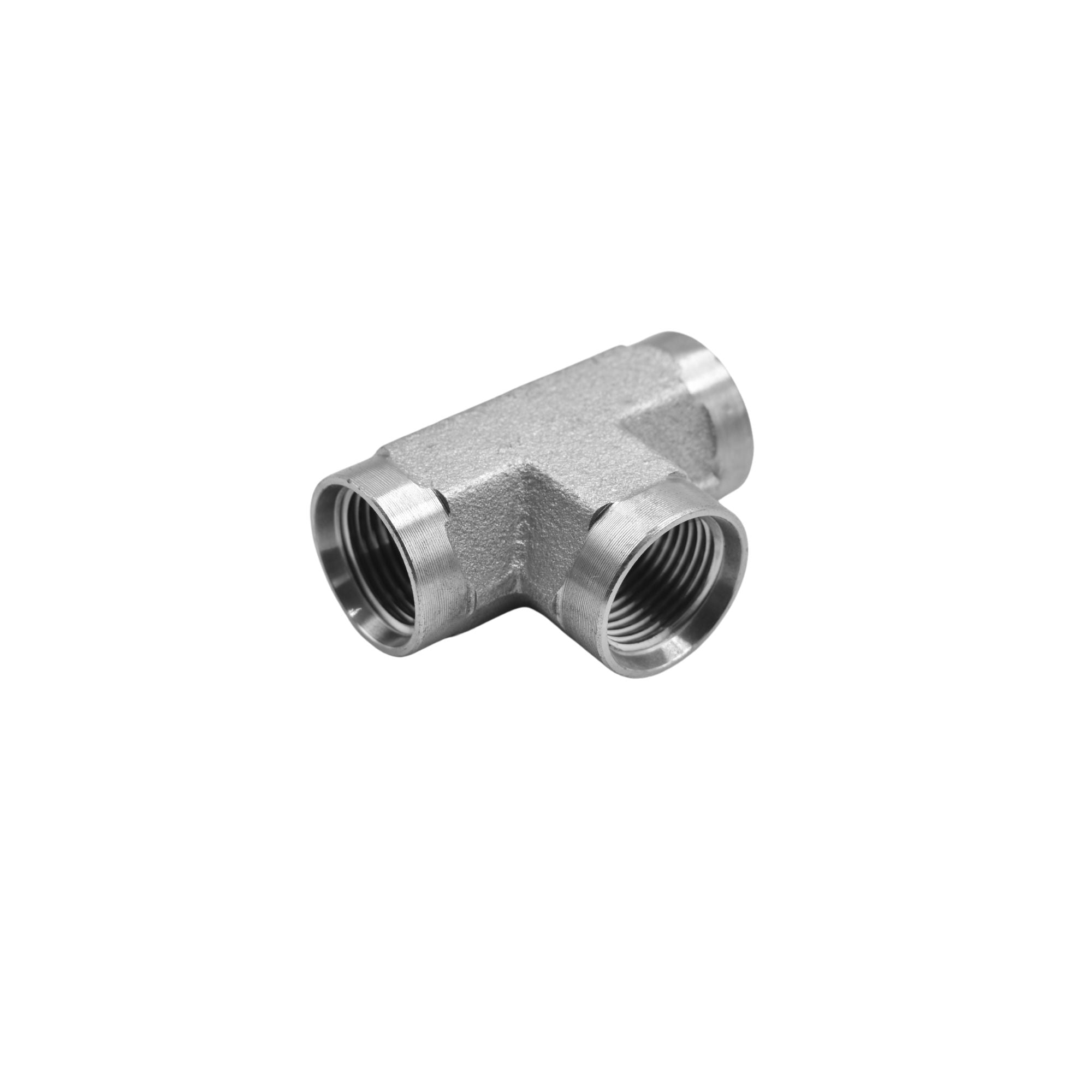

| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
ID #: 183487
