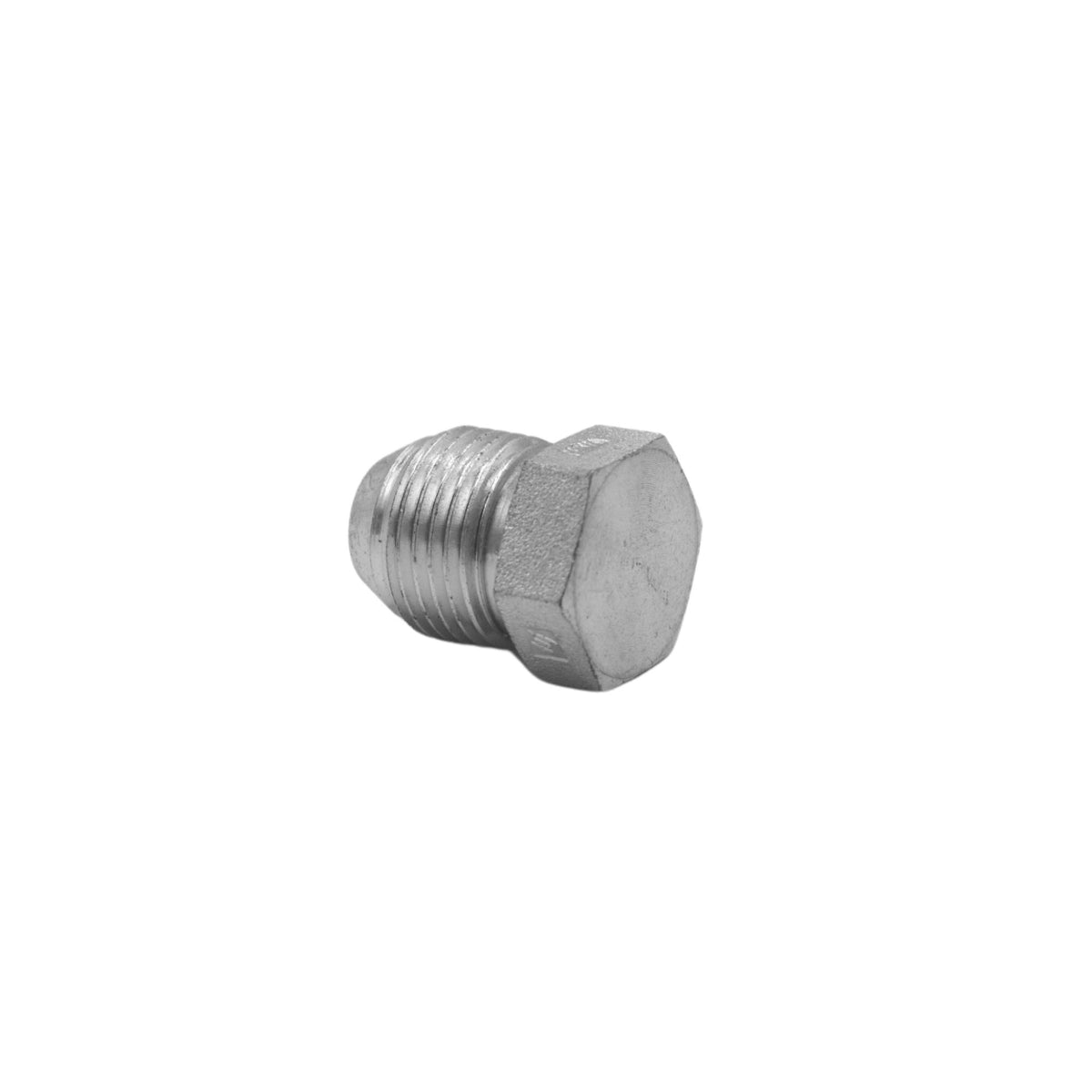

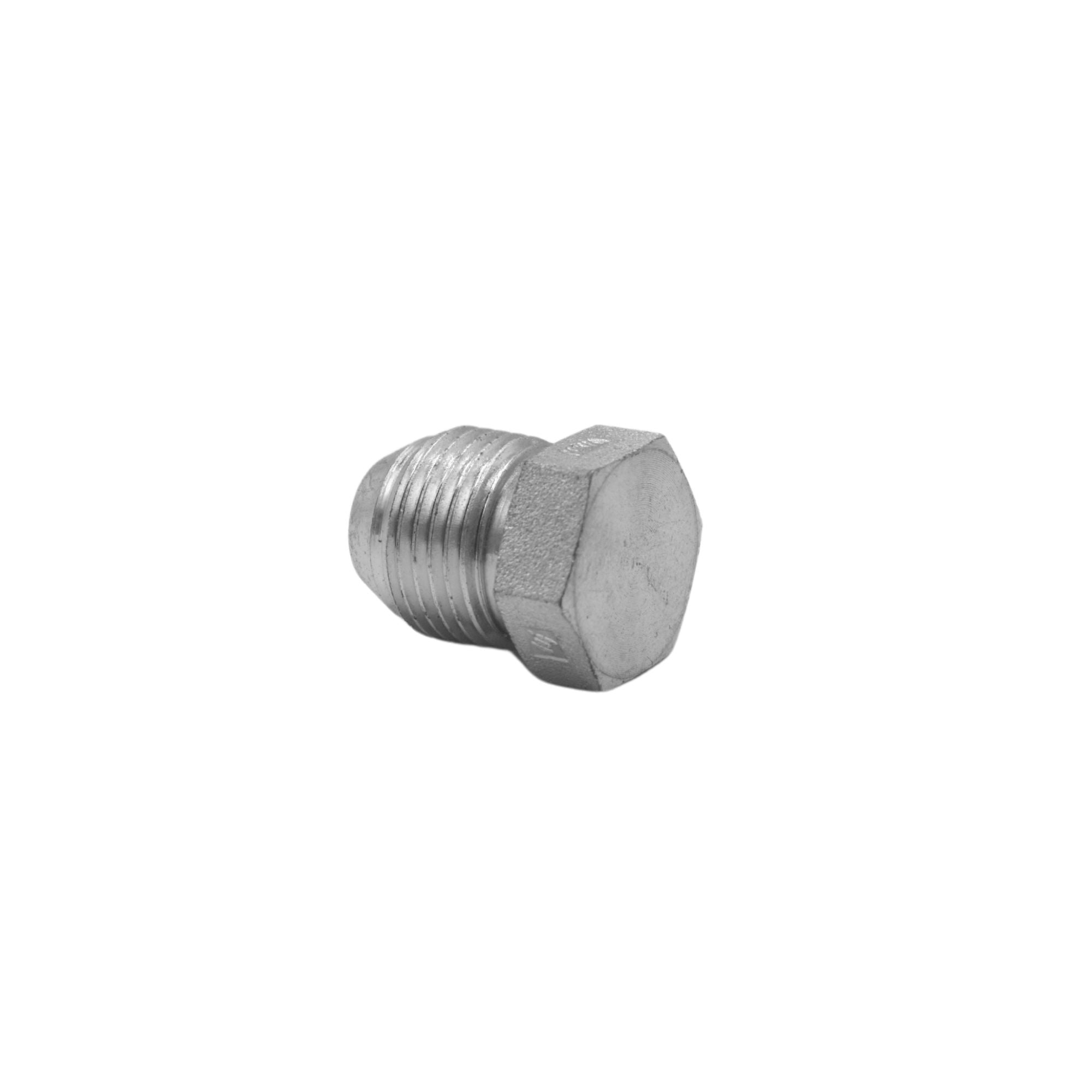

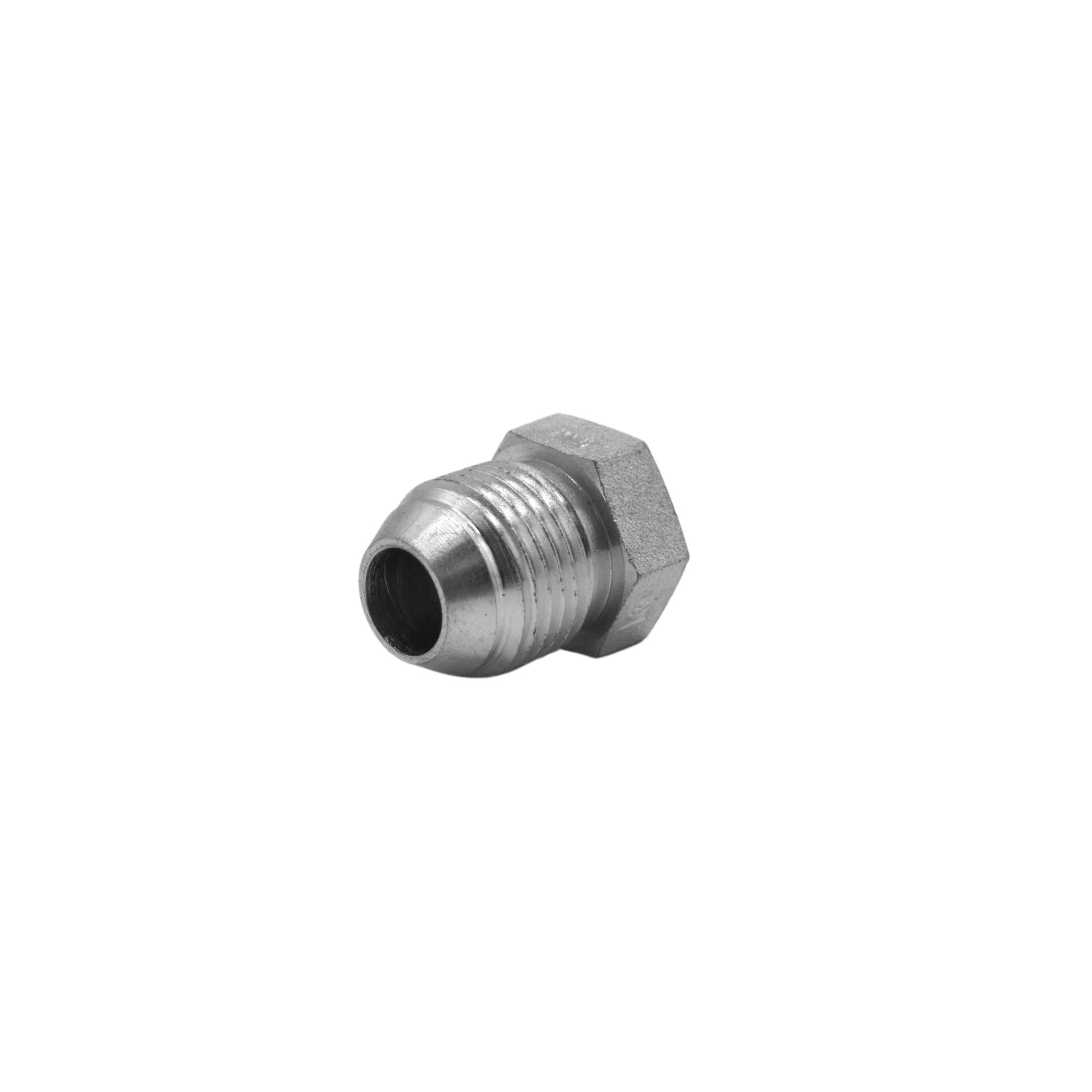

Mfr. Part #: 7588-P-08
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B1 | 1/2-14 |
| THREAD DRILL B1 (MM) | 11.0 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 28.0 |
| OVERALL LENGTH W (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.125 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.827 |
ID #: 36219
