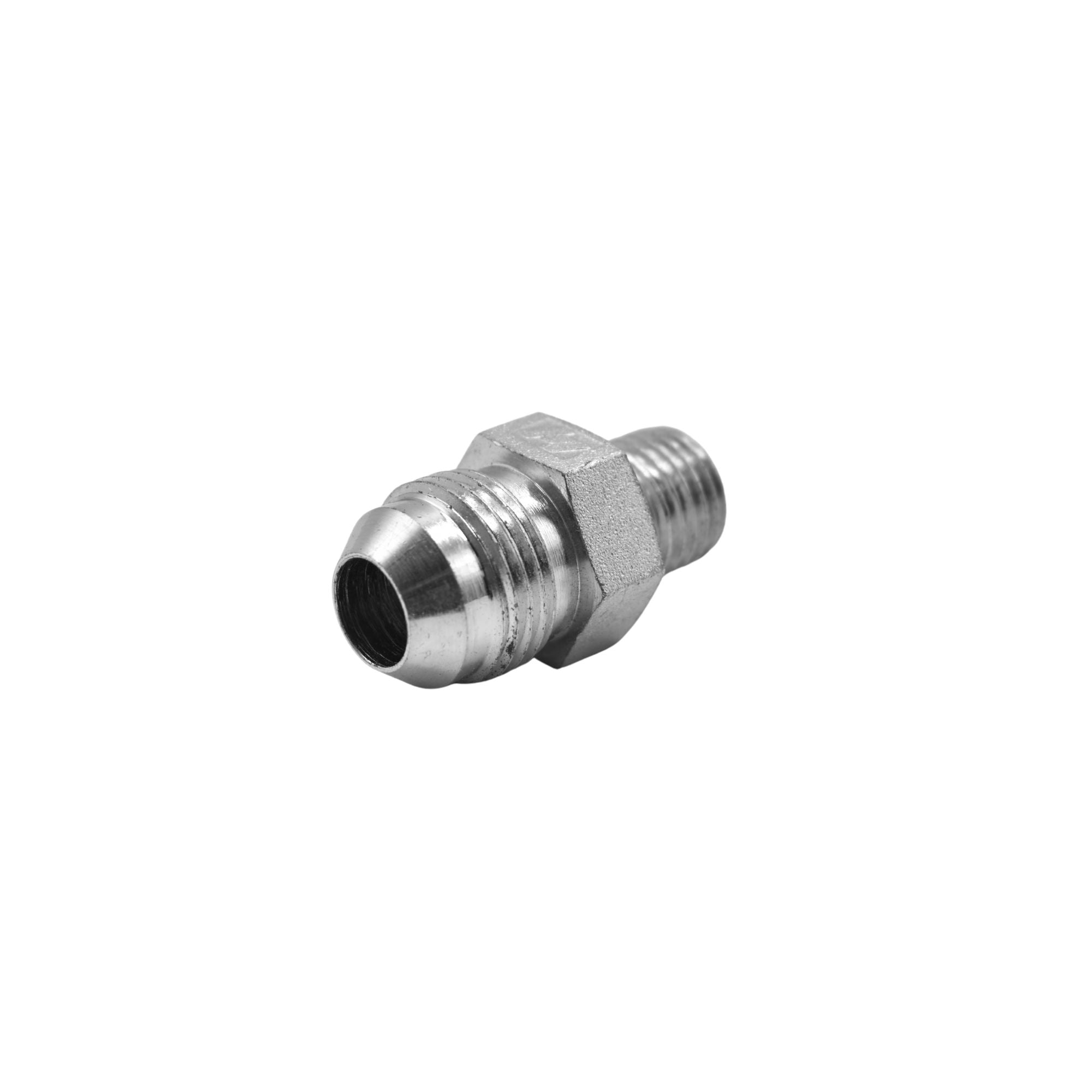

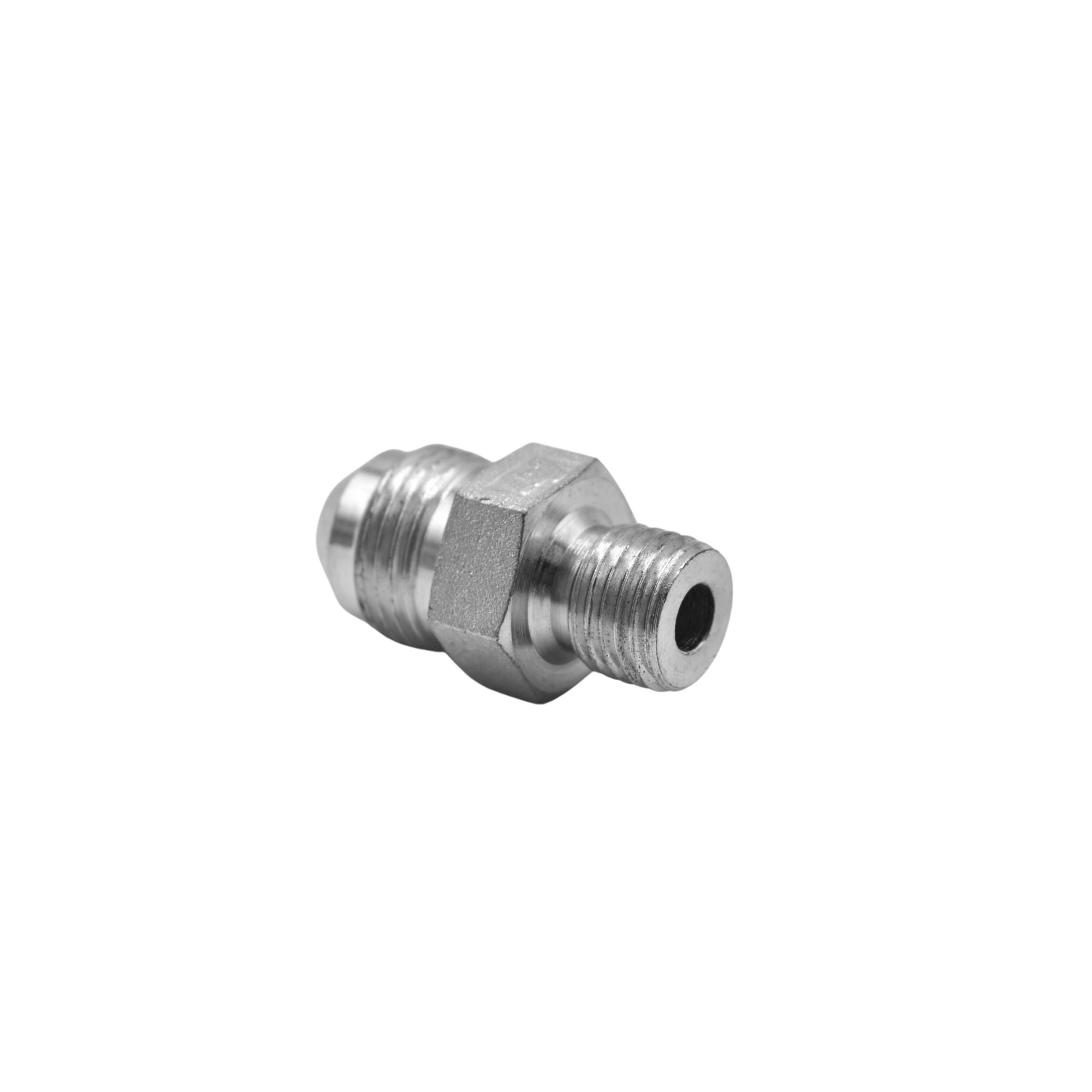

Mfr. Part #: 7005-08-14
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 20.0 |
| OVERALL LENGTH L (MM) | 37.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.119 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.915 |
ID #: 36189
