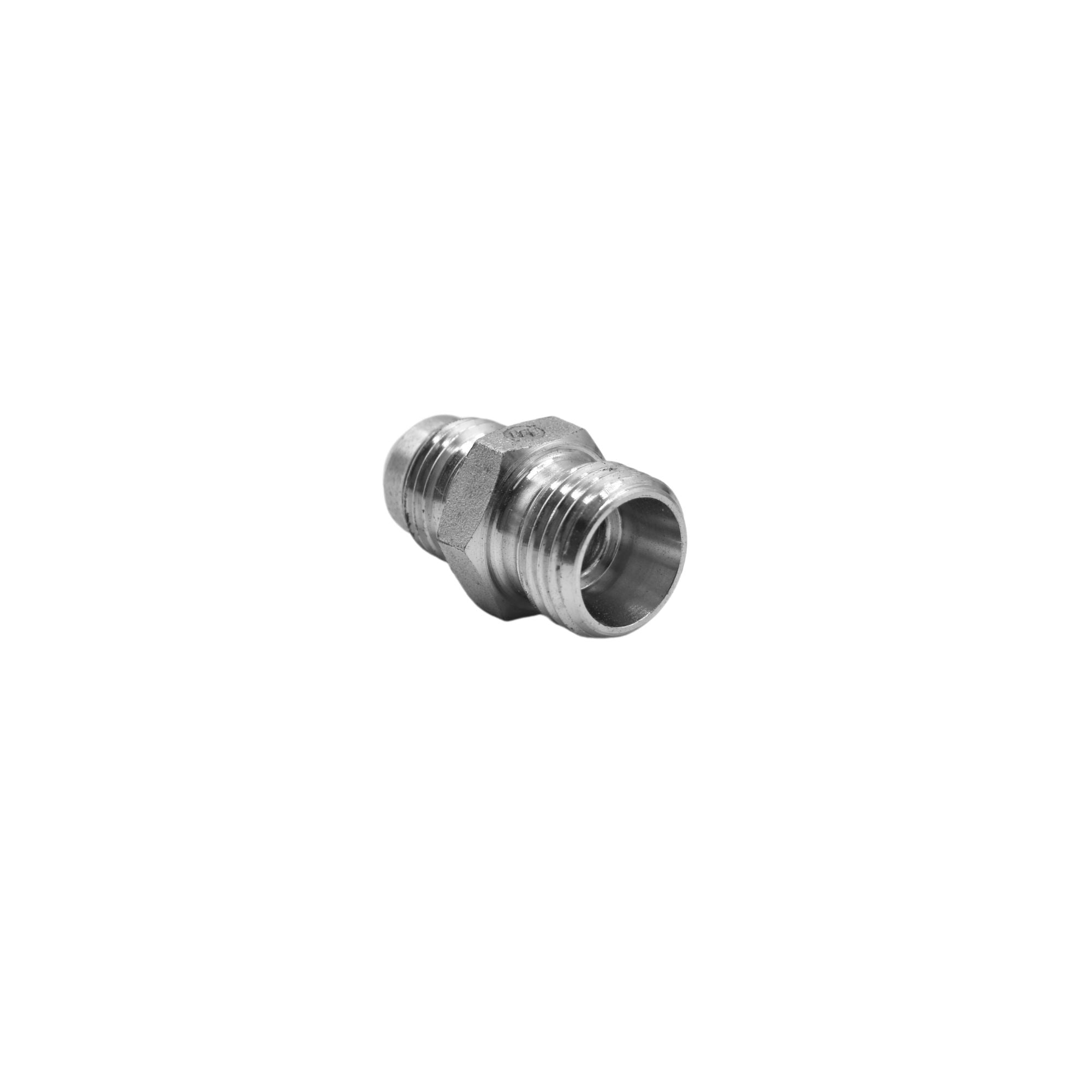

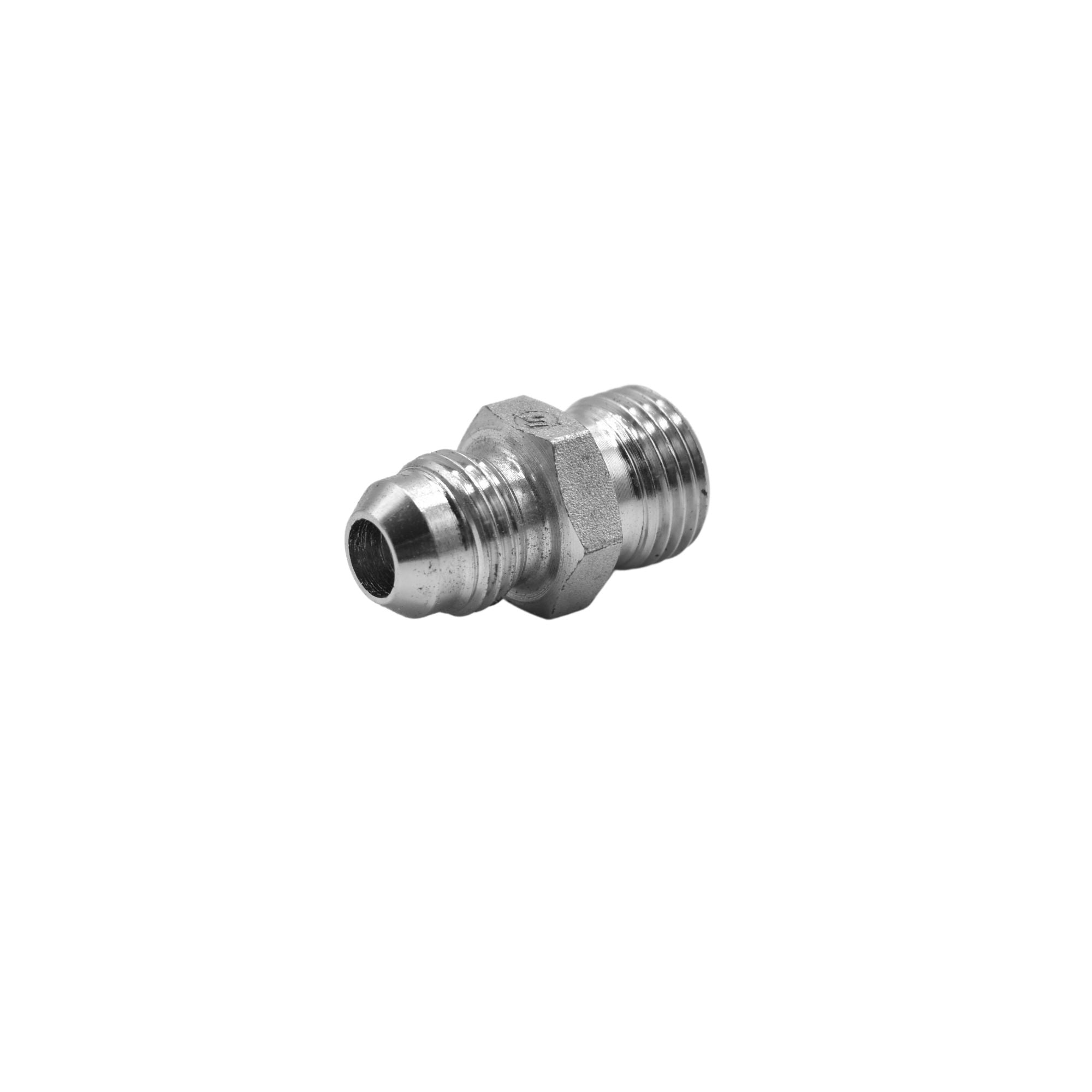

Mfr. Part #: 7005-06-16
ID #: 35030
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.106 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.004 |
