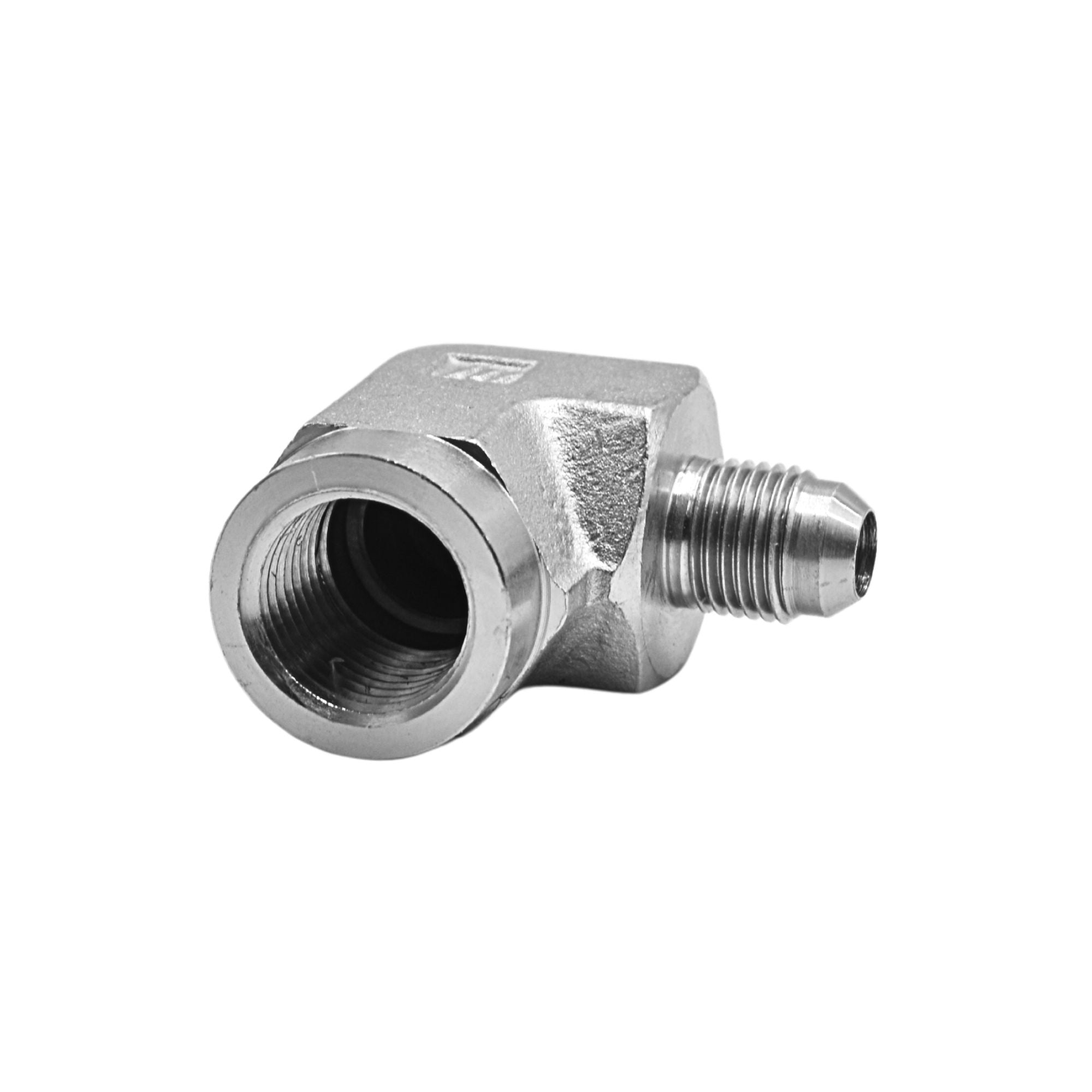

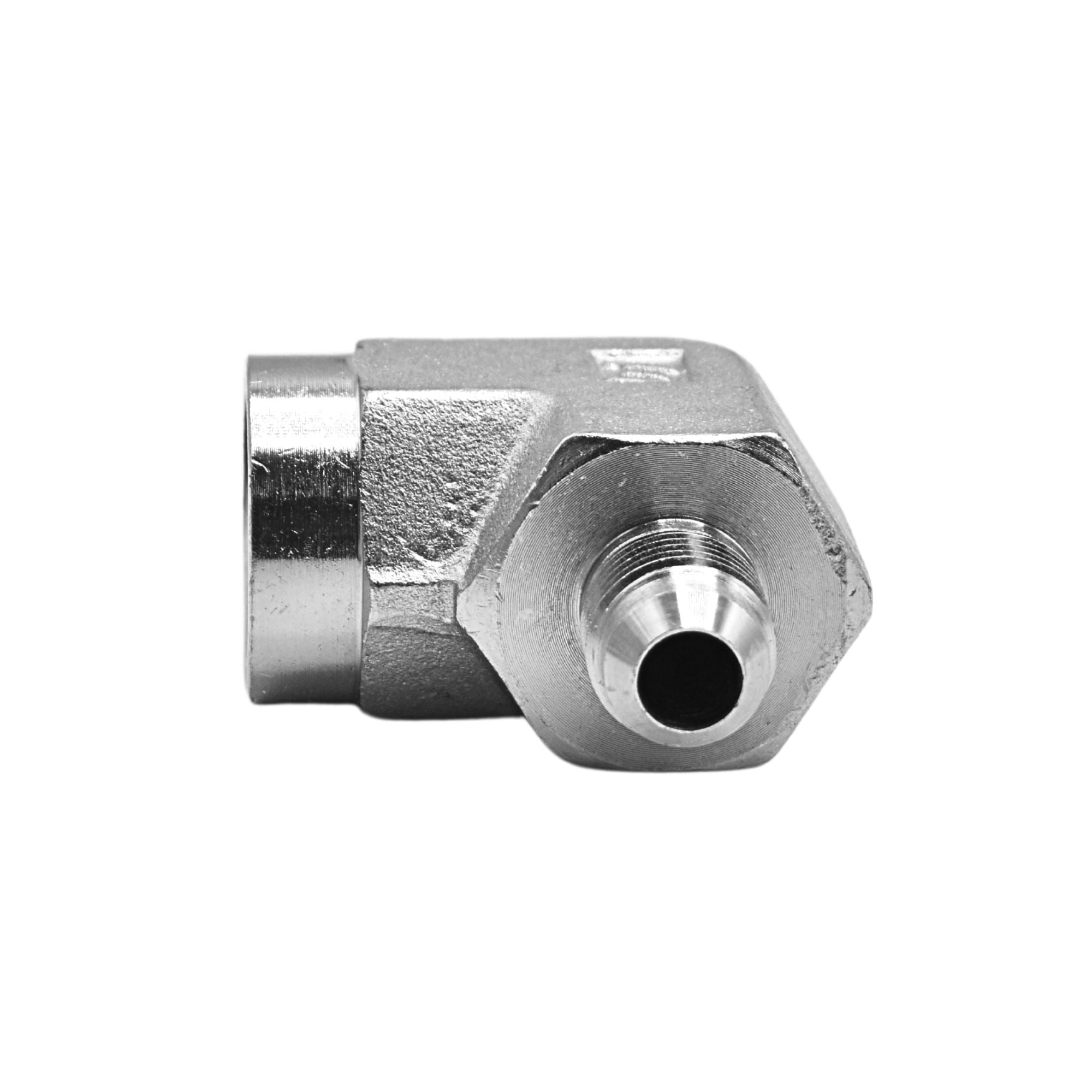

Mfr. Part #: 2502-06-08-FG
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| Quantity | Discount | Part Price |
|---|---|---|
| >10 pieces | 10.0 % | $11.30 |
ID #: 202169
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.410 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.433 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.63 |
