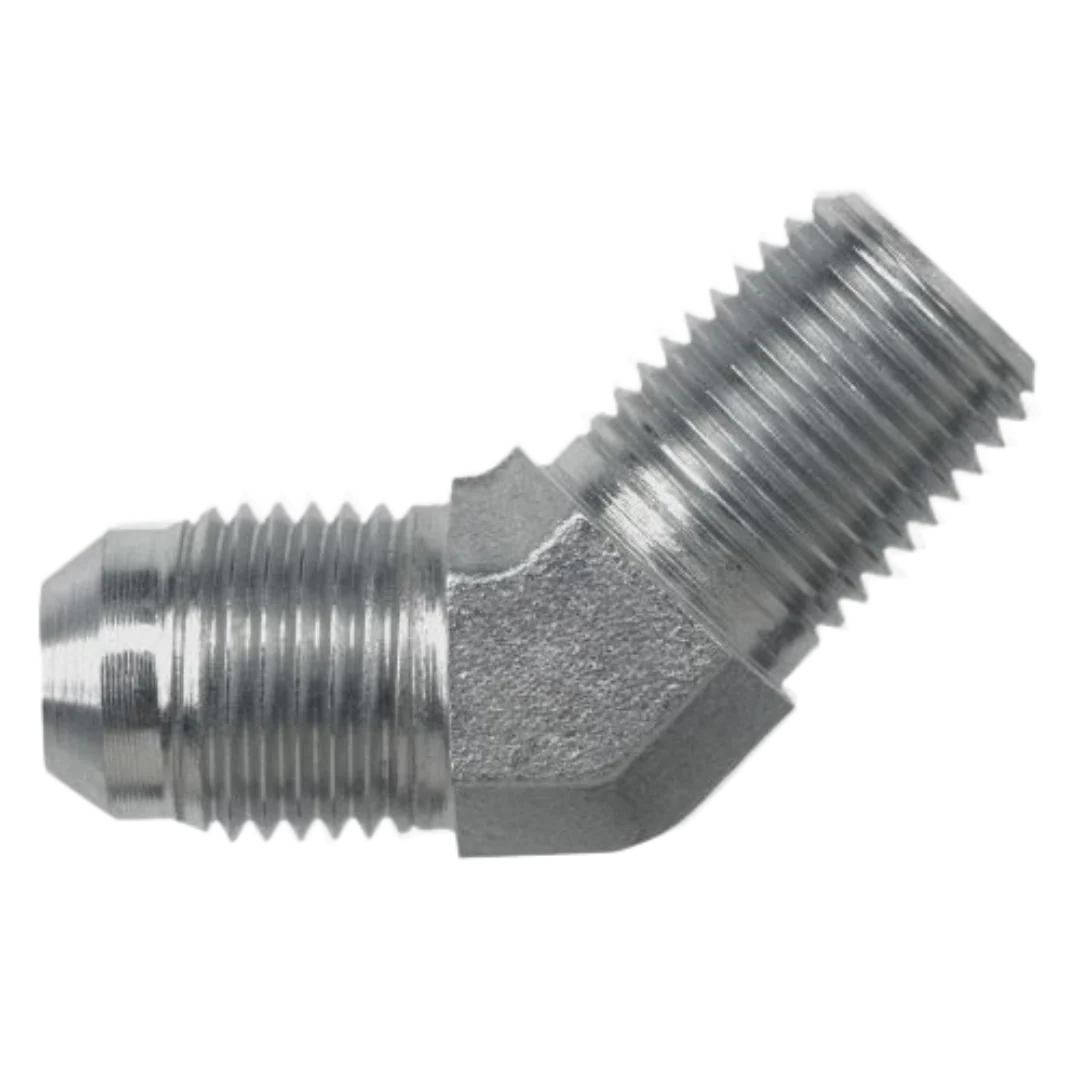

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 9/16-18 |
THREAD B1 DRILL IN | 0.297 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | MALE NPTF |
THREAD B2 SIZE | 1/4-18 |
THREAD B2 DRILL IN | 0.281 |
THREAD B2 SPECIFICATION | SAE J476 |
BODY HEX IN | 0.562 |
OVERALL LENGTH L IN | 0.860 |
CENTERLINE LENGTH M IN | 0.830 |
SHAPE | 45 DEGREE |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STEEL FORGING |
PLATING | CR3 |
WEIGHT LBS | 0.072 |
MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
CALIFORNIA RESIDENTS | PROP-65 WARNING |
CUBIC INCH SPACE L X W X H | 1.084 |
