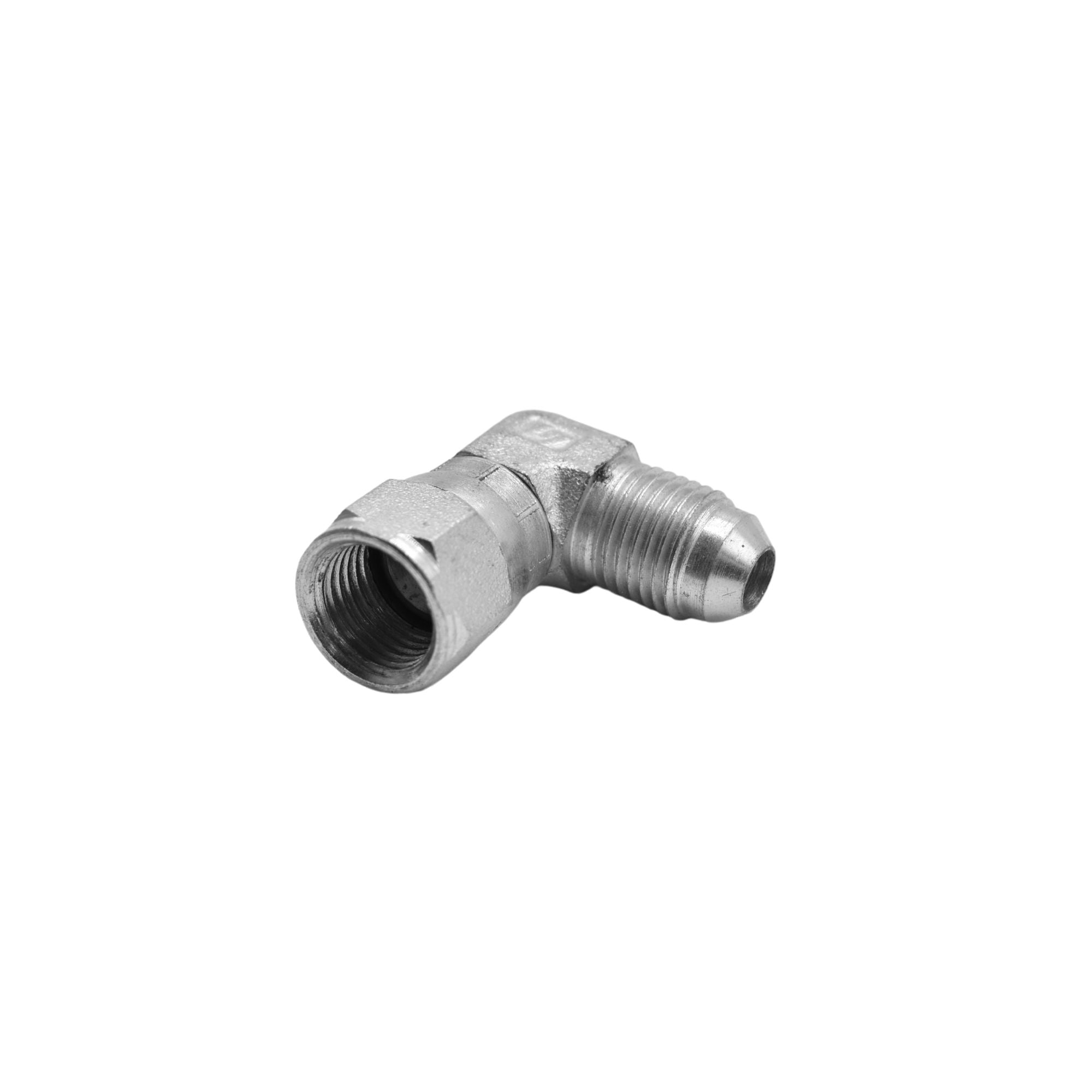

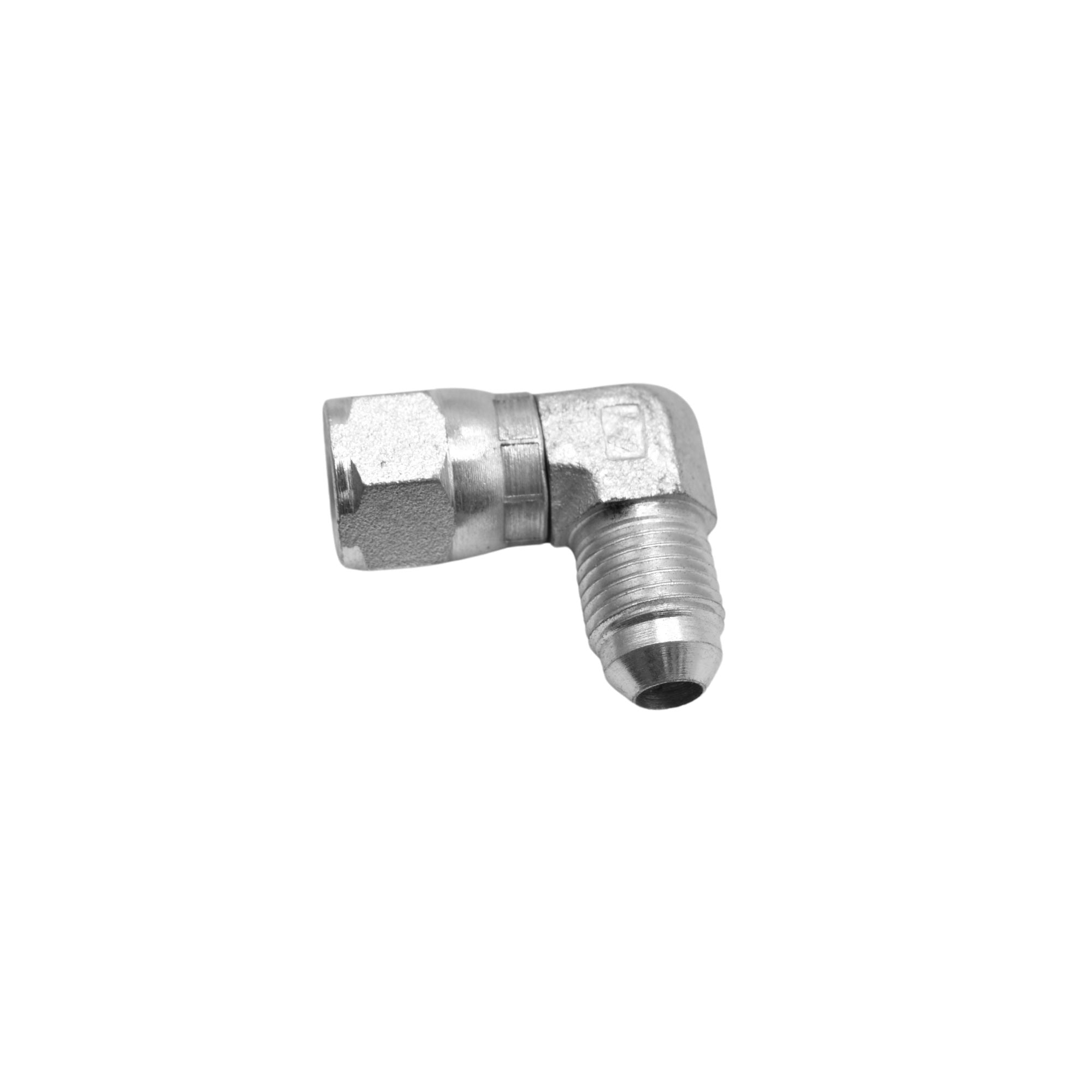

Mfr. Part #: 6500-05-05-FG
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 1.060 |
| OVERALL LENGTH L2 IN | 0.678 |
| CENTERLINE LENGTH M IN | 0.950 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
ID #: 34029
