Mfr. Part #: JP-NV-SAE6
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

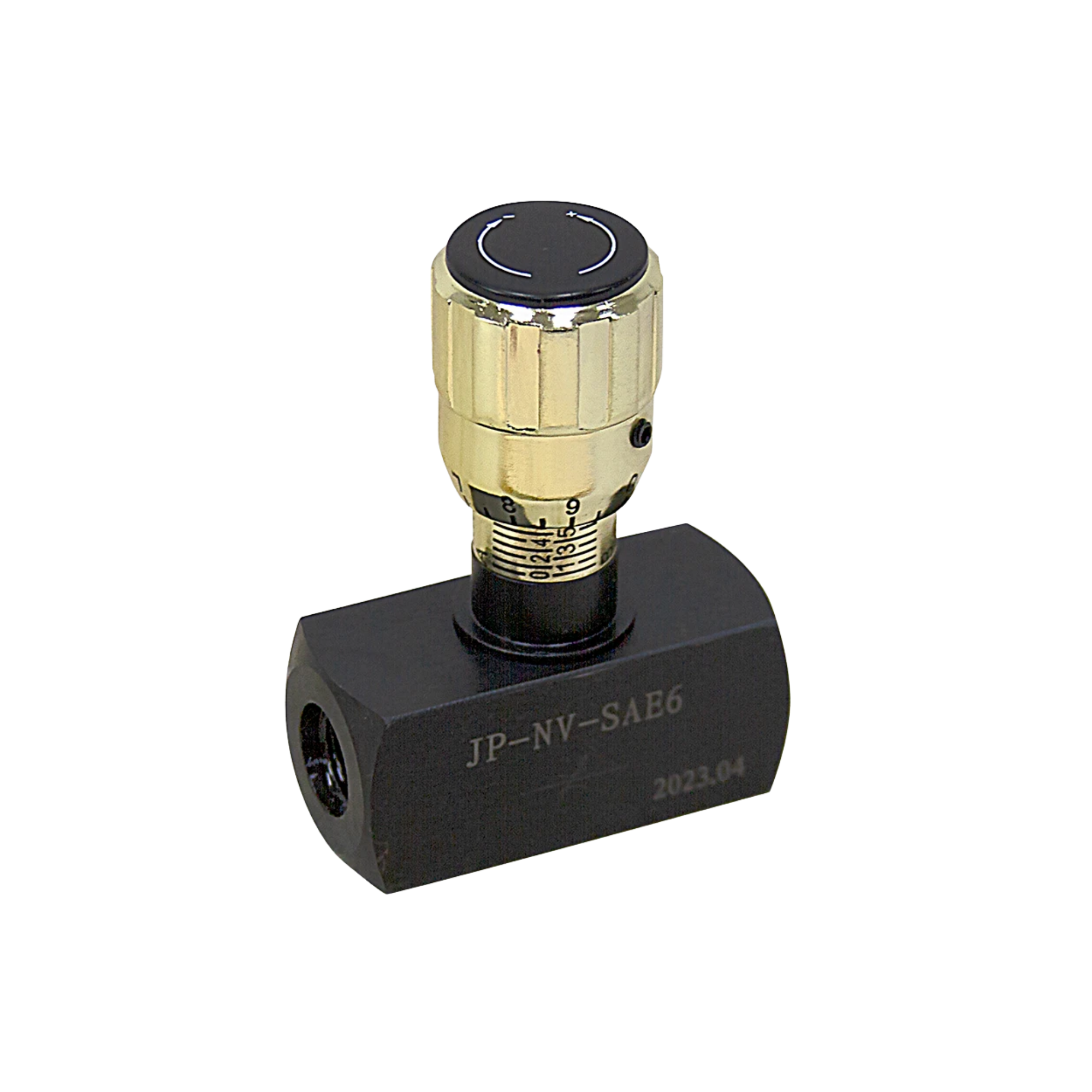

The Dynamic Fluid Components JP-NV-SAE6 is an adjustable hydraulic needle valve designed for precise control of fluid flow in industrial and mobile hydraulic systems. Its micrometer adjustment knob allows fine flow adjustments, while the built-in locking screw helps maintain the selected setting during operation. Constructed from carbon steel with a black oxide finish, this in-line needle valve features 3/8-inch SAE O-ring boss connections and a maximum pressure rating of 5,000 PSI. It meters fluid flow in both directions, making it suitable for applications that require controlled hydraulic flow and adjustable operating speeds.
| Manufacturer | Dynamic Fluid Components |
| Part Number | JP-NV-SAE6 |
| Valve Type | Adjustable Hydraulic Needle Valve |
| Connection Type | 3/8-inch SAE O-Ring Boss (ORB) |
| Maximum Pressure | 5,000 PSI |
| Flow Control | Metered Flow in Both Directions |
| Body Material | Carbon Steel |
| Body Finish | Black Oxide |
| Handle Material | Zinc Alloy |
| Stem Packing | Buna O-Ring / PTFE |
| Locking Mechanism | Allen-Head Locking Screw |
| Operating Temperature | -4°F to 176°F (-20°C to 80°C) |
| Weight | 0.90 lb |
ID #: 223579
