Mfr. Part #: BMPH-100-H2-K-P
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

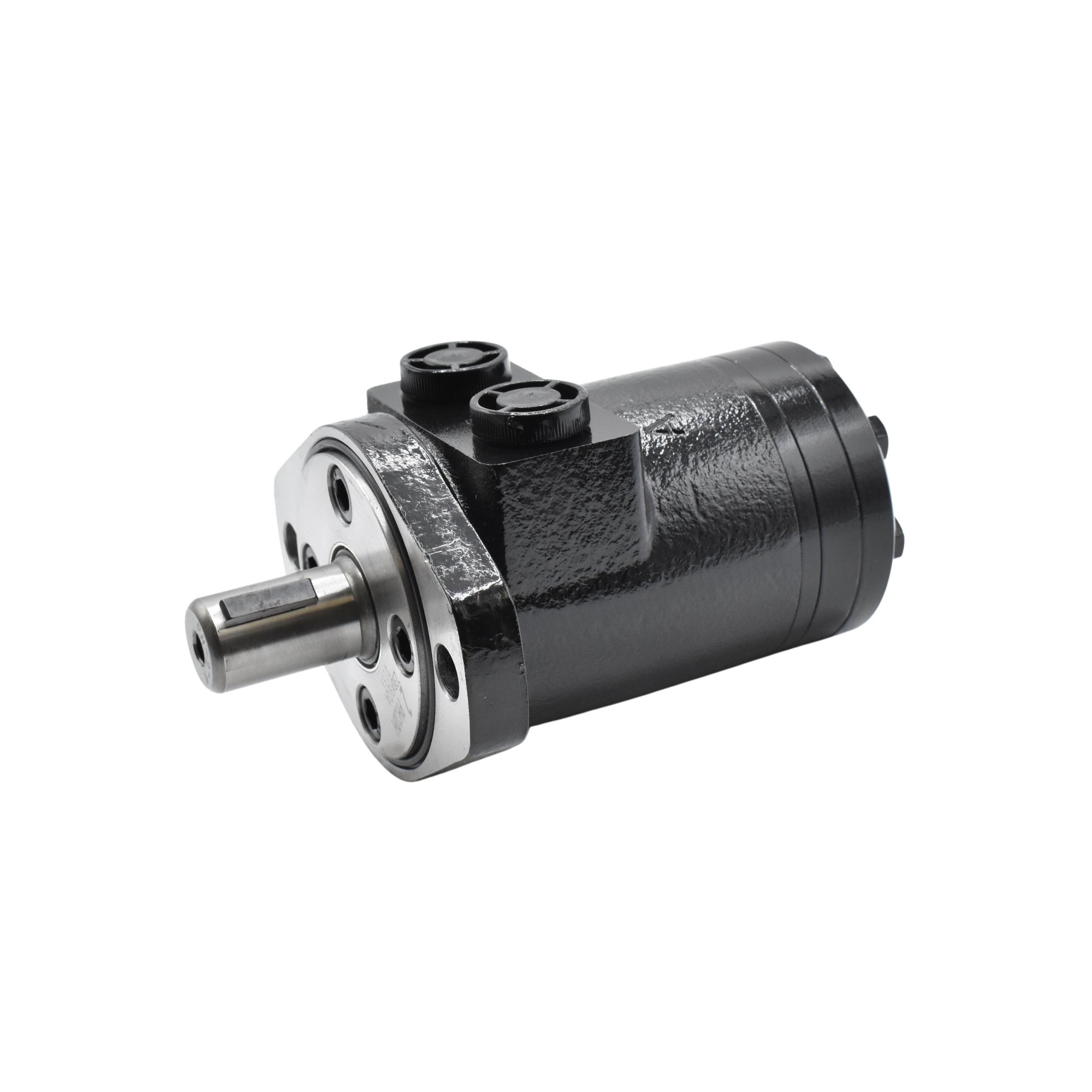

The Dynamic Fluid Components BMPH-100-H2-K-P is a low-speed, high-torque hydraulic motor designed for industrial and mobile hydraulic drive applications. Featuring a 96.2 cc/rev displacement and a Rotortorc™ gear design, this motor delivers up to 1,611 in-lb of continuous torque at speeds up to 615 RPM. Its SAE A two-bolt mounting flange, 1-inch Woodruff-keyed shaft, and 1/2-inch NPTF ports allow integration into a variety of hydraulic systems. Designed for parallel or series circuit operation, the BMPH-100 provides dependable rotary power for equipment requiring controlled speed and high torque.
| Manufacturer | Dynamic Fluid Components |
| Part Number | BMPH-100-H2-K-P |
| Motor Type | Low-Speed, High-Torque Hydraulic Motor |
| Gear Design | Rotortorc™ |
| Displacement | 96.2 cc/rev (5.87 in³/rev) |
| Maximum Continuous Speed | 615 RPM |
| Maximum Intermittent Speed | 770 RPM |
| Maximum Continuous Torque | 1,611 in-lb |
| Maximum Intermittent Torque | 2,009 in-lb |
| Maximum Continuous Differential Pressure | 2,031 PSI |
| Maximum Intermittent Differential Pressure | 2,538 PSI |
| Maximum Continuous Flow | 15.85 GPM |
| Maximum Intermittent Flow | 19.82 GPM |
| Mounting | SAE A 2-Bolt Flange |
| Shaft | 1-inch Woodruff-Keyed Shaft |
| Ports | 1/2-inch NPTF |
| Weight | 14.45 lb |
ID #: 223539
