Mfr. Part #: BMRS-160-H2-K-S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 152127

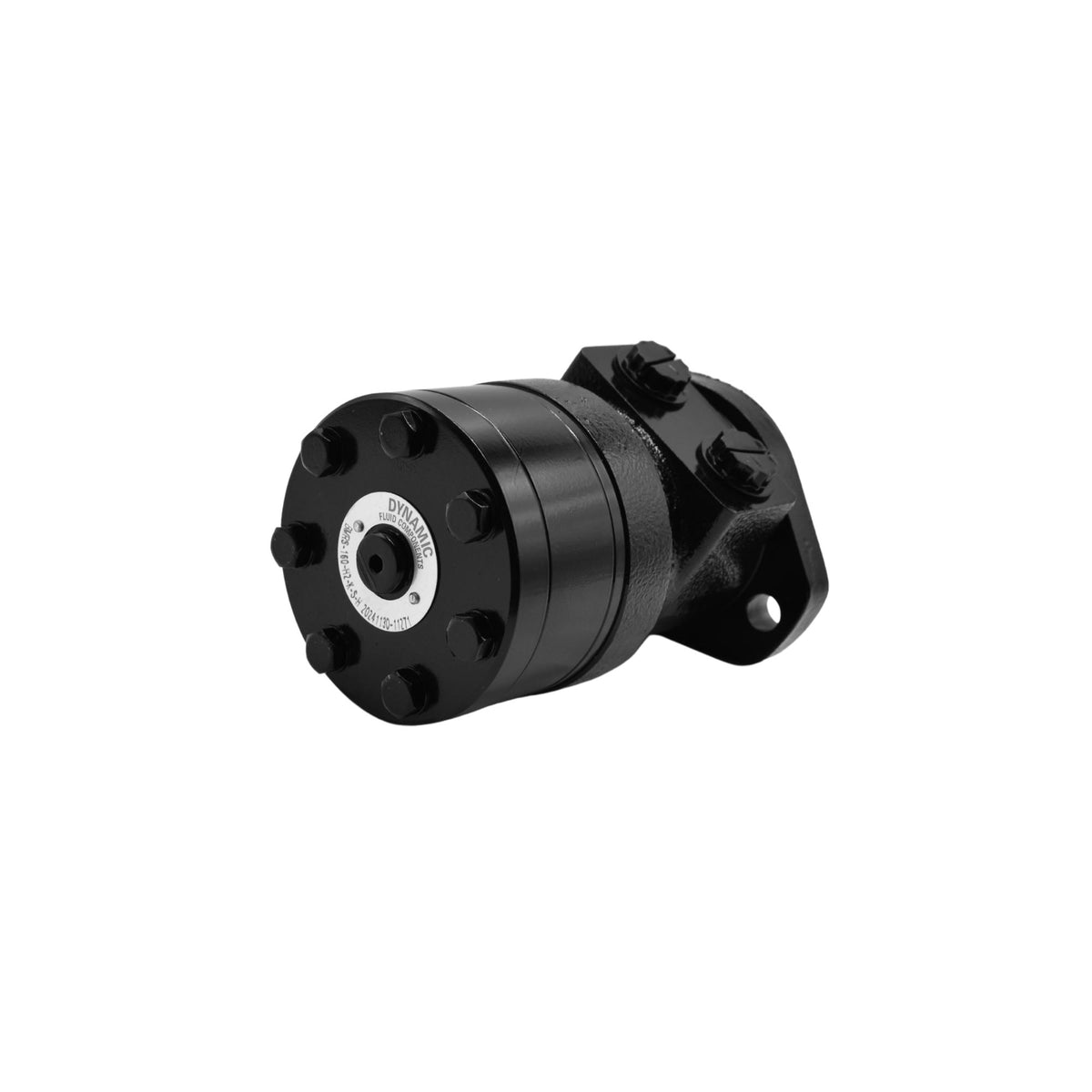

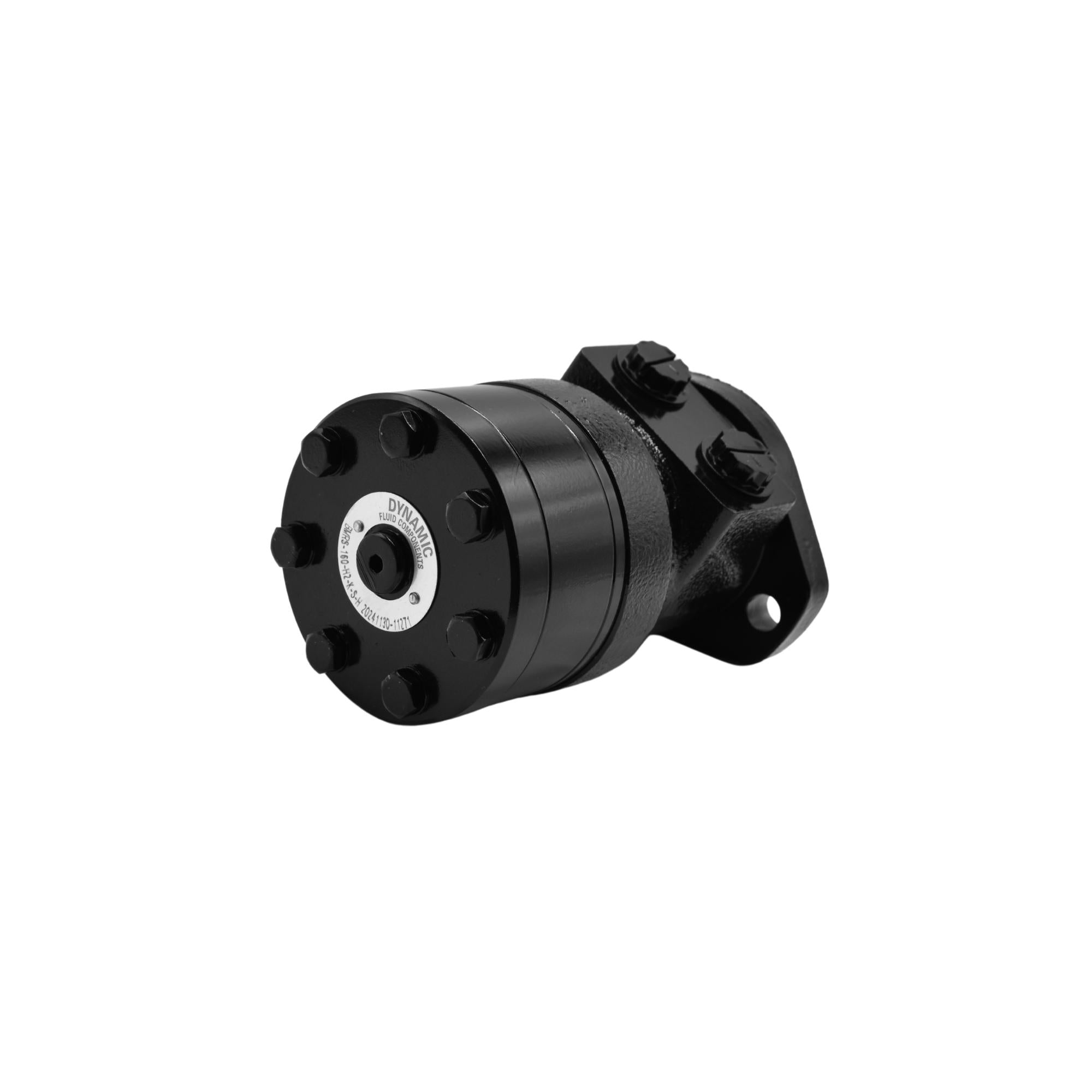

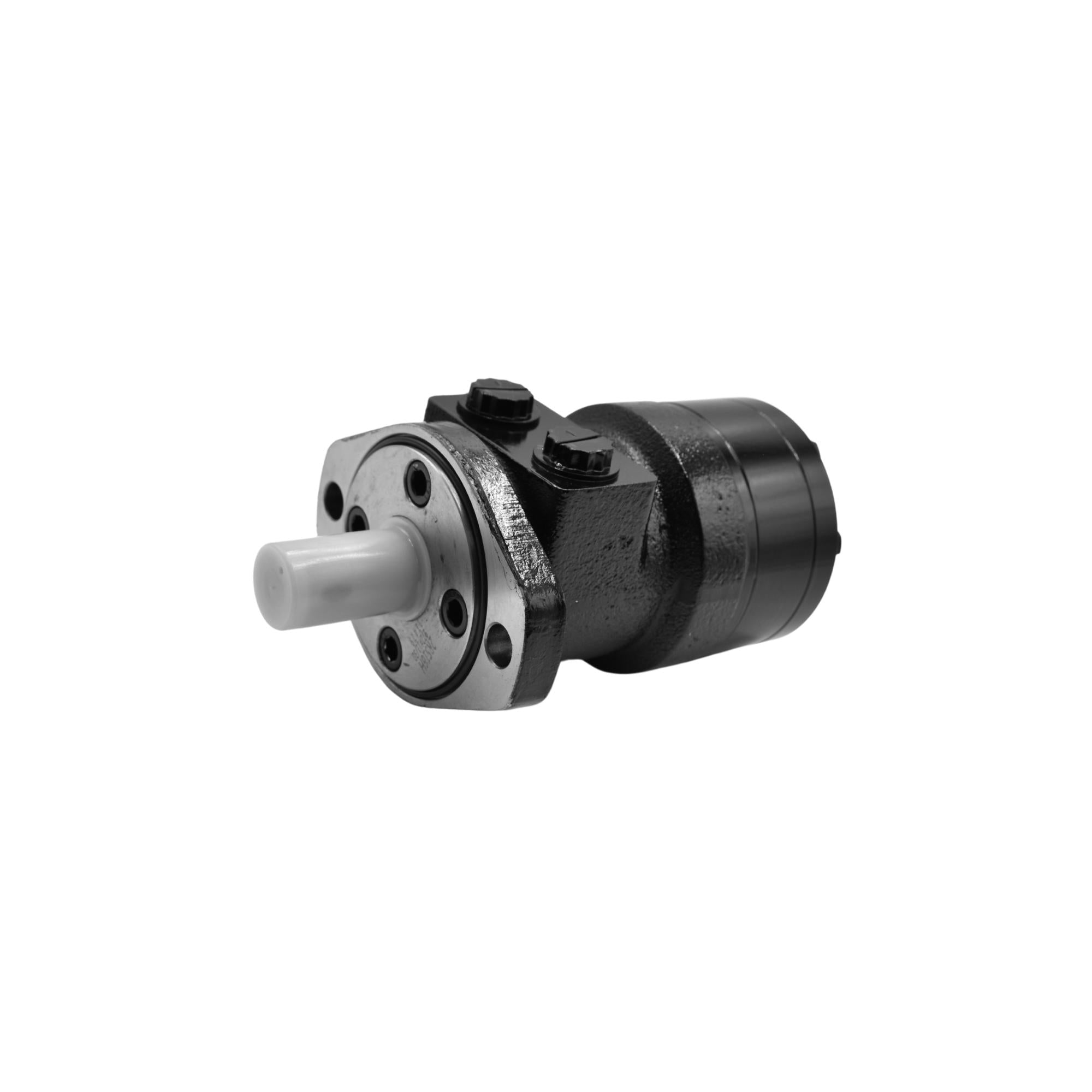

The BMRS series hydraulic motor incorporates an advanced ROLORTORC gear set and shaft distribution flow, offering a compact, quiet, and highly efficient design with high torque at low speeds. This gear set ensures smooth and reliable start-ups even at low pressures. For side load applications, optional radial needle bearings are available upon special request. The motor is built with a lightweight, advanced construction, adhering to ISO 9000-2000 quality standards.
| Specification | Details |
|---|---|
| Port Size | #10 SAE (5/8") |
| Shaft Size | 1" Bore x 1/4" Key |
| Shaft Type | Woodruff Keyed |
| Port Location | Side Ported |
| Flow Rating | 15.85 |
| Pressure Rating | 2321 |
| Displacement | 157.2 |
| Max Speed | 378 |
| Service Parts | BMRS Seal Kit |
| Country of Manufacture | China |
| Height | 5.17 |
| Length | 6.51 |
| Width | 3.81 |
| Weight | 18.65 |
