Mfr. Part #: BMRS-80-H4-K-P
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 168612

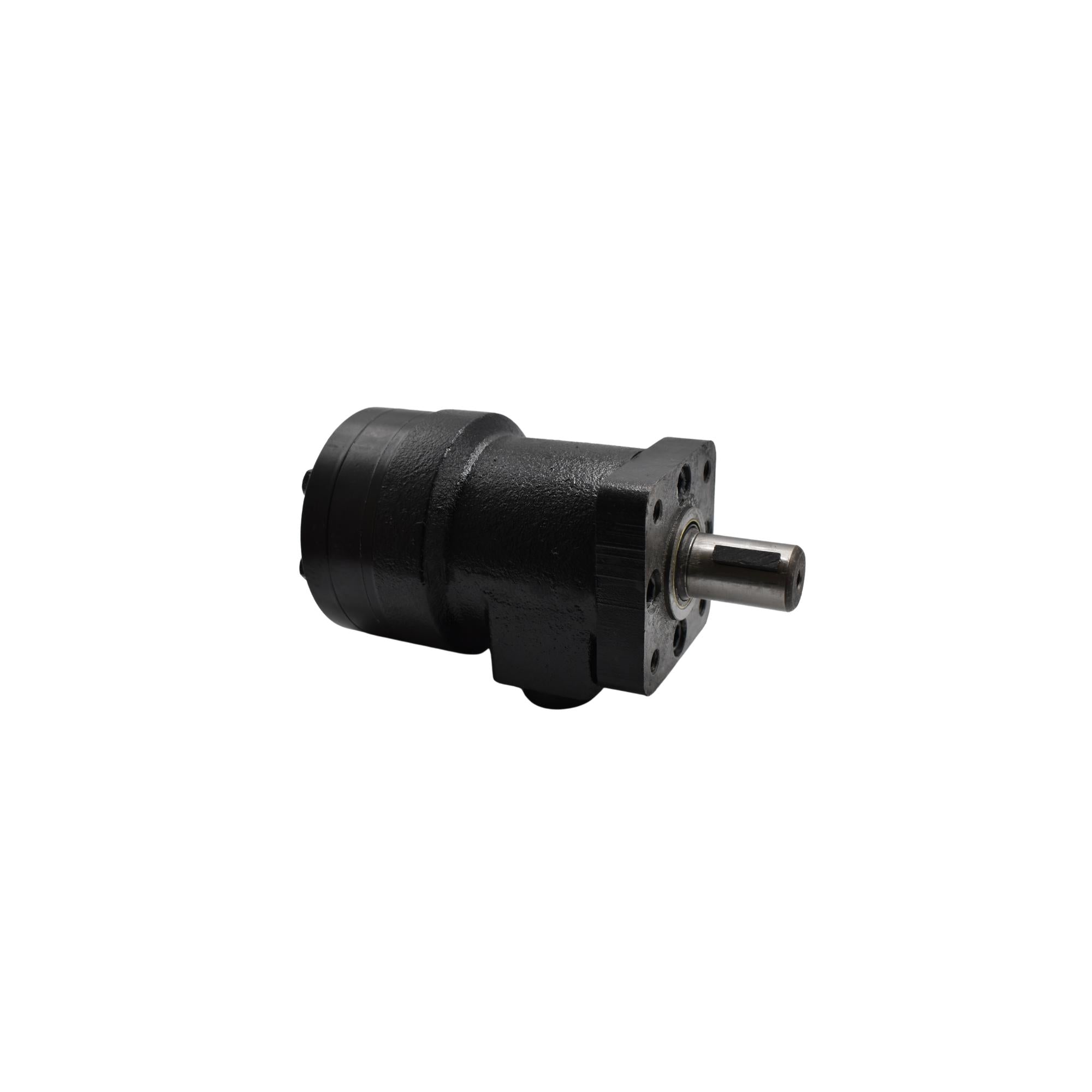

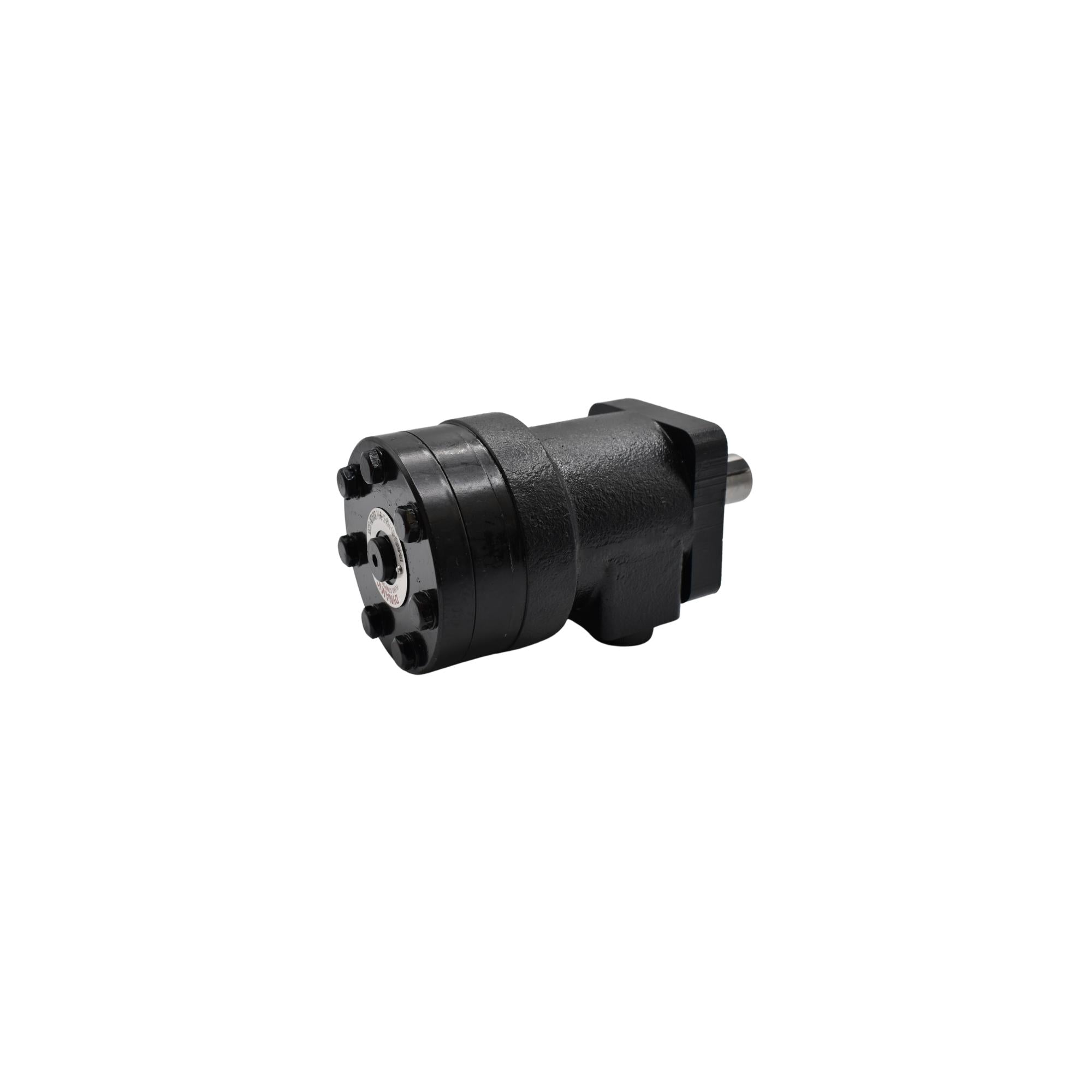

The Hydraulic BMRS-80-H4-K-P is a low-speed, high-torque hydraulic motor with a 4-bolt SAE A flange and 1" keyed shaft. It offers smooth startup, compact design, and high efficiency, ideal for agriculture, forestry, marine, and industrial equipment. Designed for reliable performance under continuous and intermittent loads, it features low noise operation and meets ISO 9000-2000 standards.
| Hydraulic BMRS-80-H4-K-P Specifications | |
|---|---|
| Mounting | 4-bolt SAE A flange |
| Shaft | 1" keyed shaft with Woodruff key |
| Ports | 1/2" NPTF |
| Displacement | 81.5 cc/rev |
| Continuous Speed | 600 RPM |
| Intermittent Speed | 750 RPM |
| Continuous Torque | 1,726 in-lb |
| Intermittent Torque | 1,947 in-lb |
| Continuous Pressure | 2,321 psi |
| Intermittent Pressure | 2,900 psi |
| Continuous Flow | 15.85 GPM |
| Intermittent Flow | 19.81 GPM |
| Weight | 16.8 lbs |
| Design Features | Compact, low noise, smooth start-up, optional radial needle bearings |
| Quality Standard | ISO 9000-2000 certified |
