Mfr. Part #: BMPH-400 H2-K-P
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

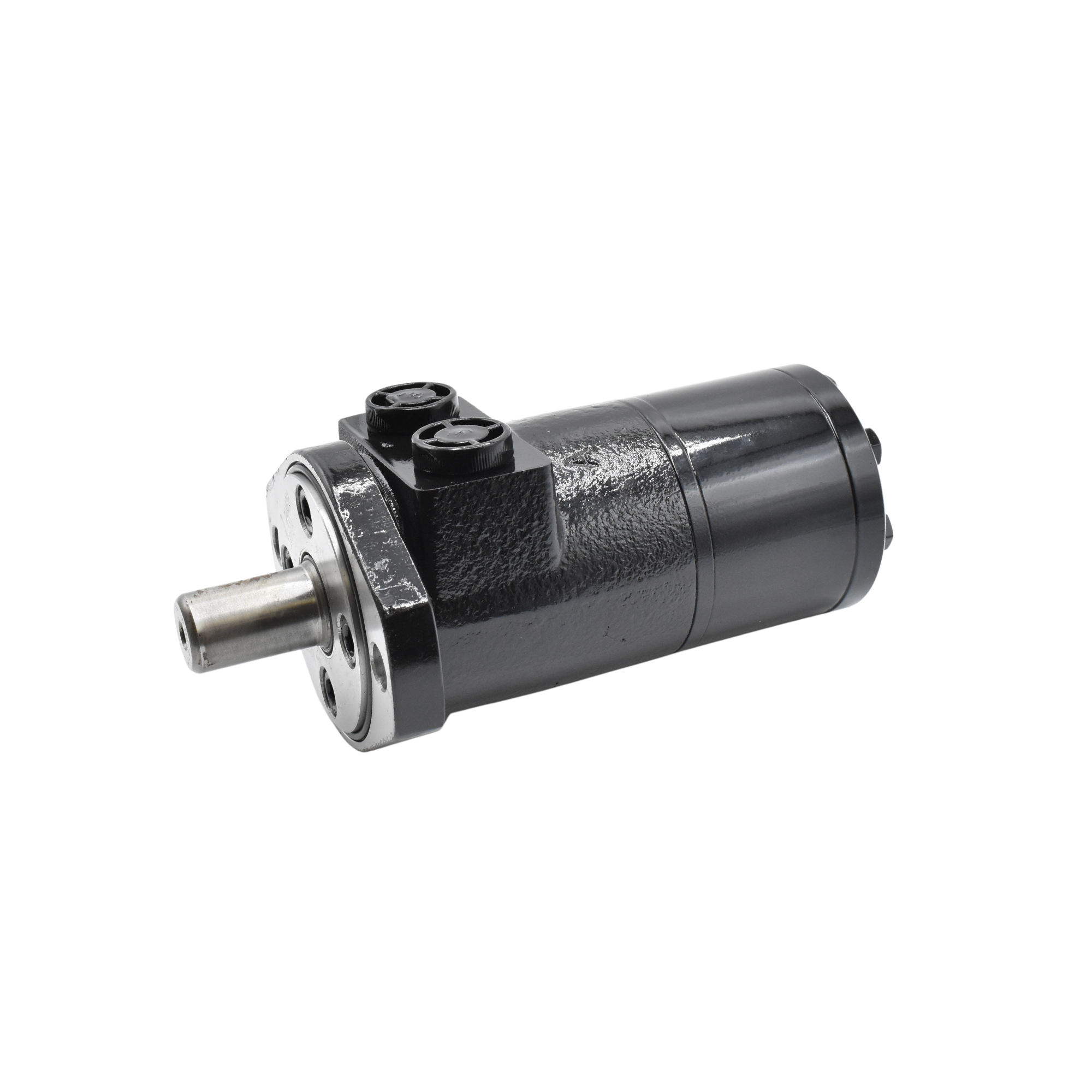

The Dynamic Fluid Components BMPH-400-H2-K-P is a low-speed, high-torque hydraulic motor designed for industrial and mobile hydraulic drive applications. Featuring a 387 cc/rev displacement and an efficient Rotortorc™ gear design, this motor delivers up to 4,337 in-lb of continuous torque at speeds up to 155 RPM. The SAE A two-bolt mounting flange, keyed drive shaft, and 1/2-inch NPTF ports support integration into a variety of hydraulic systems. Designed for parallel or series circuit operation, the BMPH-400 provides reliable hydraulic power for equipment requiring controlled, high-torque rotary motion.
| Manufacturer | Dynamic Fluid Components |
| Part Number | BMPH-400-H2-K-P |
| Motor Type | Low-Speed, High-Torque Hydraulic Motor |
| Gear Design | Rotortorc™ |
| Displacement | 387 cc/rev (23.61 in³/rev) |
| Maximum Continuous Speed | 155 RPM |
| Maximum Intermittent Speed | 190 RPM |
| Maximum Continuous Torque | 4,337 in-lb |
| Maximum Intermittent Torque | 5,133 in-lb |
| Maximum Continuous Differential Pressure | 1,450 PSI |
| Maximum Intermittent Differential Pressure | 1,813 PSI |
| Maximum Continuous Flow | 15.85 GPM |
| Maximum Intermittent Flow | 19.82 GPM |
| Mounting | SAE A 2-Bolt Flange |
| Shaft | 1-inch Shaft with Woodruff Key |
| Ports | 1/2-inch NPTF |
| Port Configuration | Side-Ported |
| Weight | 17.75 lb |
ID #: 223547
