Mfr. Part #: BMPH-315-H2-K-P
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

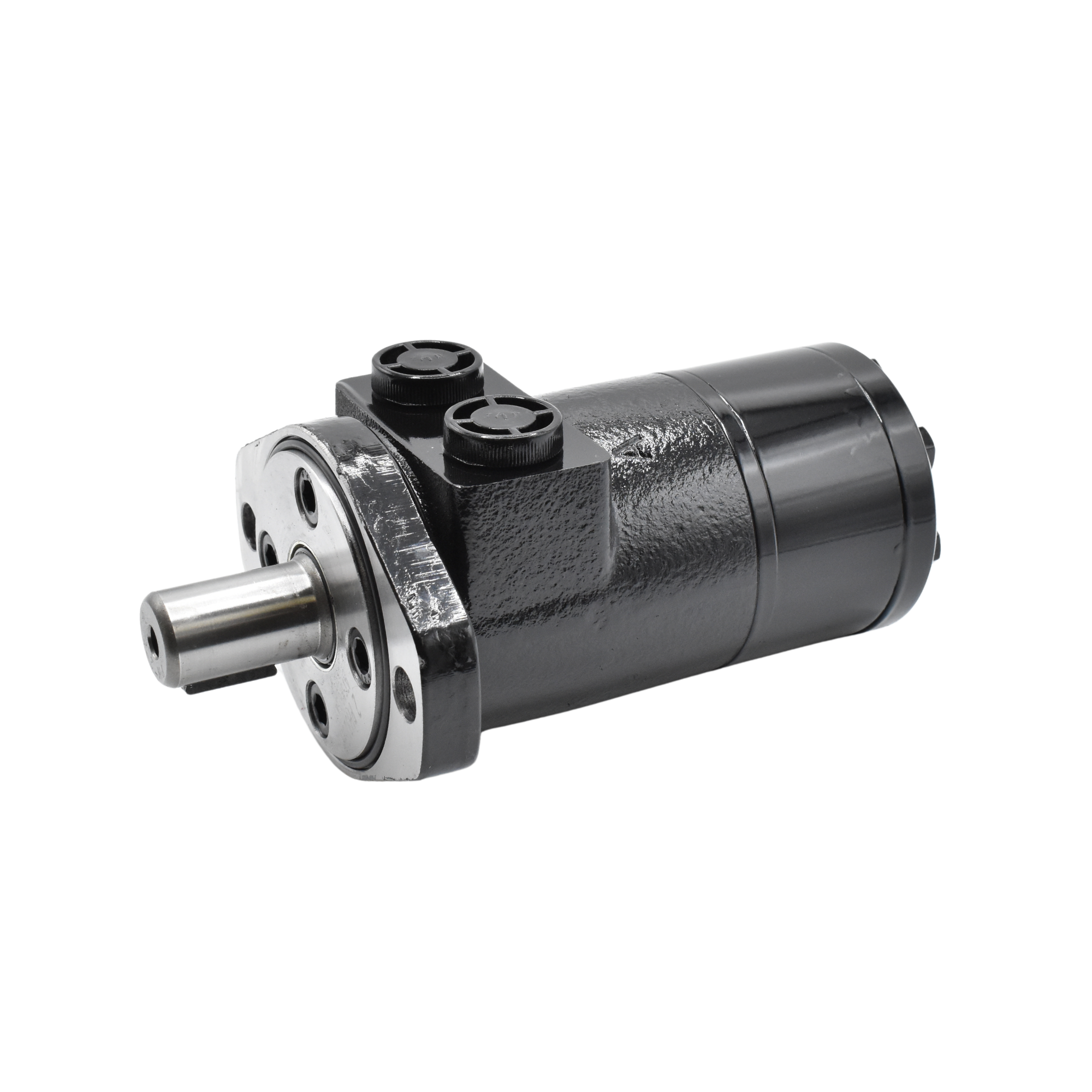

The Dynamic Fluid Components BMPH-315-H2-K-P hydraulic motor is a compact, low-speed, high-torque motor designed for demanding hydraulic applications. Its efficient Rotortorc™ gear set and shaft-distribution flow design support use in parallel or series hydraulic systems. This model features a 315 cc/rev displacement, an SAE A 2-bolt mounting flange, a 1-inch Woodruff-keyed shaft, and 1/2-inch NPTF ports. With a maximum continuous speed of 192 RPM and continuous torque of 4,204 in-lb, it provides dependable hydraulic drive performance for industrial and mobile equipment.
| Manufacturer | Dynamic Fluid Components |
| Part Number | BMPH-315-H2-K-P |
| Motor Type | Low-Speed, High-Torque Hydraulic Motor |
| Displacement | 315 cc/rev (19.03 in³/rev) |
| Maximum Continuous Speed | 192 RPM |
| Maximum Intermittent Speed | 240 RPM |
| Maximum Continuous Torque | 4,204 in-lb |
| Maximum Intermittent Torque | 4,912 in-lb |
| Maximum Continuous Differential Pressure | 1,813 PSI |
| Maximum Intermittent Differential Pressure | 2,031 PSI |
| Maximum Continuous Flow | 15.85 GPM |
| Maximum Intermittent Flow | 19.82 GPM |
| Mounting Flange | SAE A 2-Bolt |
| Drive Shaft | 1-inch Woodruff-Keyed Shaft |
| Port Type | 1/2-inch NPTF |
| Port Location | Side Ported |
| Weight | 16.95 lb |
ID #: 176559
