Mfr. Part #: BMRS-50-H4-K-S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 172384

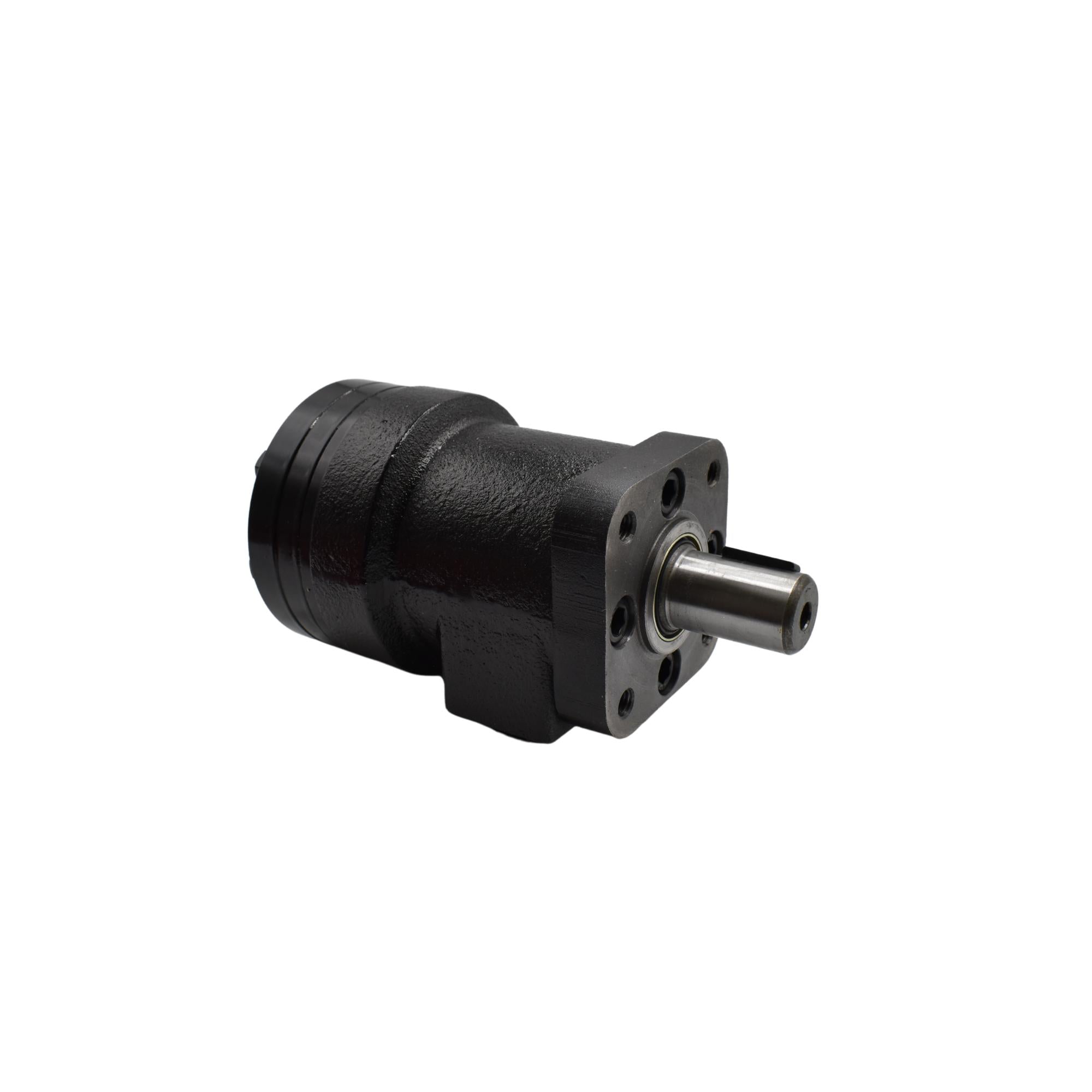

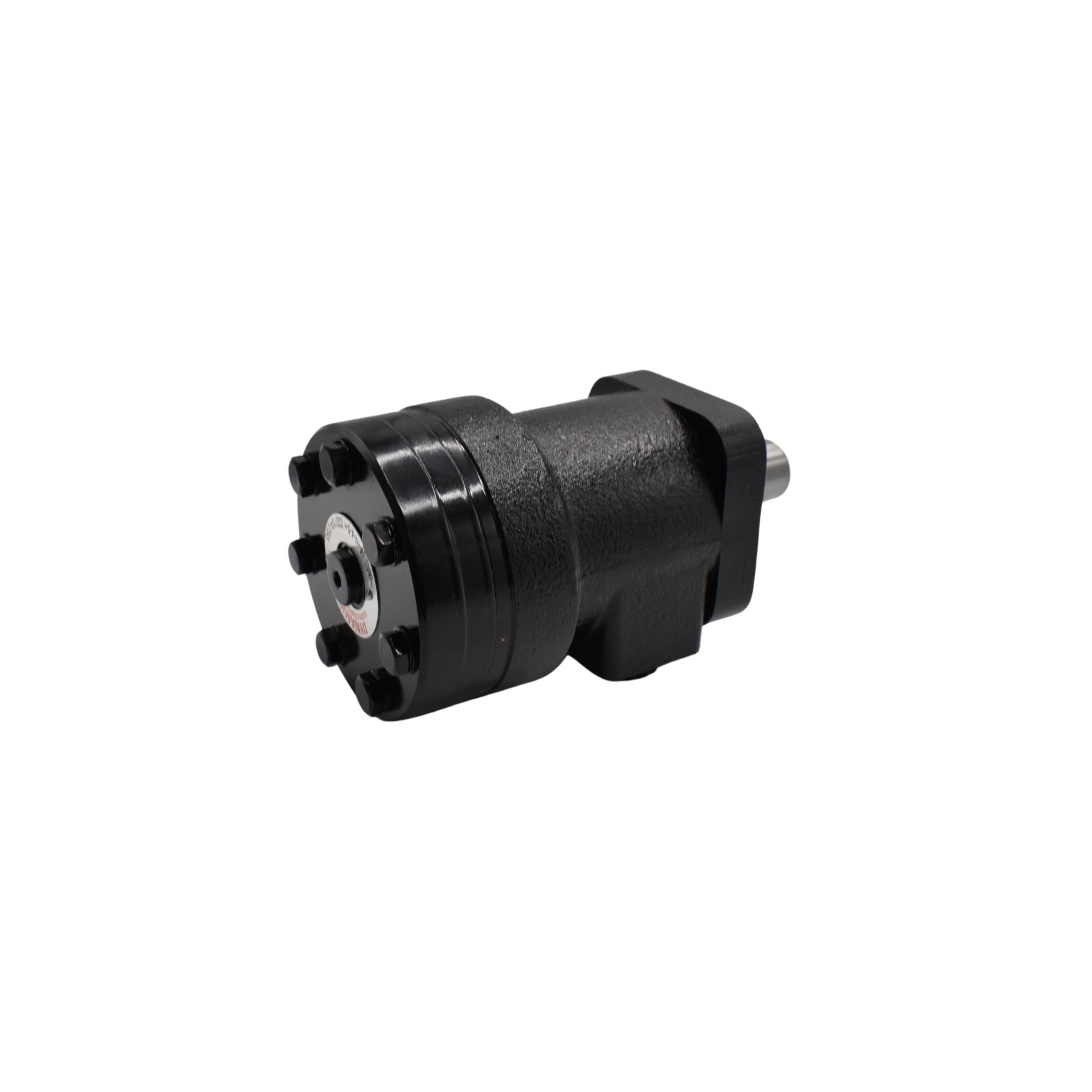

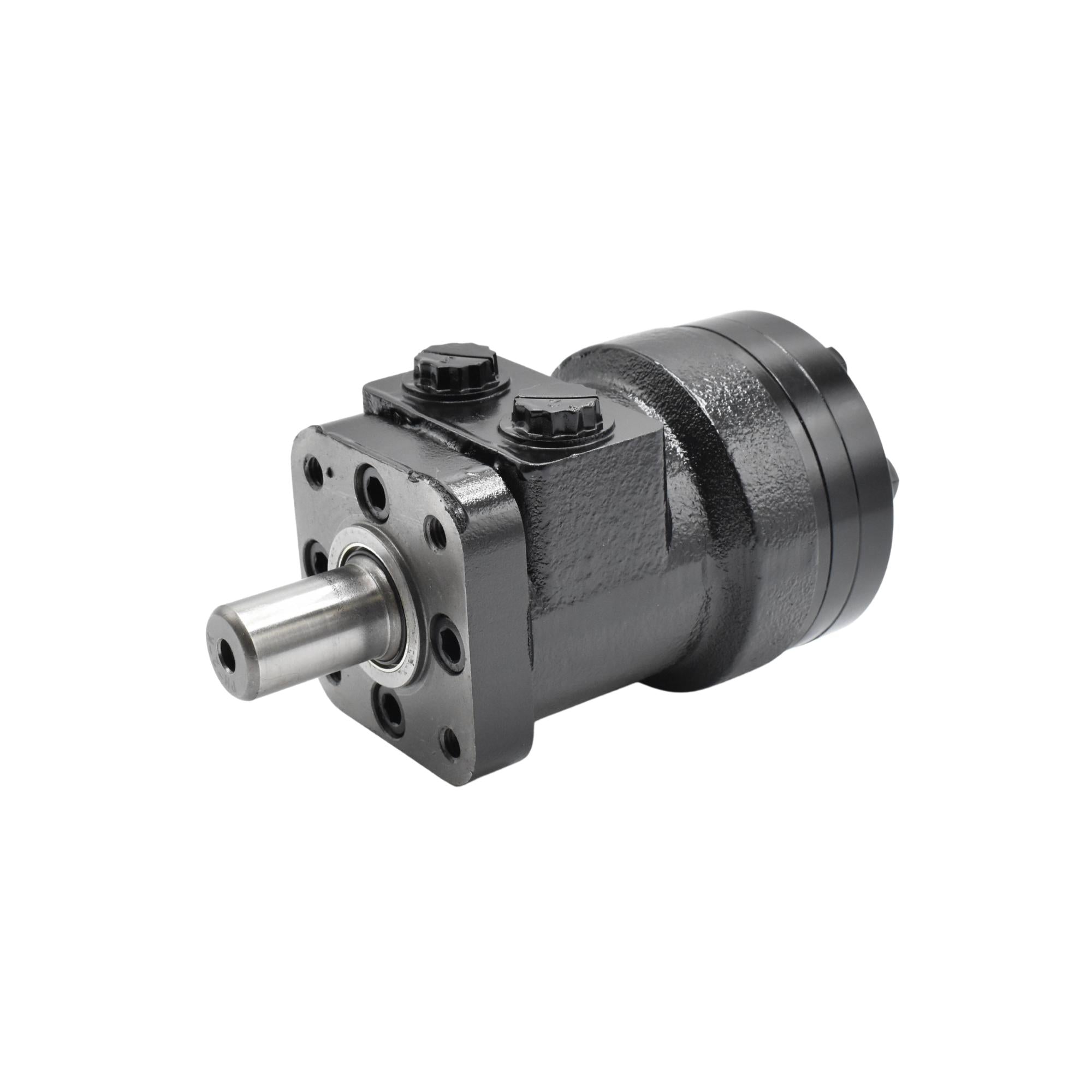

The BMRS series hydraulic motor features an advanced ROLORTORC gear set and shaft distribution flow, delivering a compact, low-noise, high-efficiency design with high torque at low speeds. The ROLORTORC gear set ensures a smooth and reliable start-up even at low pressures. Optional radial needle bearings are available by special order for side load applications. With its lightweight, advanced construction, the motor is built to meet ISO 9000-2000 quality standards.
| Specification | Details |
|---|---|
| Port Size | #10 SAE (5/8") |
| Shaft Size | 1" Bore x 1/4" Key |
| Shaft Type | Woodruff Keyed |
| Port Location | Side Ported |
| Flow Rating | 13.21 |
| Pressure Rating | 2031 |
| Displacement | 51.7 |
| Max Speed | 960 |
| Service Parts | BMRS Seal Kit |
| Country of Manufacture | China |
| Height | 3.28 |
| Length | 5.67 |
| Width | 3.28 |
| Weight | 16.2 |
