Mfr. Part #: BMPH-250-H2-K-P
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

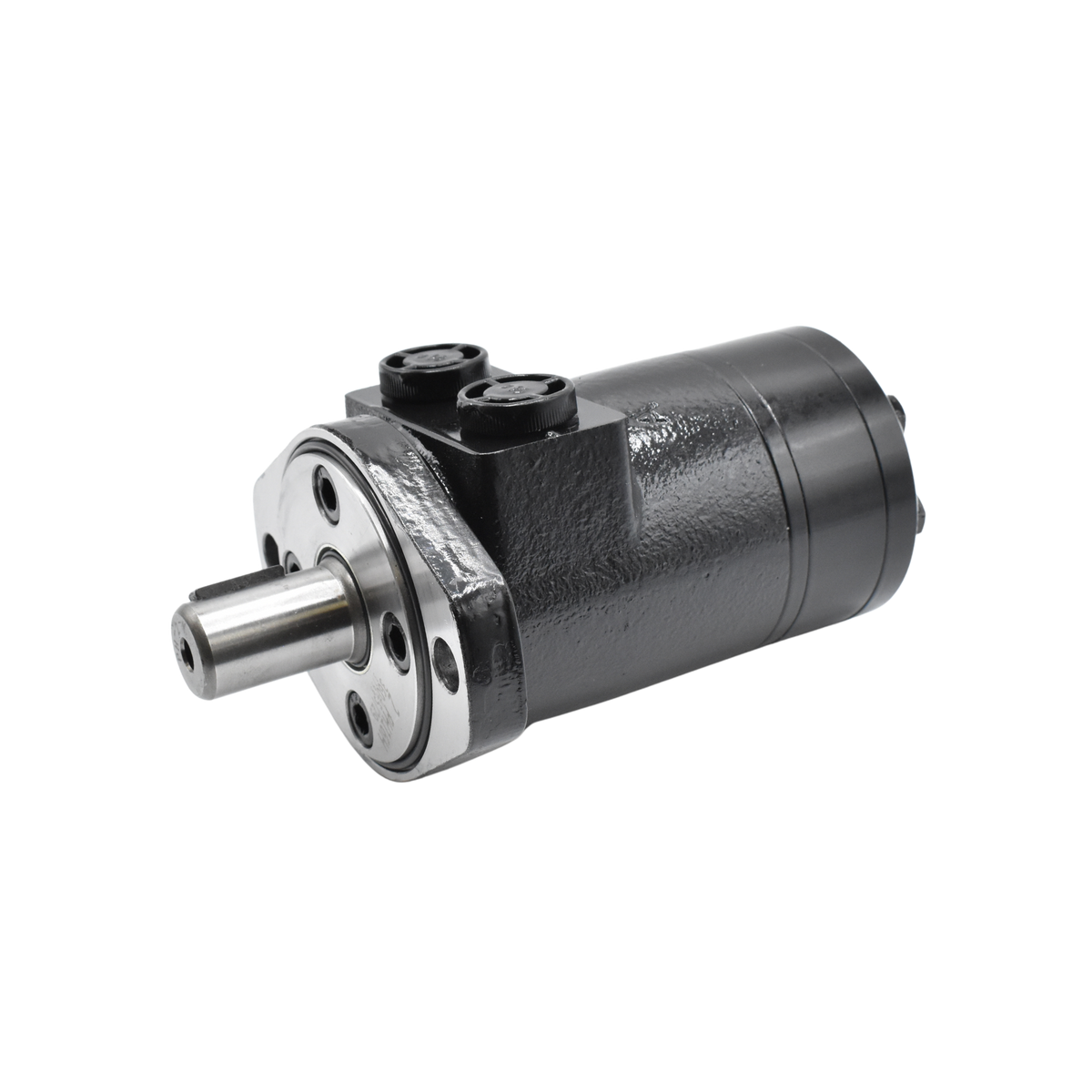

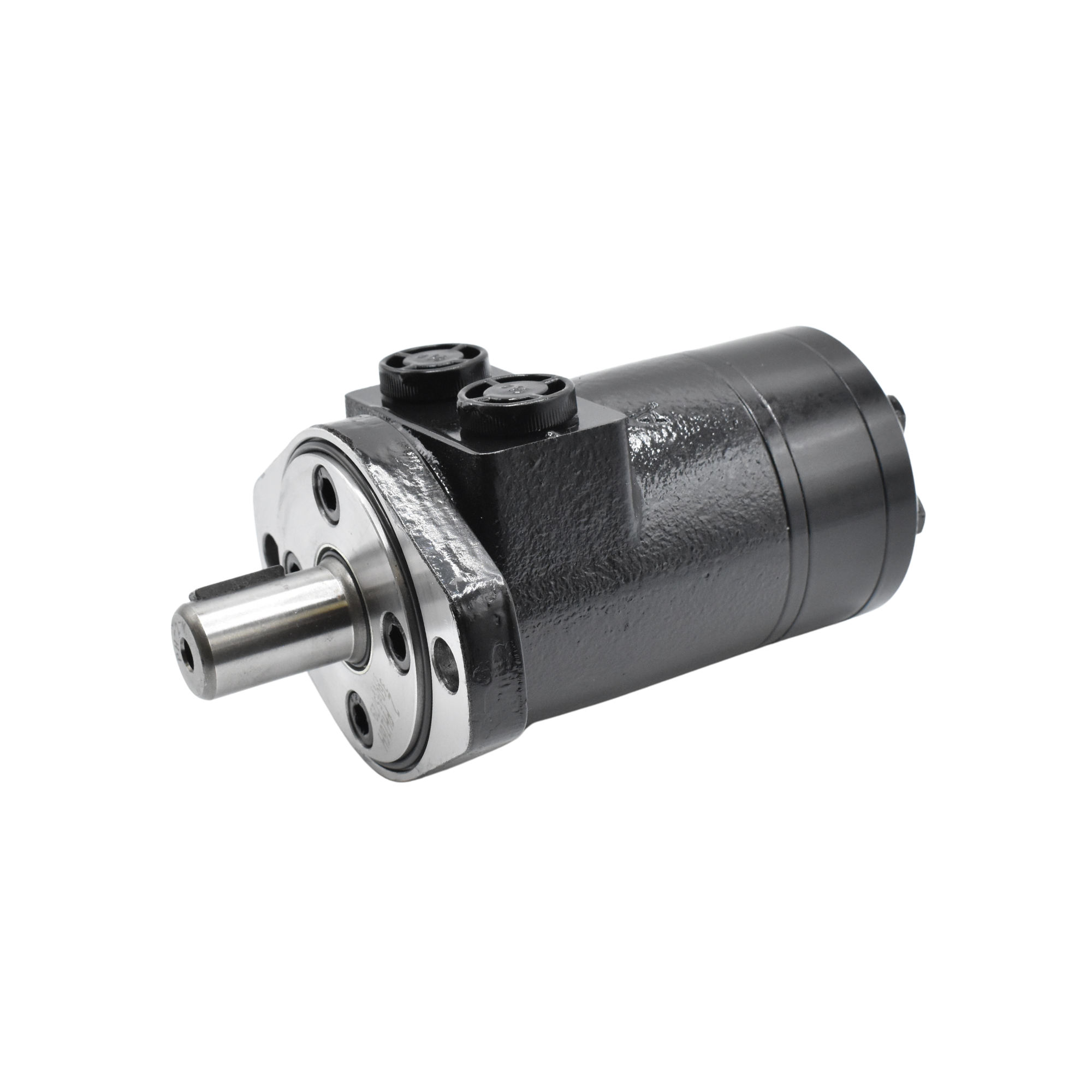

The Dynamic Fluid Components BMPH-250-H2-K-P is a low-speed, high-torque hydraulic motor designed for industrial and mobile hydraulic drive applications. Featuring a 231 cc/rev displacement and an efficient Rotortorc™ gear design, this motor delivers up to 3,186 in-lb of continuous torque at speeds up to 250 RPM. Its SAE A two-bolt mounting flange, keyed drive shaft, and 1/2-inch NPTF ports make it suitable for integration into a variety of hydraulic systems. Designed for parallel or series circuit operation, the BMPH-250 provides reliable rotary power for equipment requiring controlled speed and high torque.
| Manufacturer | Dynamic Fluid Components |
| Part Number | BMPH-250-H2-K-P |
| Motor Type | Low-Speed, High-Torque Hydraulic Motor |
| Gear Design | Rotortorc™ |
| Displacement | 231 cc/rev (14.11 in³/rev) |
| Maximum Continuous Speed | 250 RPM |
| Maximum Intermittent Speed | 310 RPM |
| Maximum Continuous Torque | 3,186 in-lb |
| Maximum Intermittent Torque | 3,894 in-lb |
| Maximum Continuous Differential Pressure | 2,031 PSI |
| Maximum Intermittent Differential Pressure | 2,538 PSI |
| Maximum Continuous Flow | 15.85 GPM |
| Maximum Intermittent Flow | 19.82 GPM |
| Mounting | SAE A 2-Bolt Flange |
| Shaft | 1-inch Shaft with Woodruff Key |
| Ports | 1/2-inch NPTF |
| Port Configuration | Side-Ported |
| Weight | 16.95 lb |
ID #: 223546
