Mfr. Part #: BMER-2-750-FS-G2-S-R
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

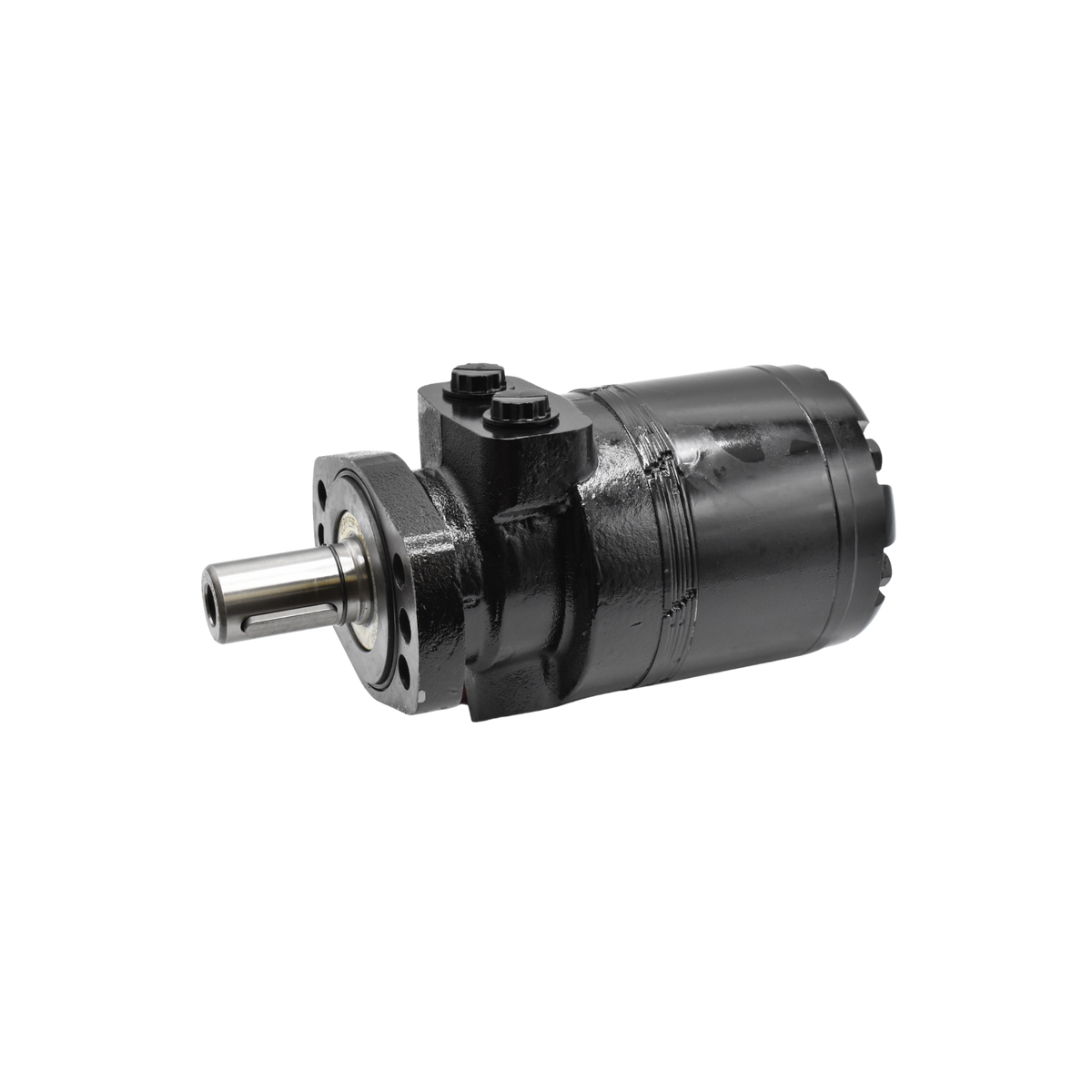

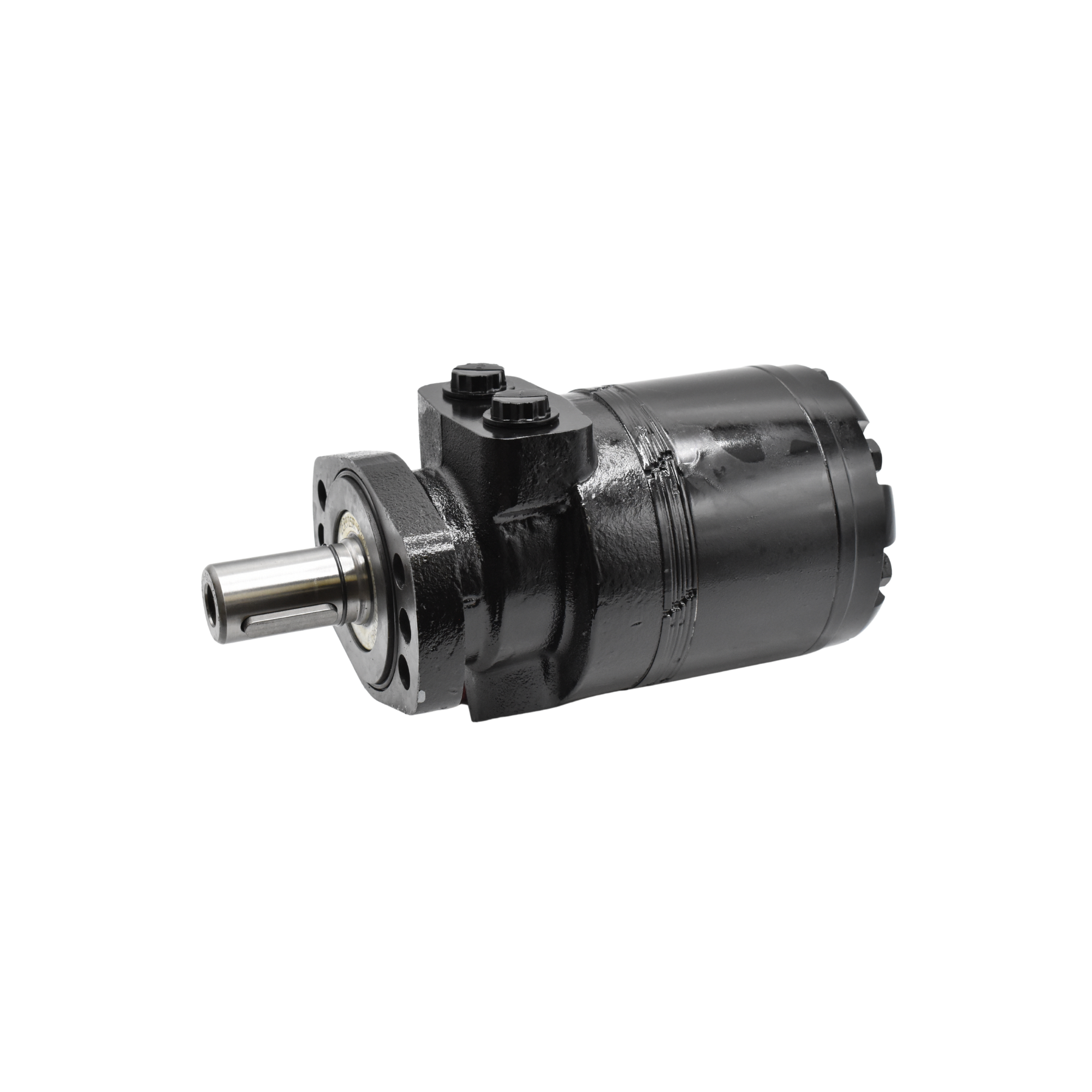

The Dynamic Fluid Components BMER-2-750-FS-G2-S-R is a low-speed, high-torque hydraulic motor designed for industrial and mobile hydraulic applications. Its Geroler gear set and bearing-supported shaft help provide smooth operation, reliable startup at low pressure, and support for high radial and axial loads. This model features 745 cc/rev displacement, a 6-hole magneto mounting flange, a 1-1/4-inch keyed shaft, and side-mounted SAE #10 ports. Its counterclockwise rotation configuration makes it suitable for hydraulic systems requiring a specific direction of rotation.
| Manufacturer | Dynamic Fluid Components |
| Part Number | BMER-2-750-FS-G2-S-R |
| Motor Type | Low-Speed, High-Torque Hydraulic Motor |
| Motor Series | BMER-2 |
| Displacement | 745 cc/rev (45.45 in³/rev) |
| Maximum Continuous Speed | 100 RPM |
| Maximum Intermittent Speed | 120 RPM |
| Maximum Continuous Torque | 9,293 in-lb |
| Maximum Intermittent Torque | 10,443 in-lb |
| Maximum Continuous Differential Pressure | 1,523 PSI |
| Maximum Intermittent Differential Pressure | 1,740 PSI |
| Maximum Continuous Flow | 19.81 GPM |
| Maximum Intermittent Flow | 23.77 GPM |
| Mounting Flange | 6-Hole Magneto Mount |
| Drive Shaft | 1-1/4-inch Keyed Shaft |
| Port Type | SAE #10 (5/8-inch) |
| Port Location | Side Ported |
| Rotation | Counterclockwise (when Port A is pressurized) |
| Weight | 37.75 lb |
