Mfr. Part #: JP-NV-3/4NPT
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

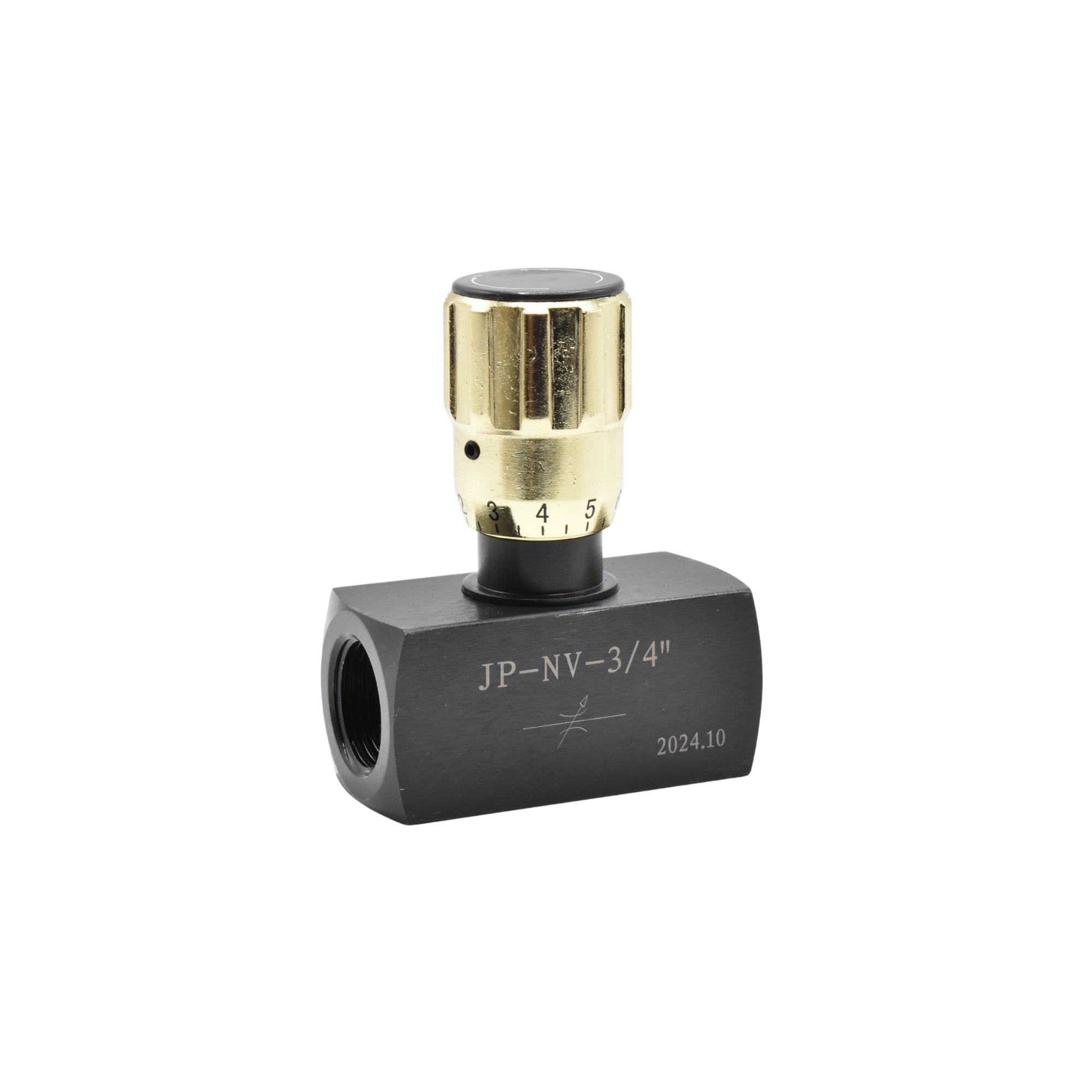

The Dynamic Fluid Components JP-NV-3/4 NPT is an inline hydraulic needle valve designed for precise flow regulation in hydraulic and industrial fluid systems. Its micrometer adjustment knob allows fine control of flow in both directions, while the locking screw helps maintain the selected setting during operation. Built with a durable carbon steel body and black oxide finish, this valve supports operating pressures up to 5,000 PSI and temperatures from -4°F to 176°F.
| Manufacturer | Dynamic Fluid Components |
| Part Number | JP-NV-3/4 NPT |
| Product Type | Inline Hydraulic Needle Valve |
| Port Size | 3/4-inch NPT |
| Maximum Operating Pressure | 5,000 PSI |
| Temperature Range | -4°F to 176°F (-20°C to 80°C) |
| Body Material | Carbon Steel with Black Oxide Plating |
| Handle Material | Zinc Alloy |
| Set Screw Material | Steel |
| Packing | Buna O-Ring / PTFE Stem Packing |
| Adjustment | Micrometer Adjustment Knob |
| Locking Mechanism | Allen-Head Lock Screw |
| Body Width (B) | 1.50 inches |
| Dimension D1 | 0.95 inches |
| Dimension D2 | 1.46 inches |
| Height (H2) | 3.08 inches |
| Height, Fully Open (H3) | 3.41 inches |
| Length (L2) | 3.07 inches |
| Weight | 2.00 lb |
ID #: 169340
