Mfr. Part #: CF1V-000A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

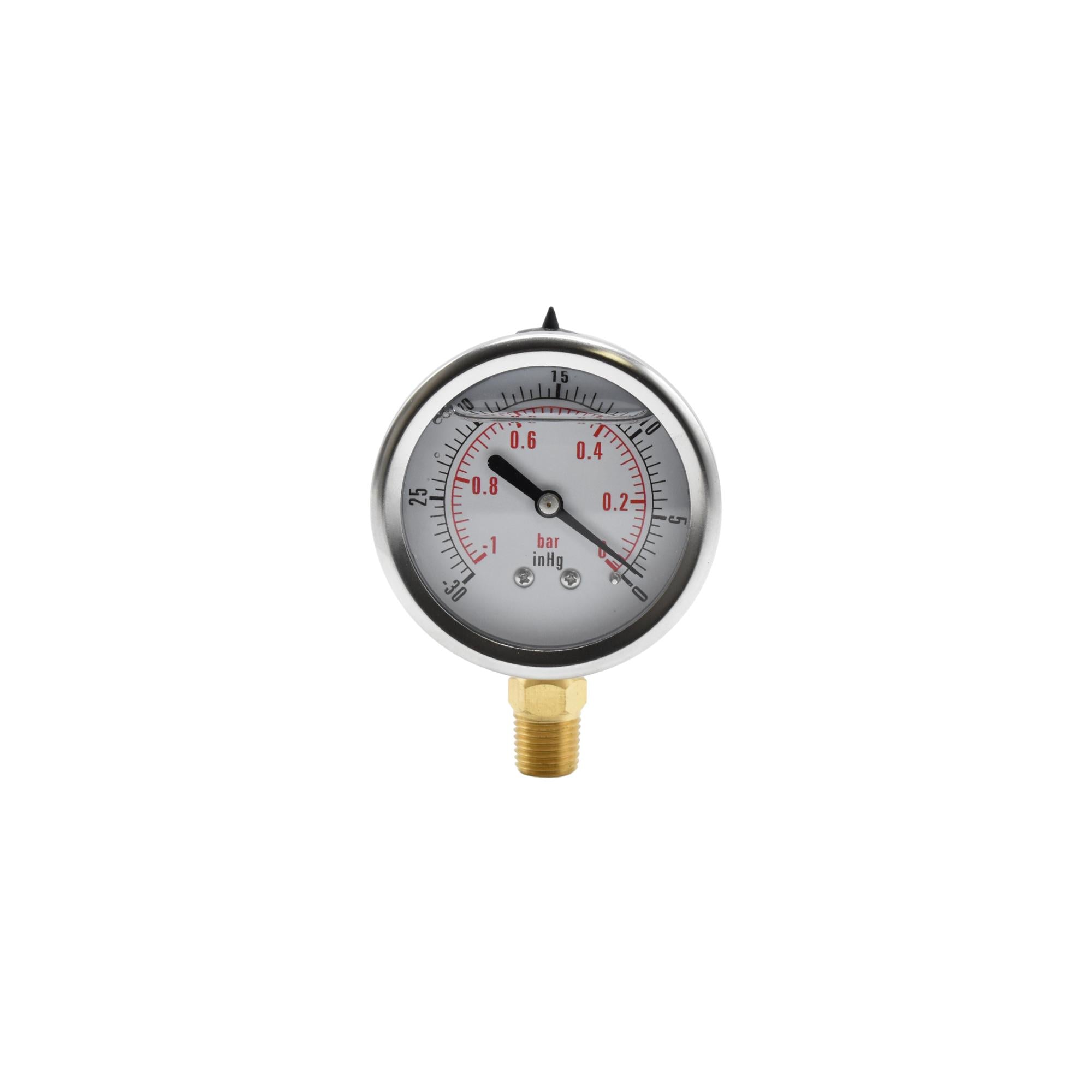

The Dynamic Fluid Components CF1V-000A is a 2.5-inch glycerin-filled vacuum gauge designed for reliable pressure monitoring in industrial and hydraulic systems. Its stainless steel case, bronze Bourdon tube, and polycarbonate lens provide durable construction, while the built-in snubber helps dampen pressure pulsations for easier readings. The gauge features a dual PSI and bar scale and a 7/16-20 SAE swivel connection.
| Manufacturer | Dynamic Fluid Components |
| Part Number | CF1V-000A |
| Product Type | Glycerin-Filled Vacuum Gauge |
| Dial Size | 2.5 inches |
| Measurement Type | Vacuum |
| Pressure Range | 30 inHg vacuum to 0 PSI |
| Display | Dual Scale: PSI and bar |
| Case and Bezel | 304 Stainless Steel |
| Bourdon Tube | Phosphor Bronze |
| Lens | Polycarbonate |
| Connection | 7/16-20 SAE Swivel |
| Mounting Style | Stem Mount (Style A) |
| Accuracy | ±1.6% of Full Scale |
| Built-In Snubber | Yes |
| Temperature Range | -13°F to 180°F |
ID #: 208711
