Mfr. Part #: CF1P-350D
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

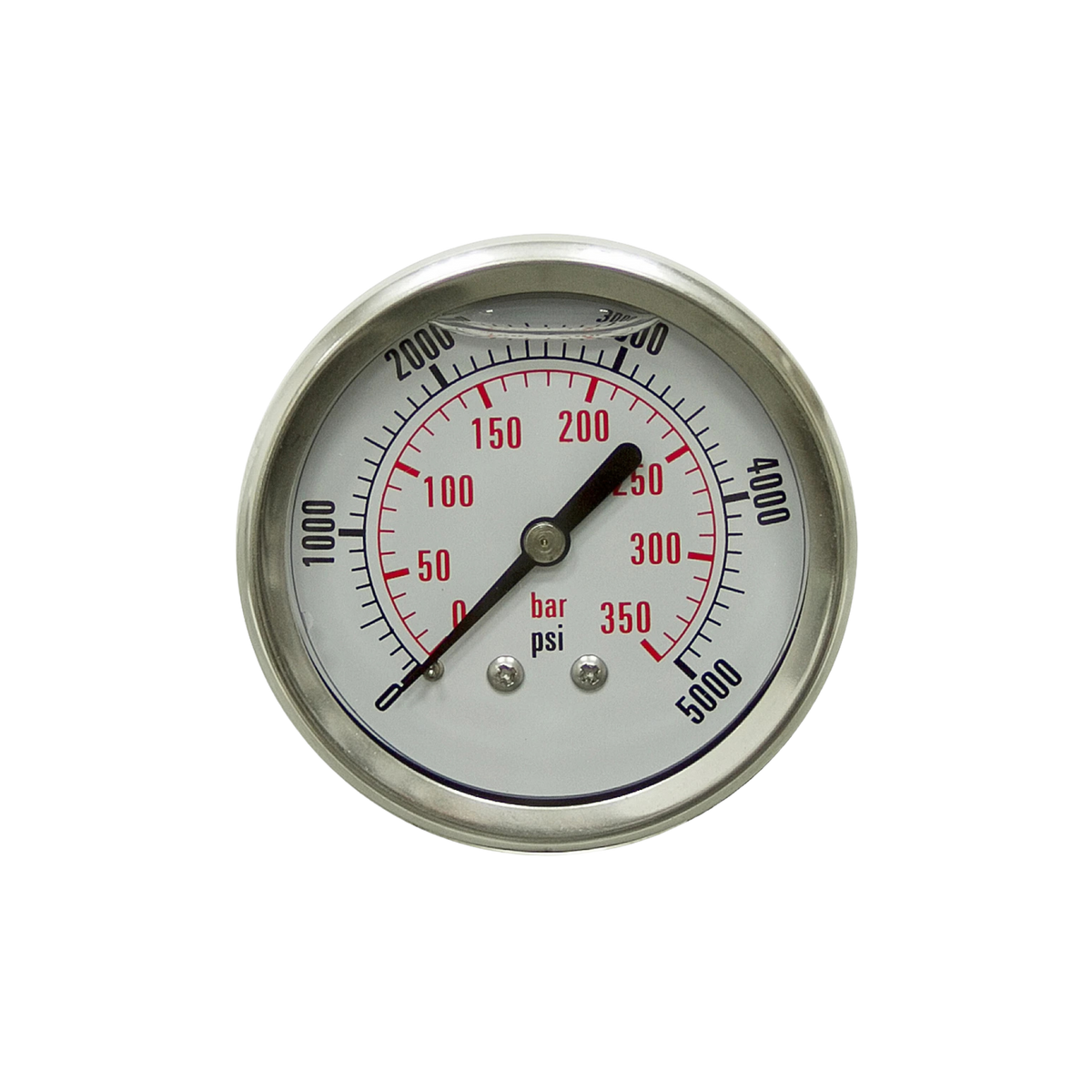

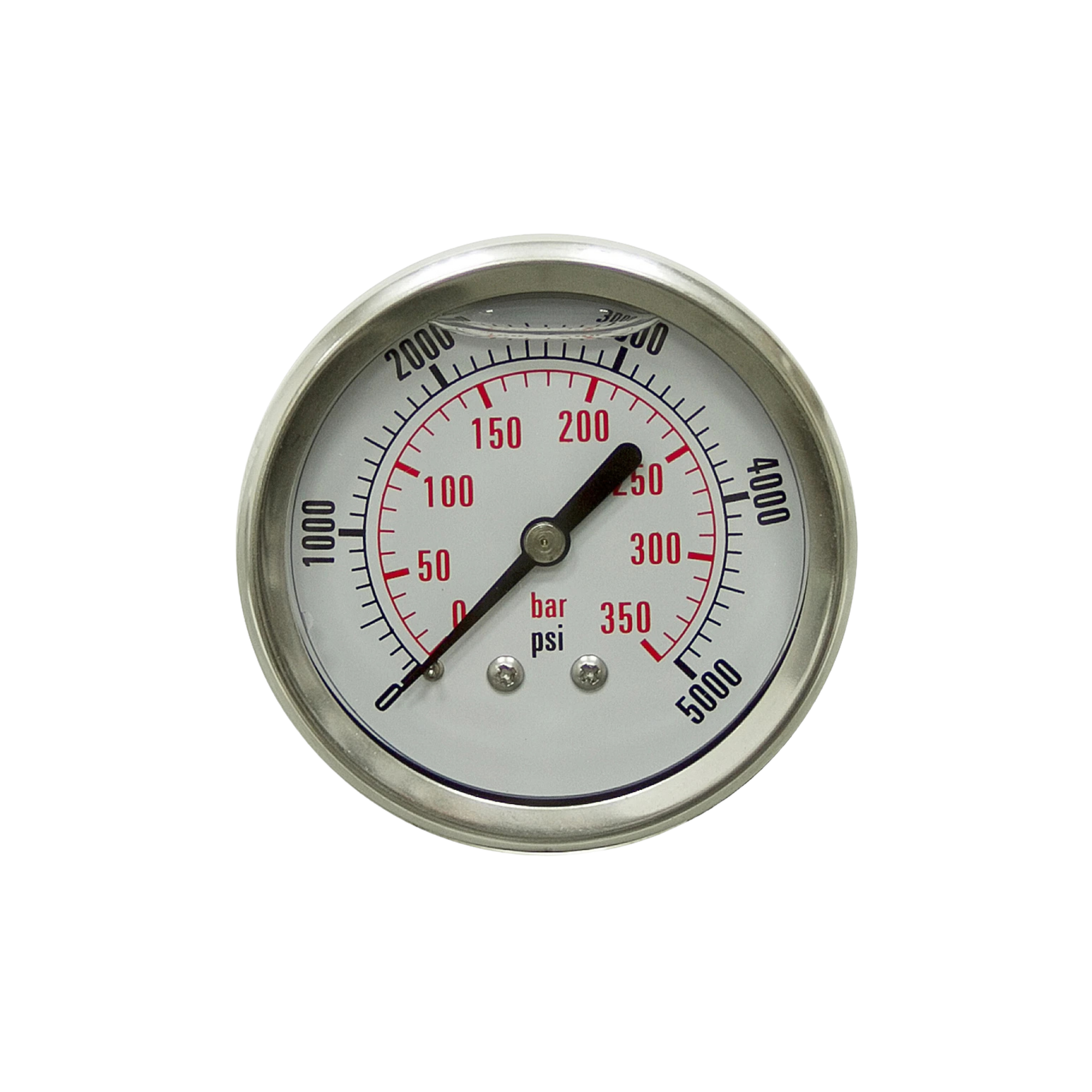

The Dynamic Fluid Components CF1P-350D is a 2.5-inch glycerin-filled pressure gauge designed for accurate pressure monitoring in hydraulic and industrial systems. Its 0–5,000 PSI range, stainless steel case, and polycarbonate lens provide reliable performance in demanding environments. The center-back mounting design supports rear installation, while the built-in snubber helps reduce pointer vibration caused by pressure pulsations.
| Manufacturer | Dynamic Fluid Components |
| Part Number | CF1P-350D |
| Product Type | Glycerin-Filled Pressure Gauge |
| Gauge Diameter | 2.5 in |
| Pressure Range | 0–5,000 PSI |
| Mounting Style | Center Back Mount |
| Case and Bezel Material | 304 Stainless Steel |
| Bourdon Tube Material | Phosphor Bronze |
| Connection | 1/4-inch NPT |
| Lens Material | Polycarbonate |
| Dial Scale | PSI and bar |
| Accuracy | ±1.6% of Full Scale |
| Temperature Range | -13°F to 180°F |
| Snubber | Built-in |
ID #: 222094
