Mfr. Part #: JP-FC-1/2 NPT
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 177572

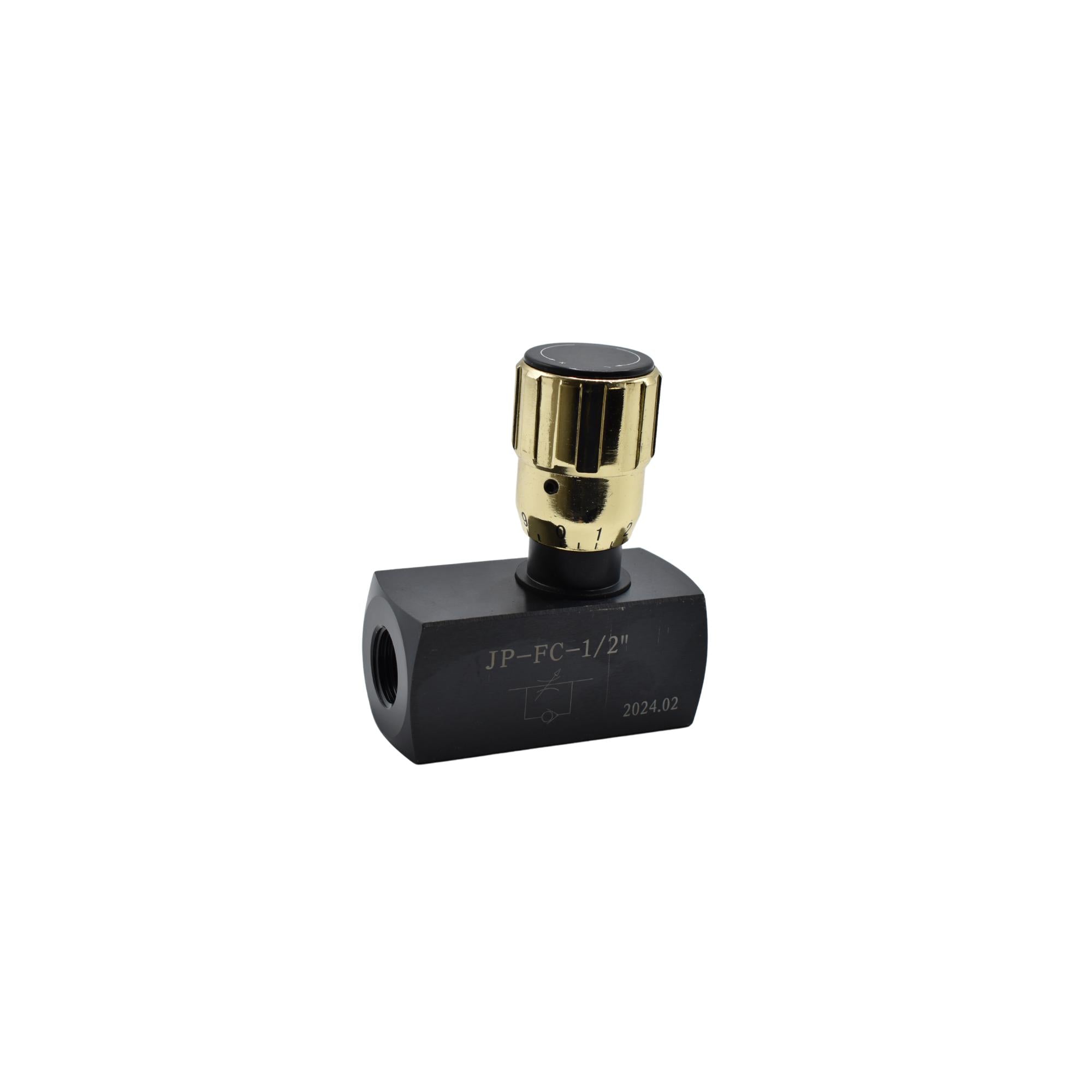

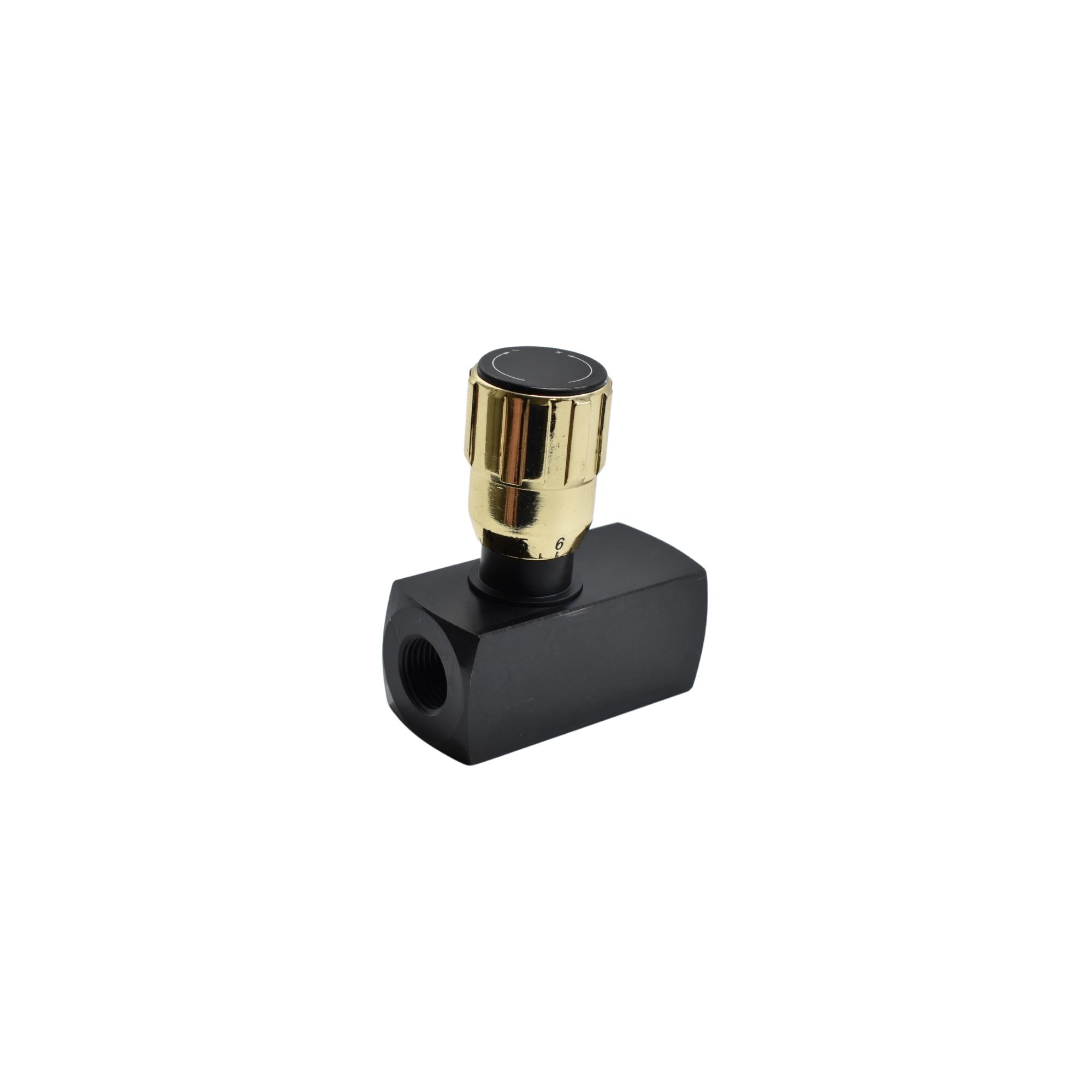

The JP-FC-1/2 NPT Flow Control Valve by Dynamic Fluid Components is designed for precise flow control in hydraulic systems. Featuring durable carbon steel construction and a micrometer adjustment knob, this valve allows for accurate valve settings and is rated for up to 5000 psi maximum pressure.
Key Features:
Micrometer adjustment knob for precise flow control
Sturdy and rugged construction
Maximum pressure rating: 5000 psi
Temperature range: -4°F to 176°F (-20°C to 80°C)
Allen head lock screw to securely lock the handle in place
Materials:
Body: Carbon steel with black oxide plating
Handle: Zinc alloy
Set screw: Steel
Packing: Buna O-Ring/PTFE stem packing
Series Overview:
As part of the JP-FC series, this flow control valve is engineered for top-notch precision and durability in hydraulic applications. Whether you're optimizing a hydraulic system or enhancing system performance, the JP-FC-1/2 NPT Flow Control Valve is the ideal solution.
Elevate the efficiency and reliability of your hydraulic system with the JP-FC-1/2 NPT Flow Control Valve. Order today and experience superior performance.
| Specification | Details |
|---|---|
| Weight | 2 lbs |
| Dimensions | 4 × 4 × 4 in |
| Manufacturer | Dynamic Fluid Components |
| Valves Thread | 1/2" NPT |
