Mfr. Part #: CF1P-420-A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 164084

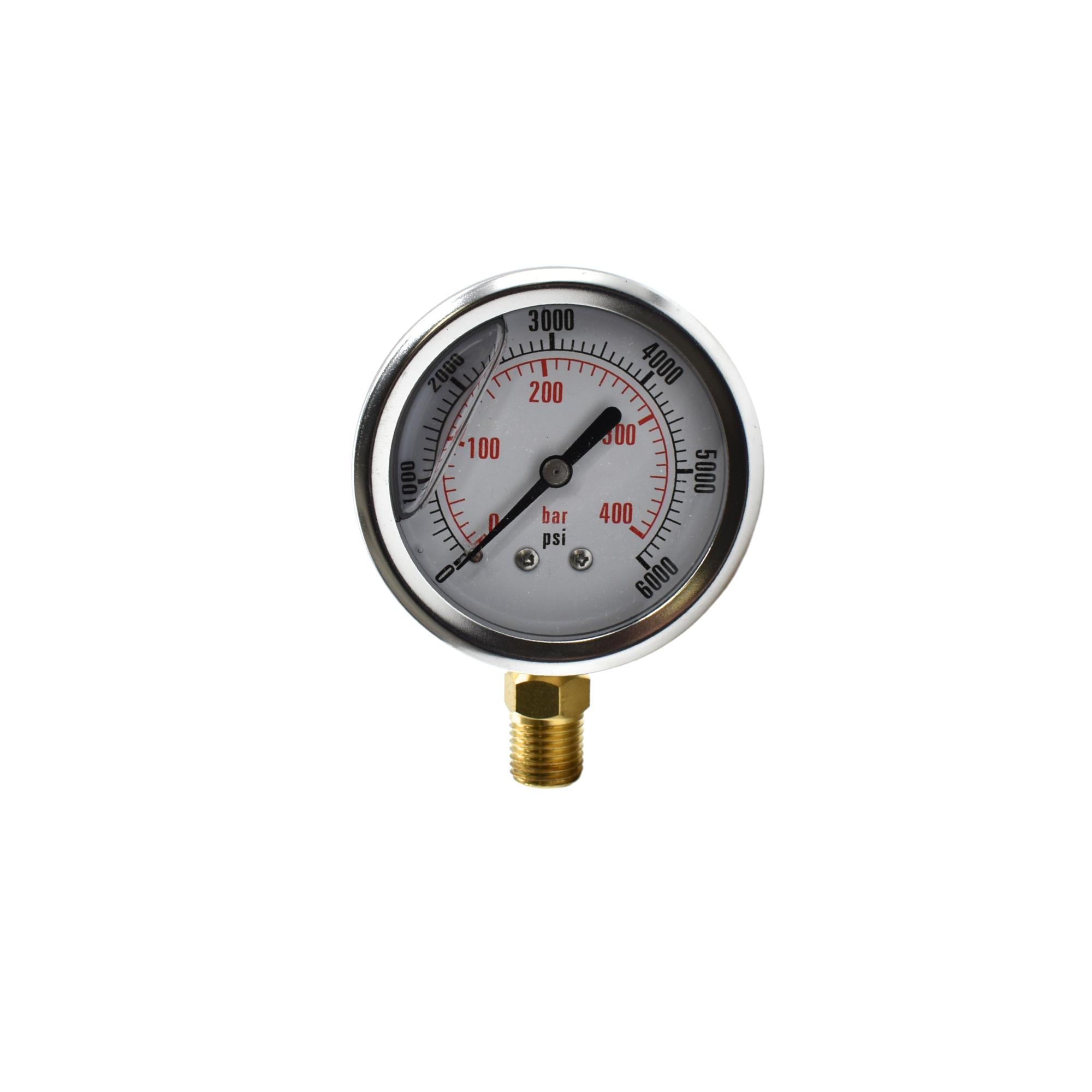

The Dynamic CF Series Glycerine-Filled gauges provide an affordable and precise solution for your pressure measurement needs. Featuring a stainless steel case, bronze bourdon tube and connection, and a polycarbonate lens, these gauges are built for durability. Every Dynamic gauge includes a built-in snubber for extra protection. Standard faces display dual psi and bar scales, with pressure ranges available up to 10,000 psi. Certificates of Accuracy can be provided for an additional charge.
| Specification | Details |
|---|---|
| Material | Stainless Steel |
| Gauge Face Size | 2.5" |
| Gauge Pressure Range | 0-6000psi |
| Gauge Style Selection | Stem Mounted |
| Gauge Connection | 1/4" NPT |
| Country of Manufacture | China |
| Height | 3.45 inches |
| Length | 1.18 inches |
| Width | 3.45 inches |
