Mfr. Part #: CF1P-210A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 161927

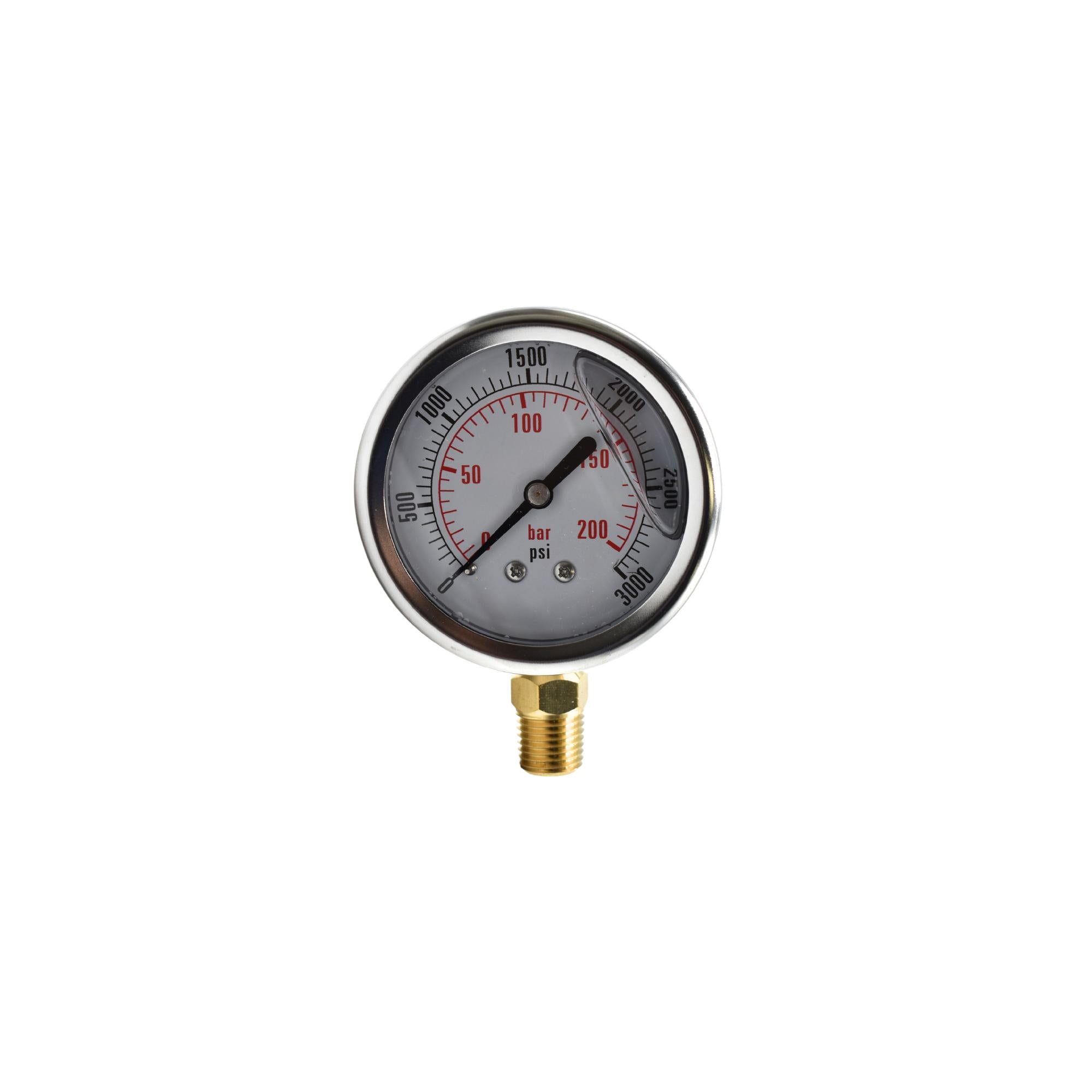

The Dynamic CF Series Glycerine-Filled gauges provide an accurate and affordable solution for your pressure measurement needs. These gauges feature a durable stainless steel case, a bronze bourdon tube and connection, and a polycarbonate lens. Each gauge is equipped with a built-in snubber for enhanced protection. Standard gauge faces offer both psi and bar dual scales, with pressure ranges available up to 10,000 psi. Certificates of Accuracy are available for an additional fee.
| Specification | Details |
|---|---|
| Material | Stainless Steel |
| Gauge Face Size | 2.5" |
| Gauge Pressure Range | 0-3000psi |
| Gauge Style Selection | Stem Mounted |
| Gauge Connection | 1/4" NPT |
| Country of Manufacture | China |
| Height | 3.45 inches |
| Length | 1.18 inches |
| Width | 3.45 inches |
