Mfr. Part #: CF1P-140-A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 175364

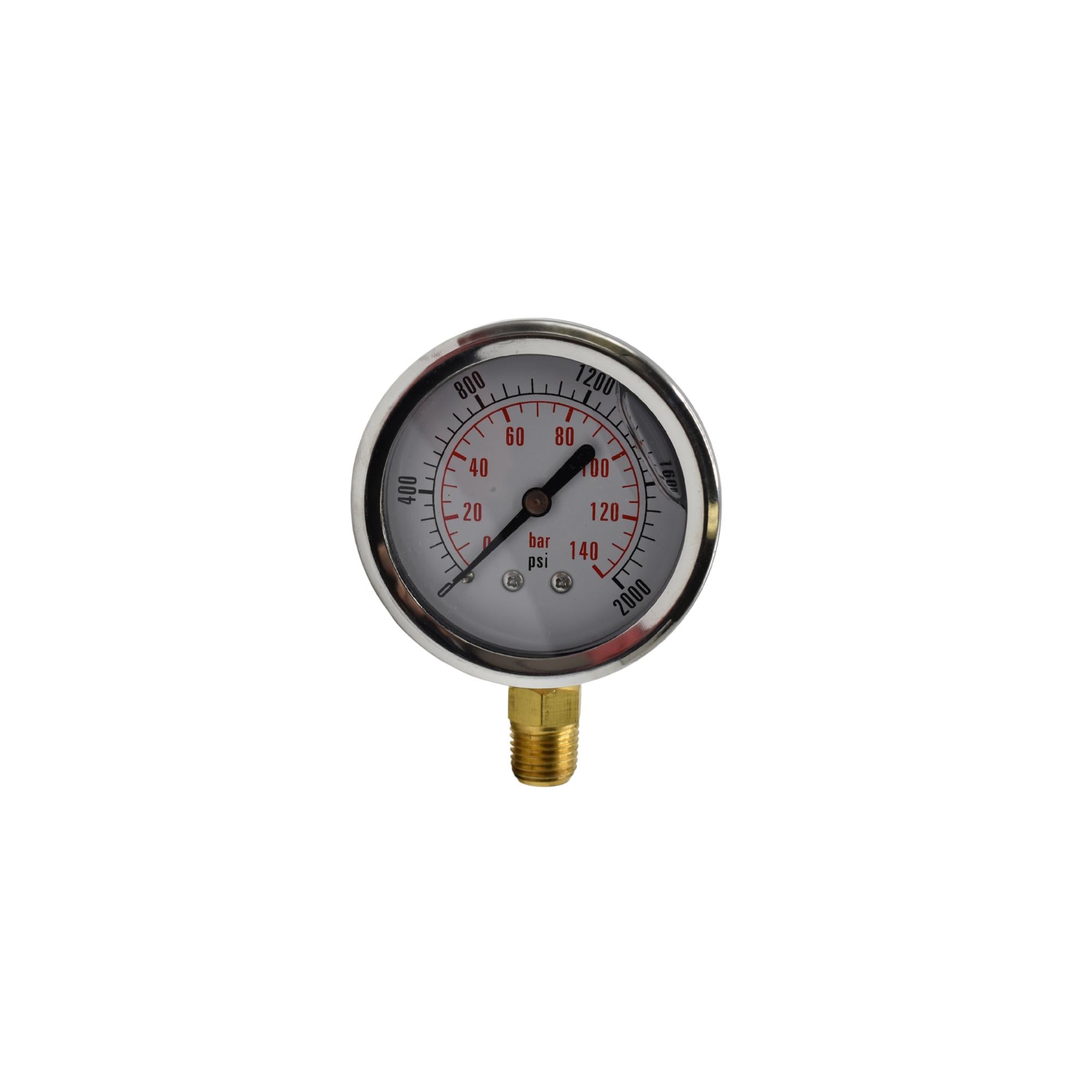

The Dynamic CF Series Glycerine-Filled gauges provide a precise and affordable solution for your pressure measurement requirements. These gauges are crafted with a stainless steel case, bronze bourdon tube and connection, and a durable polycarbonate lens. Each Dynamic gauge includes a built-in snubber for added protection. The standard gauge faces feature dual psi and bar scales, available in various pressure ranges up to 10,000 psi. Certificates of Accuracy are available for an additional fee.
| Specification | Details |
|---|---|
| Material | Stainless Steel |
| Gauge Face Size | 2.5" |
| Gauge Pressure Range | 0-2000psi |
| Gauge Style Selection | Stem Mounted |
| Gauge Connection | 1/4" NPT |
| Country of Manufacture | China |
| Height | 3.45 inches |
| Length | 1.18 inches |
| Width | 3.45 inches |
