Mfr. Part #: CF1P-700-A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 164067

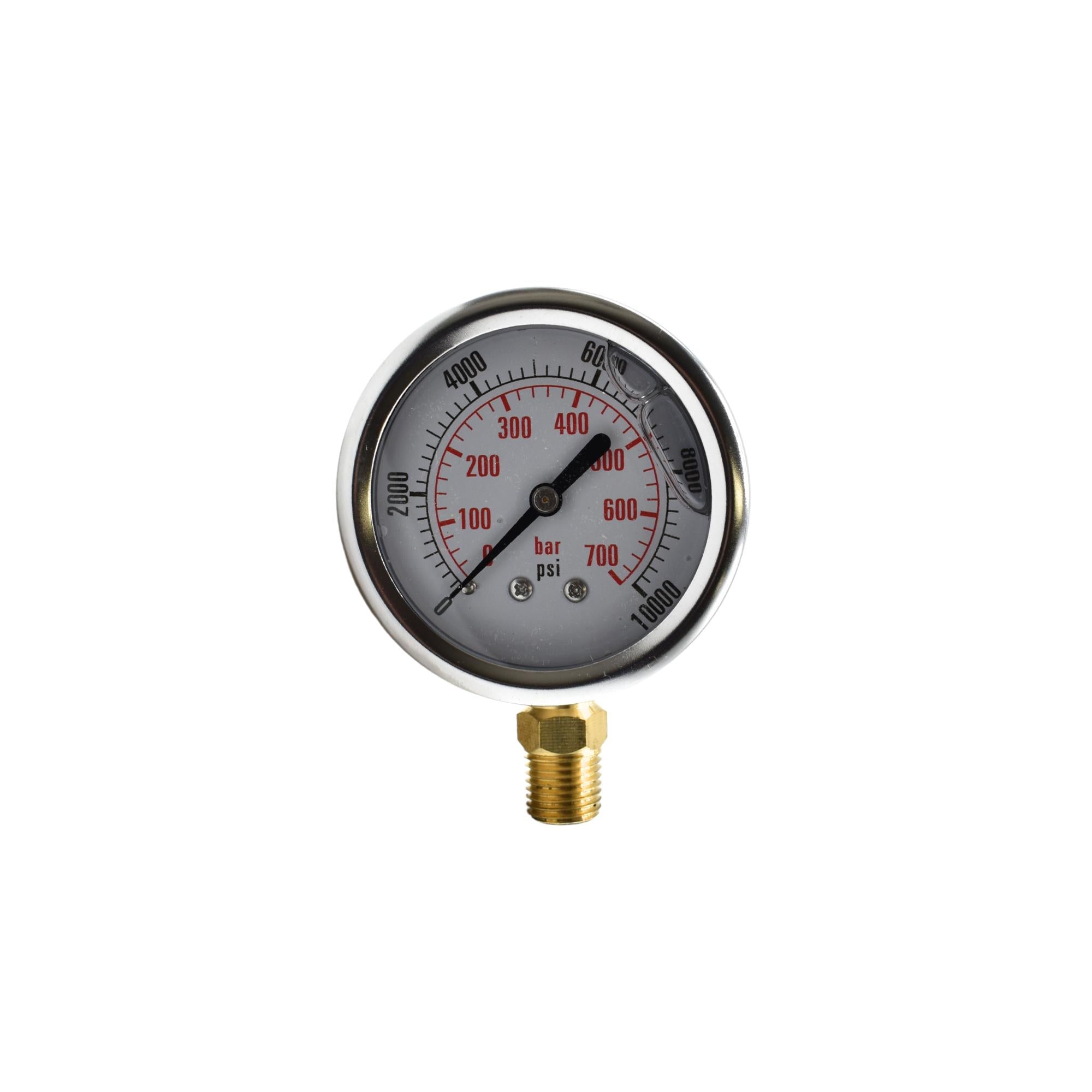

Introducing the CF1P-700A Glycerine-filled Gauge, an ideal choice for precise pressure measurement across various applications. Part of the CF Series by Dynamic Fluid Components, this gauge is crafted with high-quality materials to guarantee long-lasting durability and dependable performance.
| Specification | Details |
|---|---|
| Weight | 0.25 lbs |
| Dimensions | 6 × 4 × 4 in |
| Manufacturer | Dynamic Fluid Components |
| Gauge Accuracy | 1.6% FSD |
| Gauge Case Material | 304 Stainless Steel Case & Bezel |
| Gauge Connection Size | 1/4” NPT |
| Gauge Dial Size | 2.5 inches |
| Gauge Display Type | Analog |
| Gauge Lens Material | Polycarbonate |
| Gauge Measuring System | psi, bar |
| Gauge Pressure Range | 0-10,000 psi |
| Gauge Product Type | Glycerine-filled Gauge |
| Gauge Series | CF |
| Gauge Temperature Range | -13º to 180ºF |
