Mfr. Part #: CF1P-070-A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 168238

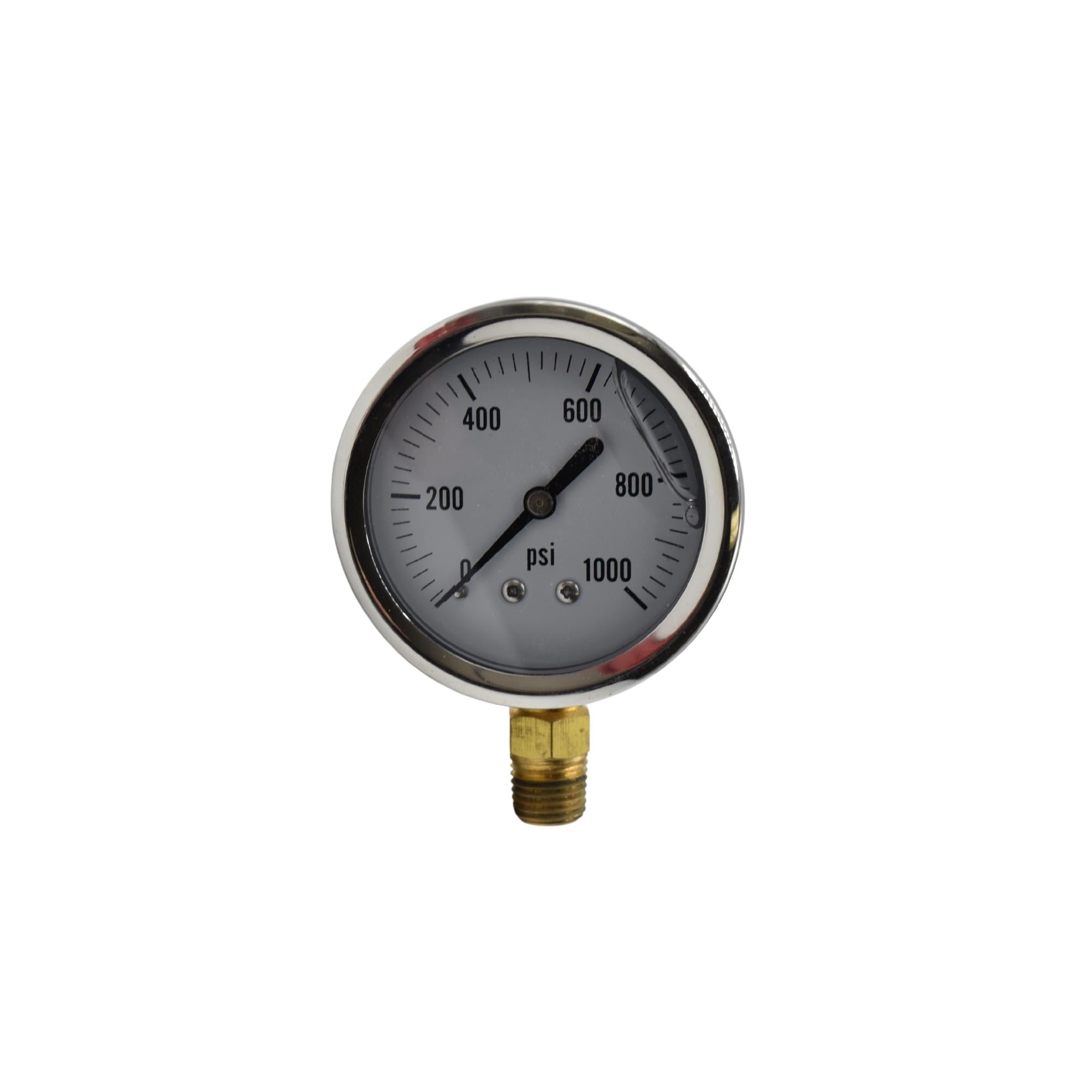

The Dynamic CF Series Glycerine-Filled gauges provide a cost-effective and precise solution for your pressure measurement needs. These gauges are built with a stainless steel case, a bronze bourdon tube and connection, and a durable polycarbonate lens. Each gauge comes equipped with a built-in snubber for improved performance. Standard gauge faces feature dual psi and bar scales, with pressure ranges available up to 10,000 psi. Certificates of Accuracy can be provided for an additional fee.
| Specification | Details |
|---|---|
| Material | Stainless Steel |
| Gauge Face Size | 2.5" |
| Gauge Pressure Range | 0-1000psi |
| Gauge Style Selection | Stem Mounted |
| Gauge Connection | 1/4" NPT |
| Country of Manufacture | China |
| Height | 3.45 inches |
| Length | 1.18 inches |
| Width | 3.45 inches |
