| Quantity | Discount | Part Price |
|---|---|---|
| >10 pieces | 10.0 % | $5.83 |

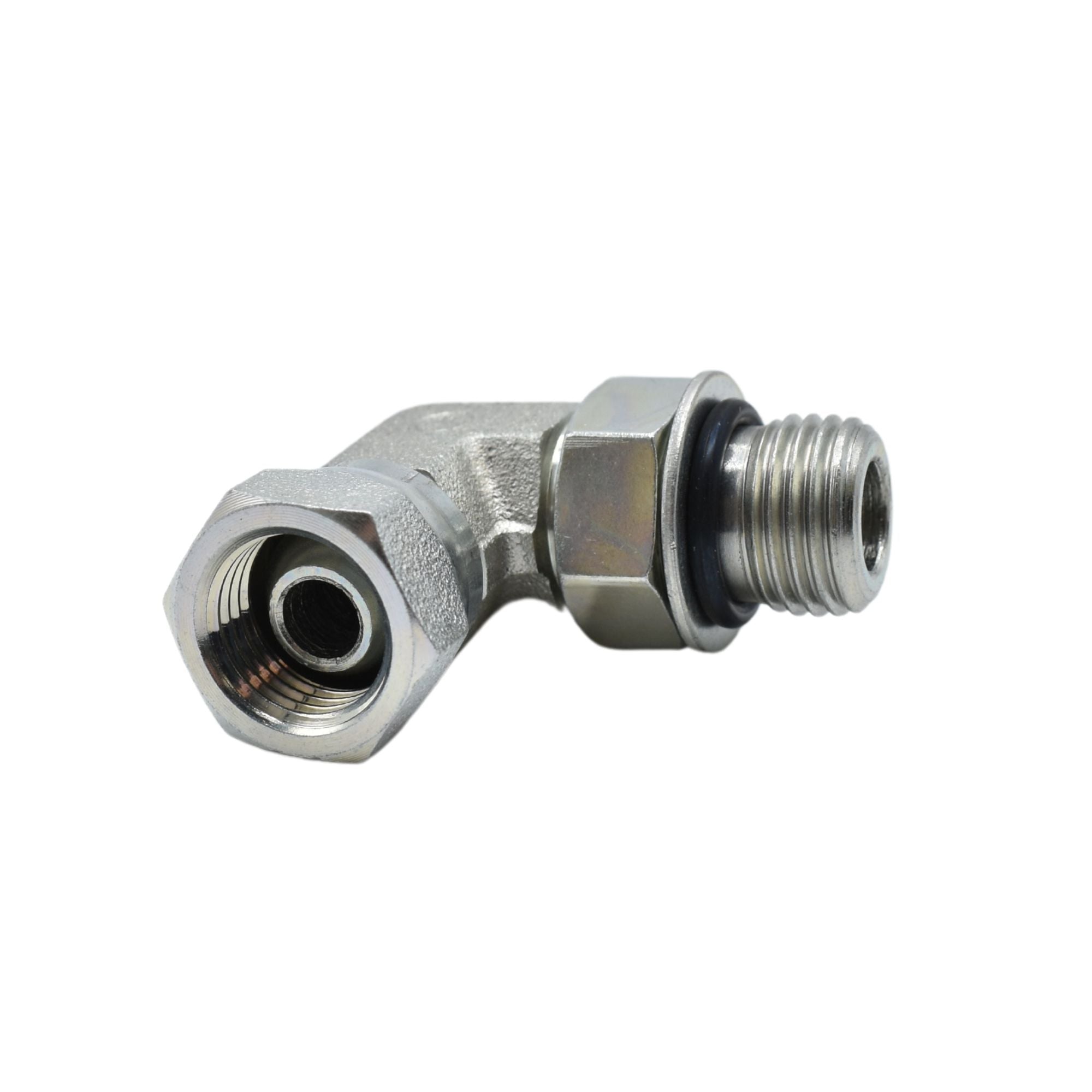

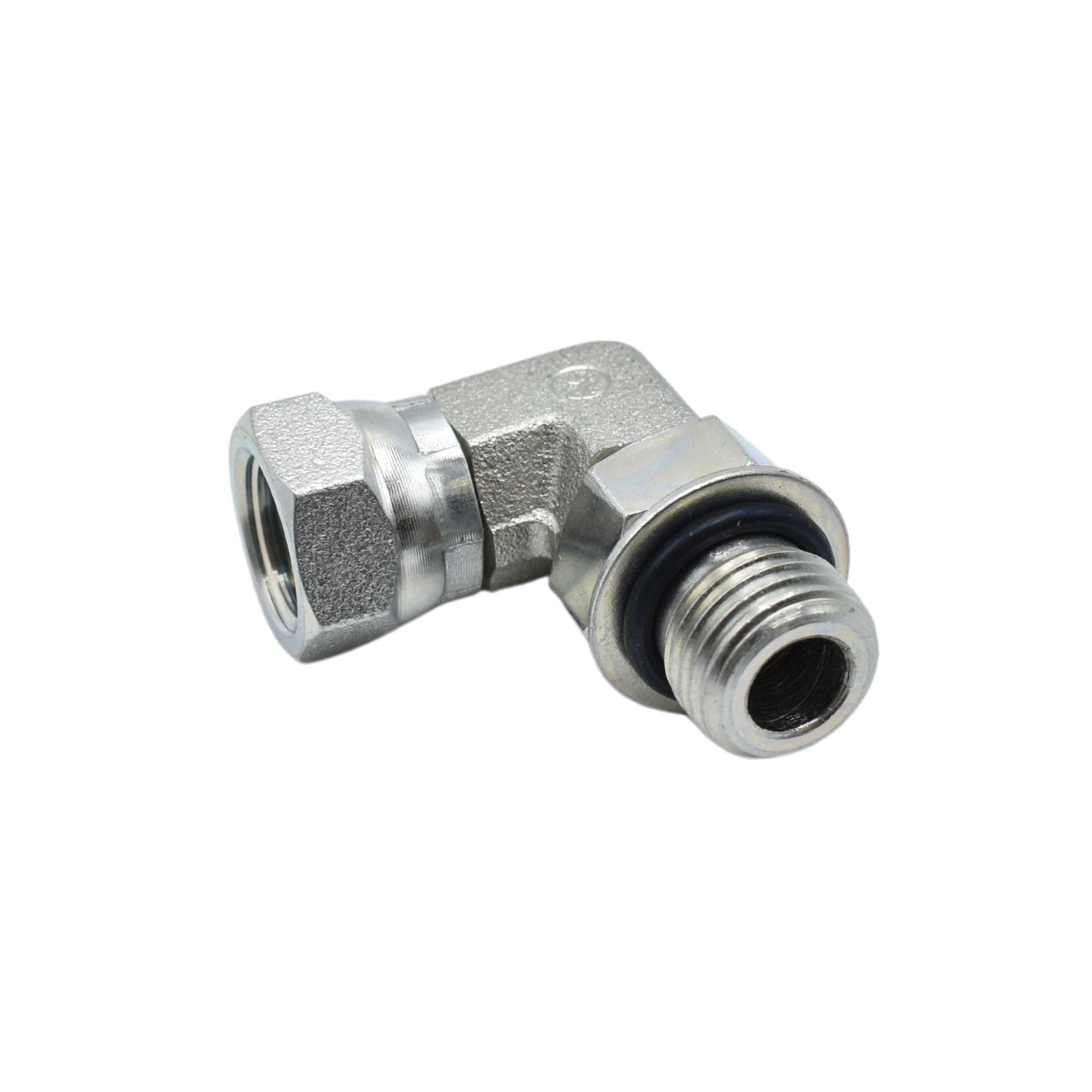

| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.220 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| C HEX 2 IN | 0.688 |
| OVERALL LENGTH L IN | 1.070 |
| OVERALL LENGTH L2 IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.250 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
ID #: 34515
