Mfr. Part #: 4501-05-02-FG
| Quantity | Discount | Part Price |
|---|---|---|
| >10 pieces | 10.0 % | $7.65 |
ID #: 188259

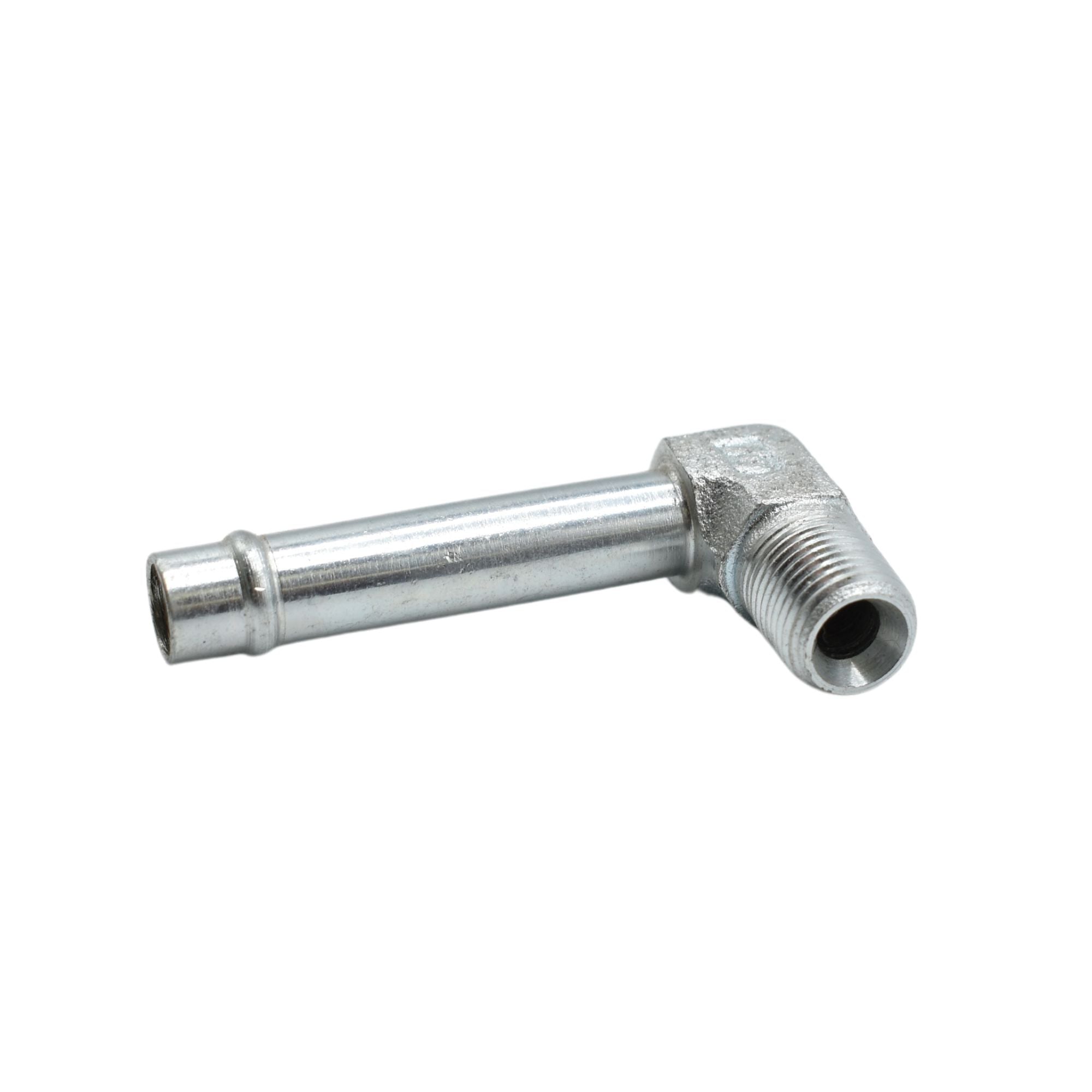

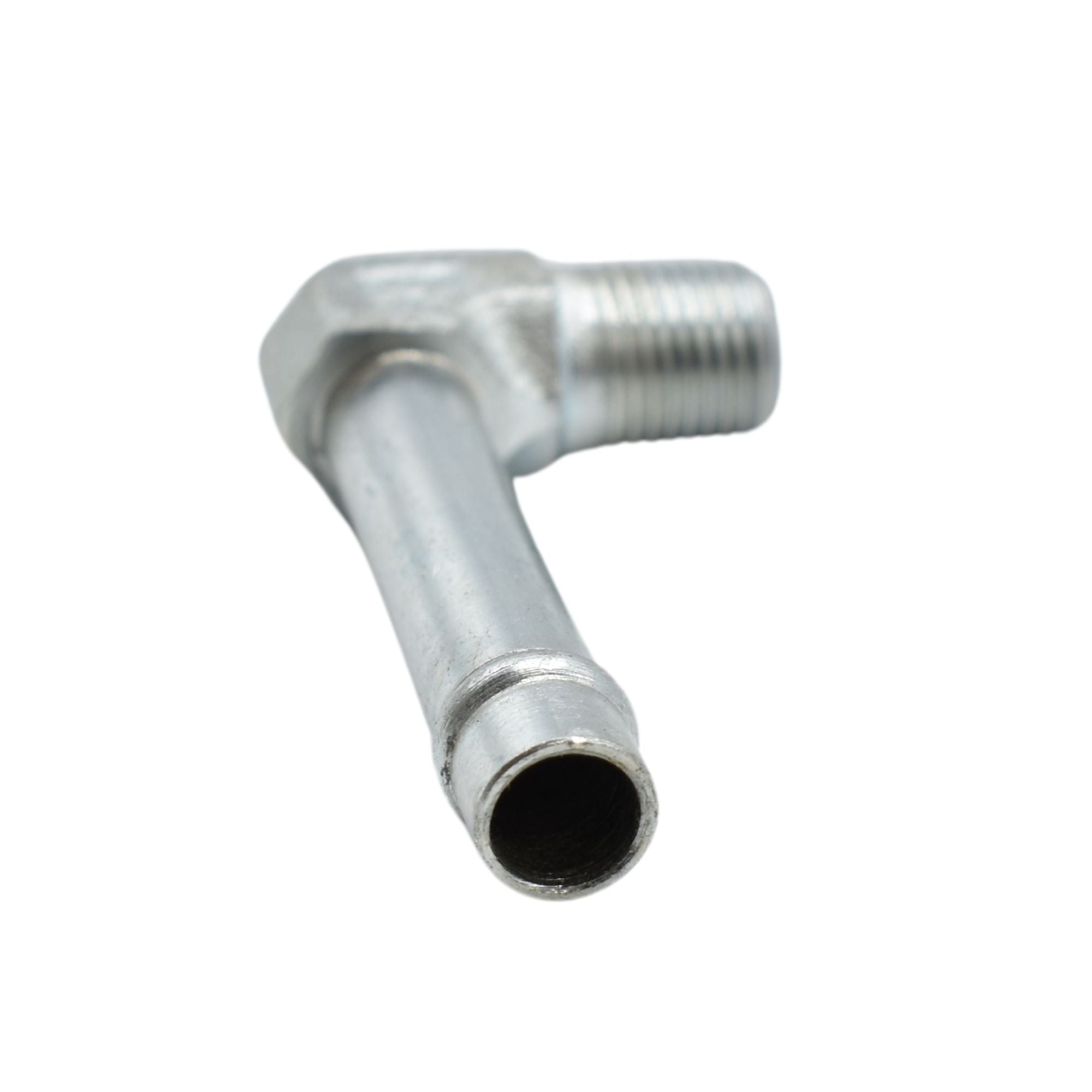

05HB-02MP 90deg Elb Forg Adapter
| THREAD B1 TYPE | HOSE BARB |
| THREAD B1 SIZE | TUBE OD 5/16 |
| THREAD B1 DRILL IN | 0.252 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.437 |
| OVERALL LENGTH L IN | 1.750 |
| OVERALL LENGTH L2 IN | 0.780 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0562 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
