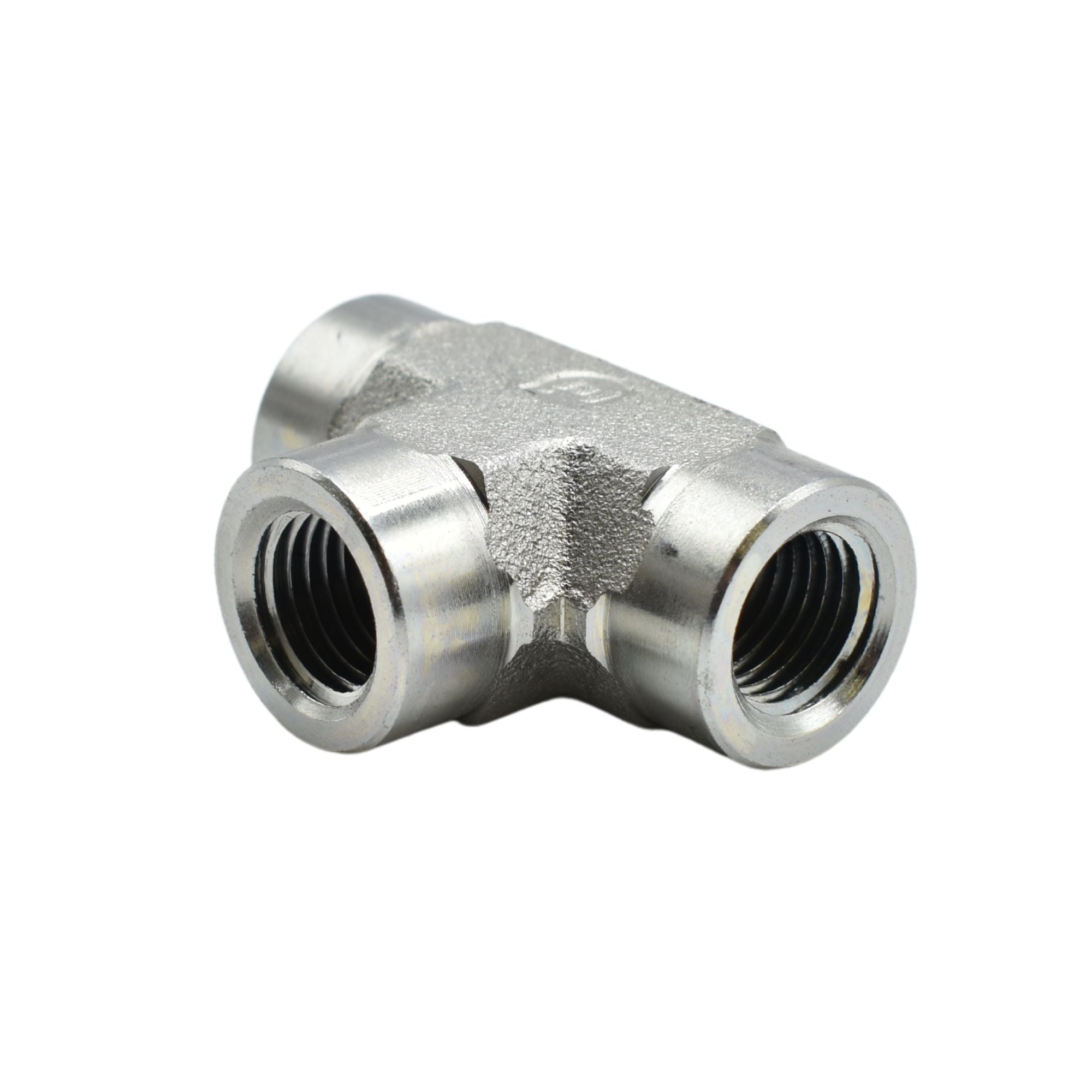

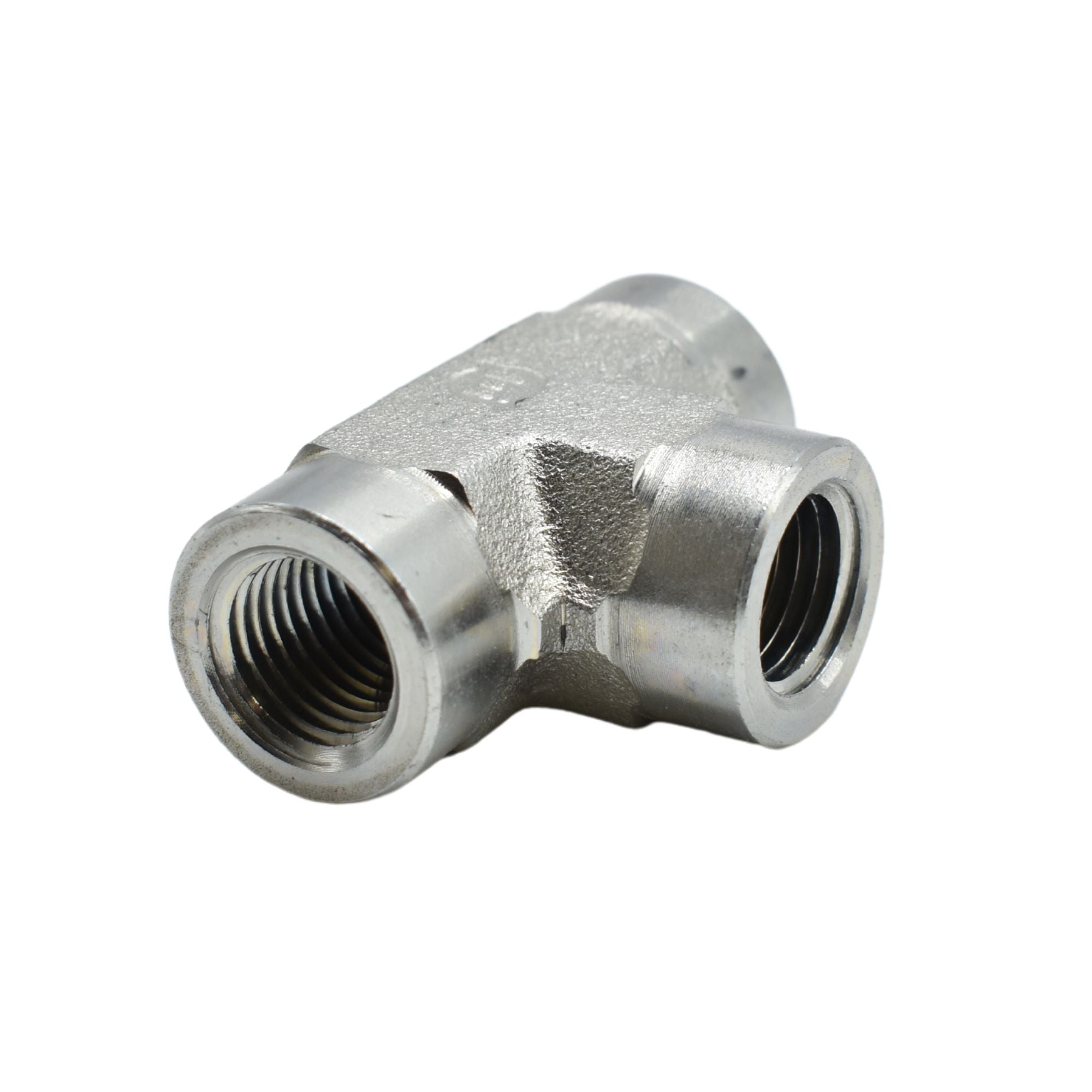

04FP-04FP-04FP Tee Forg Adapter
THREAD B1 TYPE | FEMALE NPTF |
THREAD B1 SIZE | 1/4-18 |
THREAD B1 DRILL IN | 0.281 |
THREAD B1 SPECIFICATION | SAE J476 |
THREAD B2 TYPE | FEMALE NPTF |
THREAD B2 SIZE | 1/4-18 |
THREAD B2 DRILL IN | 0.281 |
THREAD B2 SPECIFICATION | SAE J476 |
THREAD 3 TYPE | FEMALE NPTF |
THREAD 3 SIZE | 1/4-18 |
THREAD 3 DRILL IN | 0.281 |
THREAD 3 SPECIFICATION | SAE J476 |
BODY HEX IN | 0.750 |
OVERALL LENGTH L IN | 0.880 |
CENTERLINE LENGTH M IN | 0.880 |
CENTERLINE LENGTH M2 IN | 0.880 |
SHAPE | TEE |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STEEL FORGING |
PLATING | CR3 |
WEIGHT LBS | 0.19 |
