Mfr. Part #: CF1P-700D
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

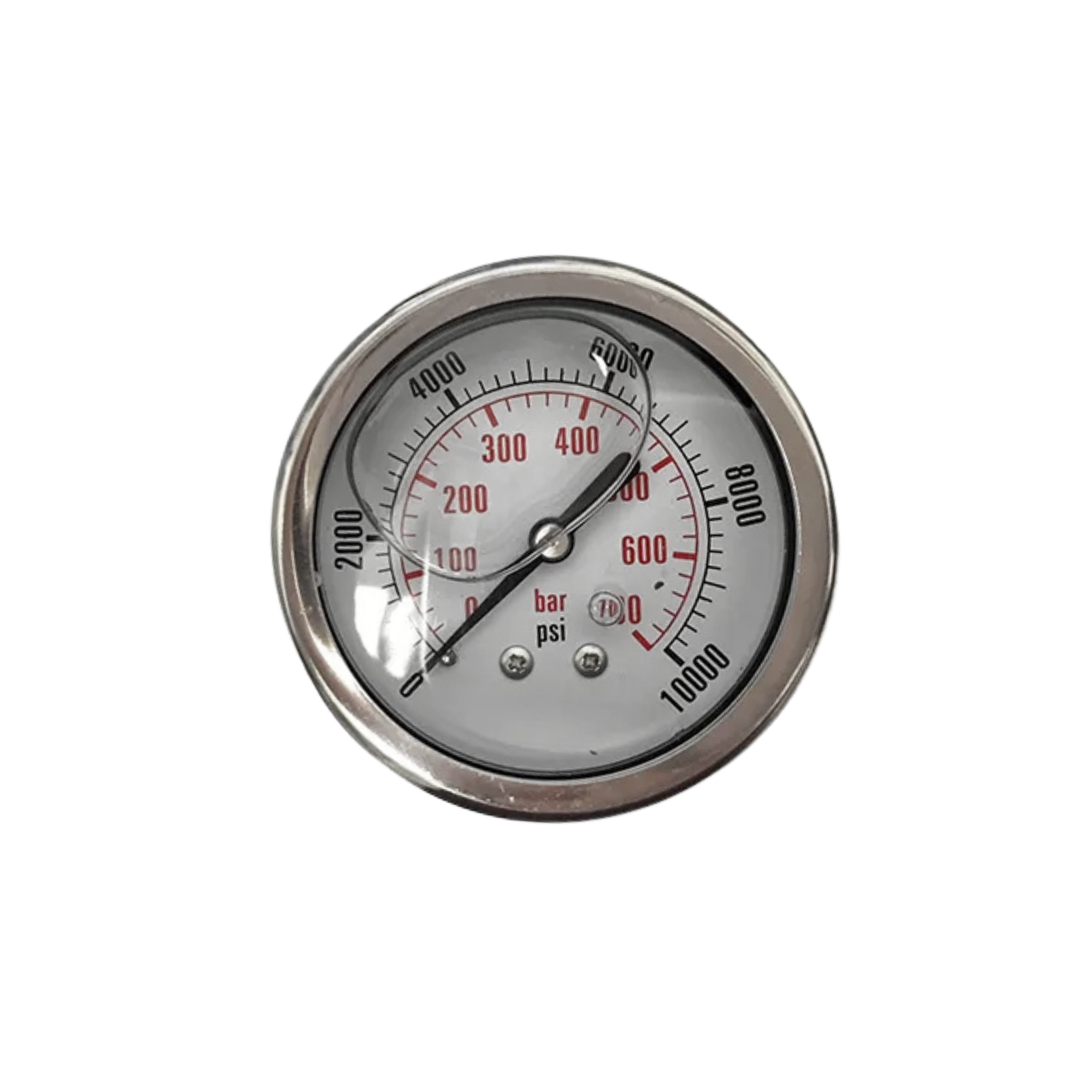

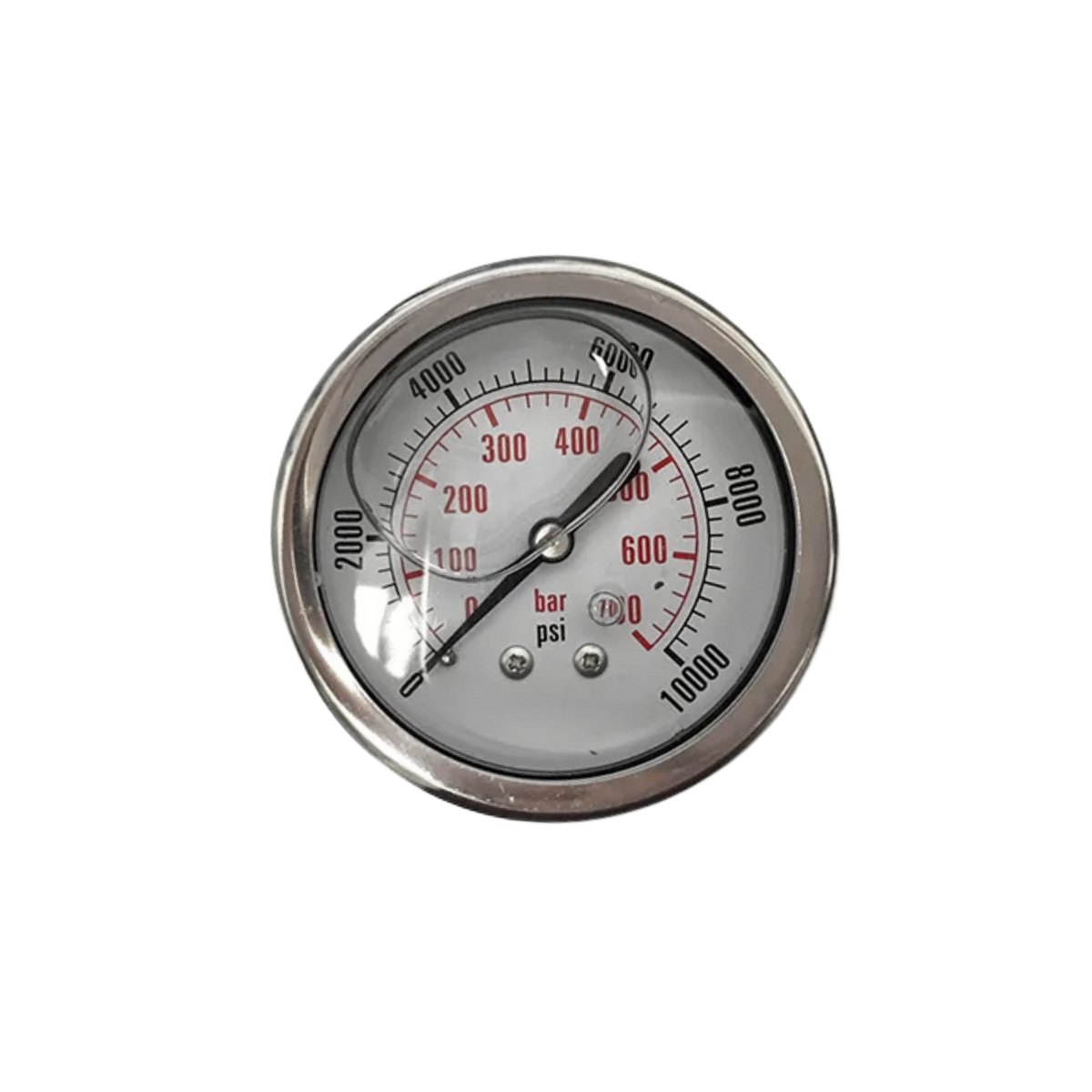

The Dynamic Fluid Components CF1P-700D is a 2.5-inch glycerin-filled pressure gauge designed for monitoring high-pressure hydraulic and industrial systems up to 10,000 PSI. Its stainless steel case, phosphor bronze Bourdon tube, and polycarbonate lens provide durable construction for demanding applications. The center-back mounting configuration allows rear installation, while the built-in snubber helps reduce pointer vibration caused by pressure pulsations.
| Manufacturer | Dynamic Fluid Components |
| Part Number | CF1P-700D |
| Product Type | Glycerin-Filled Pressure Gauge |
| Gauge Diameter | 2.5 in |
| Pressure Range | 0–10,000 PSI |
| Mounting Style | Center Back Mount |
| Case and Bezel Material | 304 Stainless Steel |
| Bourdon Tube Material | Phosphor Bronze |
| Lens Material | Polycarbonate |
| Connection | 7/16-20 SAE |
| Dial Scale | PSI and bar |
| Accuracy | ±1.6% of Full Scale |
| Temperature Range | -13°F to 180°F |
| Snubber | Built-in |
ID #: 193070
