Quantity | Discount | Part Price |
---|---|---|
>10 | Contact us for a quote | $50.00 |

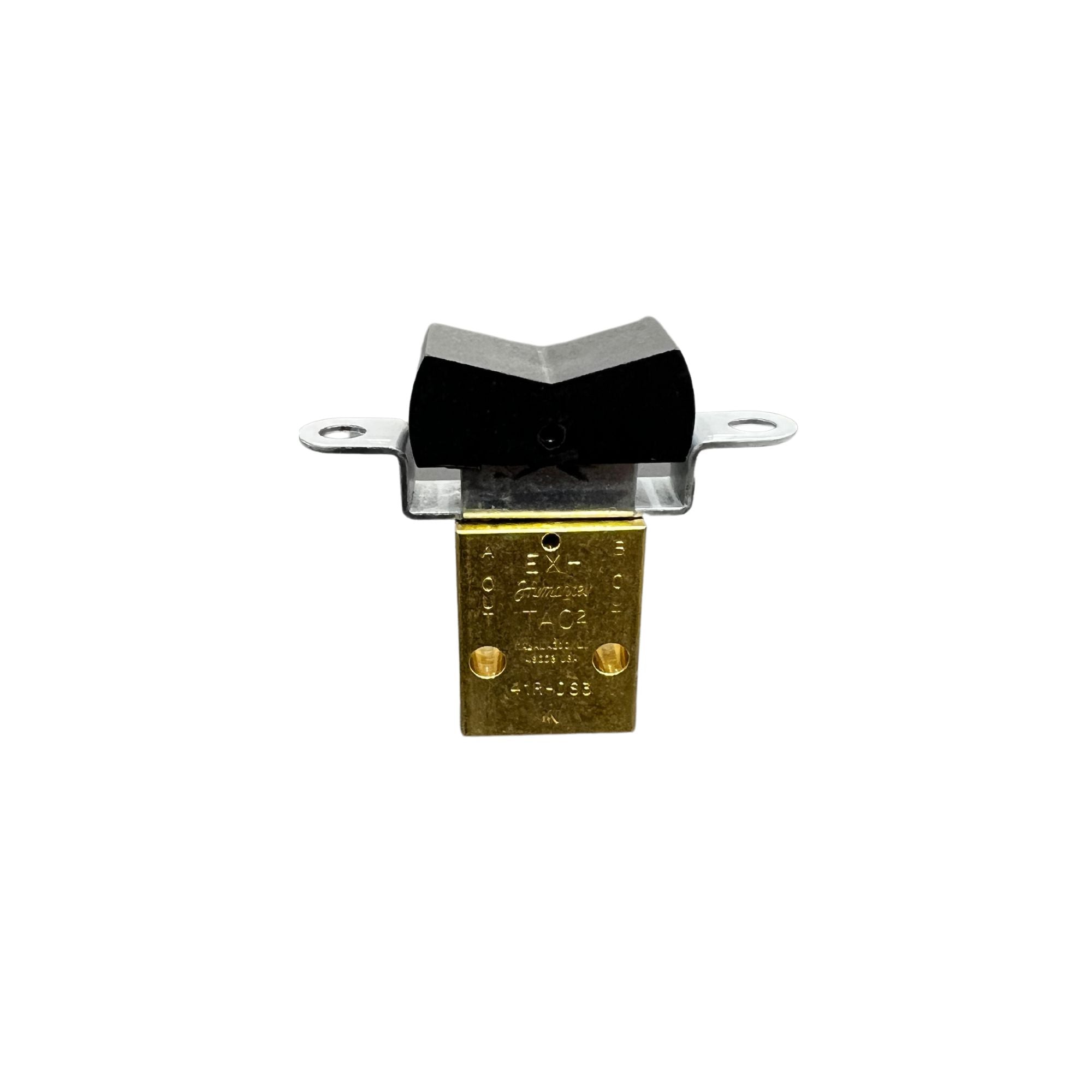

Three position, four way miniature rocker valve, detent & spring return, with 1/8 pipe ports. TAC three position toggle valves feature a rocker above speed nuts and two 7/32 dia mtg holes. Feature permits easy panel mounting. Rocker design prevents valve overstroke. Compact. Rugged.
Number of Ports | 4 ports |
Number of Positions | 3 positions |
Valve Function | 4-way Detent & Spring Return, Exhaust Center |
Piping Type | Inline, Direct Piping |
Options Included | Flange Mounting Clips |
Approx Size (in) HxWxD | 1.90 x 0.63 x 1.22 |
Media | Air |
Type of Operation | Rocker |
Flow Capacity (Cv) | 0.12 |
Port Size | 1/8 NPSF |
Lubrication | Recommended |
ID #: 4615
