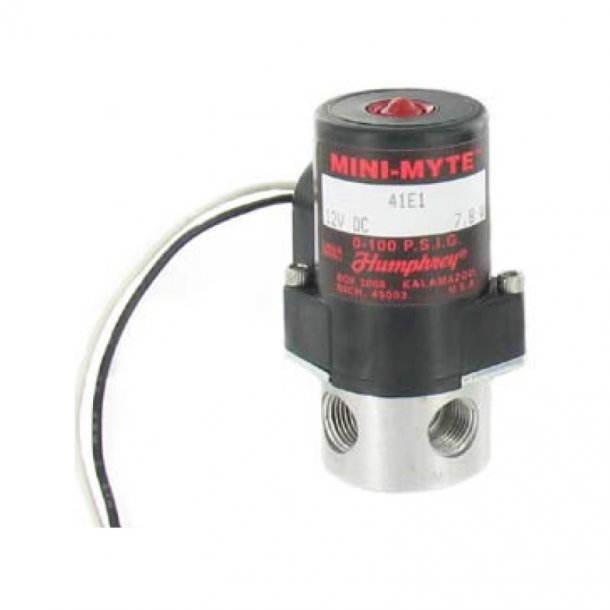

Humphrey | Valve 4/2 SS 24DC 1/8 | M41E1-24DC

Mfr. Part #: M41E1-24DC

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10	Contact us for a quote	$332.69

The Humphrey M41E1-24DC is a compact 4-way, 2-position solenoid valve with spring return, designed for inline or manifold mounting. Operating at 24V DC, it delivers precise pneumatic control with fast response times, suitable for automation, packaging, and industrial pneumatic systems. It features manual override and exhaust flow control for enhanced operation.

Key Features:
- 4-way, 2-position direct-acting solenoid valve with spring return
- 1/8" NPT ports; inline or manifold mount
- Operates on 24V DC; 8.5W power consumption
- Flow capacity Cv ≈ 0.03; pressure range 0–100 psi
- Fast response (~7 ms actuation; ~13 ms release), up to 300 cycles/min
- Lubrication recommended; ambient temperature range –30°F to 130°F
- Manual override and exhaust flow control metering screws standard

Common Applications:
- Pneumatic automation in packaging, assembly, and material handling
- Air flow control for cylinders and actuators
- Valve control in HVAC and industrial pneumatic systems
- Low-maintenance operations in harsh or variable environments
- Machine tools and equipment requiring quick cycling and compact valves

Humphrey M41E1-24DC Specifications
Valve Type	4-way, 2-position solenoid (spring return)
Port Size	1/8" NPT
Mounting	Inline or manifold mount
Voltage	24V DC
Power Consumption	8.5 W
Flow Capacity (Cv)	Approx. 0.03
Operating Pressure	0 to 100 psi
Response Time	Actuation: ~7 ms, Release: ~13 ms
Cycle Rate	Up to 300 cycles/min
Ambient Temperature Range	−30°F to 130°F
Lubrication	Recommended
Additional Features	Manual override, exhaust flow control metering screws
