Mfr. Part #: 410-24/50/60
| Quantity | Discount | Part Price |
|---|---|---|
| >10 | 5.0 % | $61.49 |
ID #: 4524

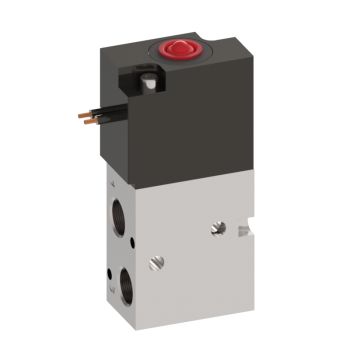

1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operate reliable from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS and REACH compliant.
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way Single Solenoid, Multi-purpose |
| Piping Type | Inline, Direct Piping |
| Coil Entry Orientation | Standard, over port 2 |
| Size (in) HxWxD | 2.75 x 0.75 x 1.25 |
| Media | Air, Inert Gas, Vacuum |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.14 |
| Port Size | 1/8 NPSF |
| Lubrication | Not Required |
