Mfr. Part #: 410-120/60
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| Quantity | Discount | Part Price |
|---|---|---|
| >10 | Contact us for a quote | $65.31 |
ID #: 4520

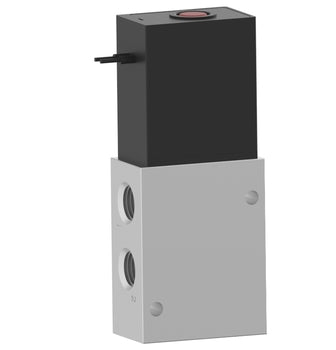

1/8 NPSF, 3/4 inch wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operated reliably from vacuum ~ 125psi. The valve is ideal for reliable control of double acting cylinders up to 1 1/4 bore (32mm). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS and REACH compliant.
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way Single Solenoid, Multi-purpose |
| Piping Type | Inline, Direct Piping |
| Size (in) HxWxD | 4.12 x 1 x 1.75 |
| Media | Air, Inert Gas, Vacuum |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 1.00 |
| Port Size | 1/4 NPSF |
| Lubrication | Not Required |
