420-120/50/60
| Quantity | Discount | Part Price |
|---|---|---|
| >10 | 5.0 % | $91.66 |

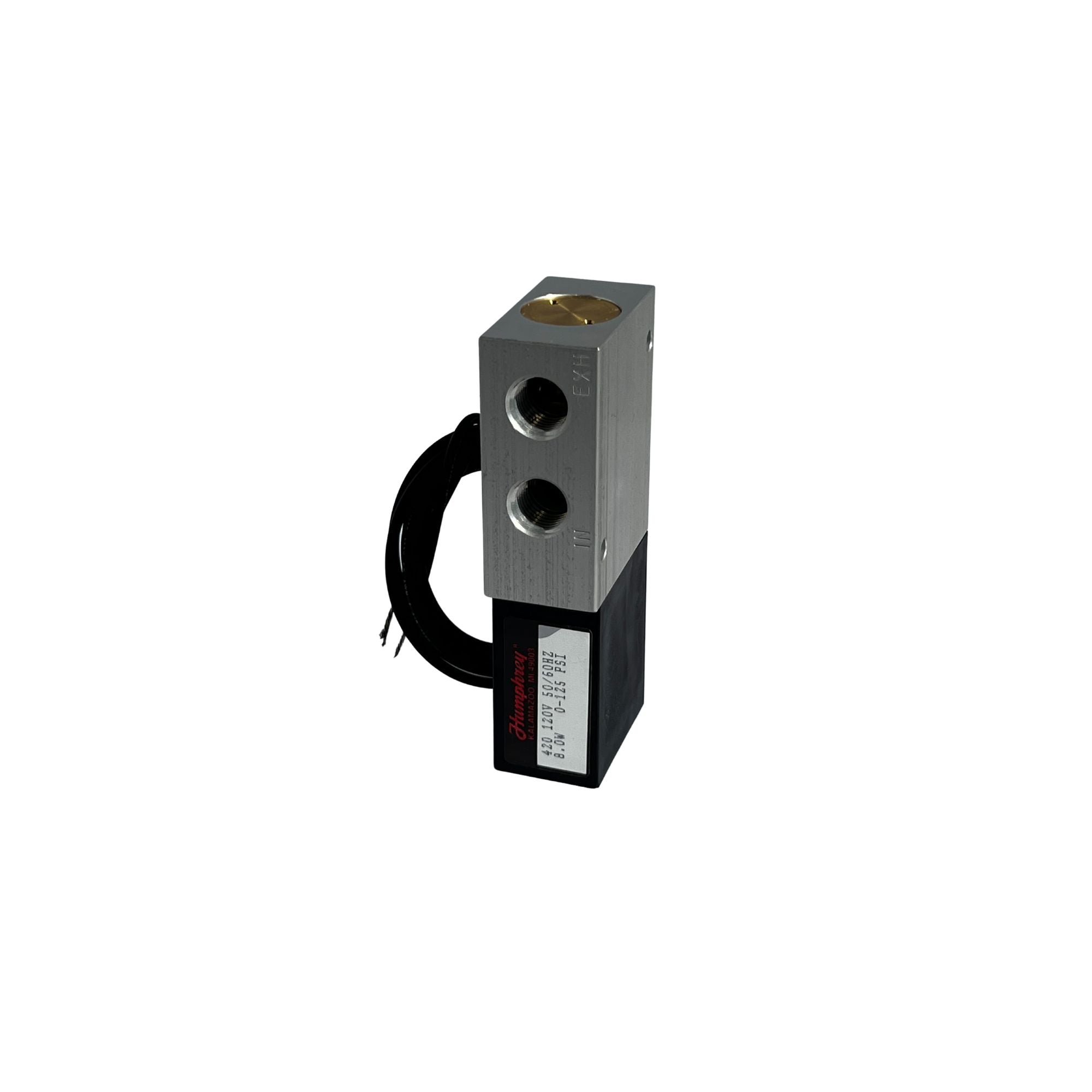

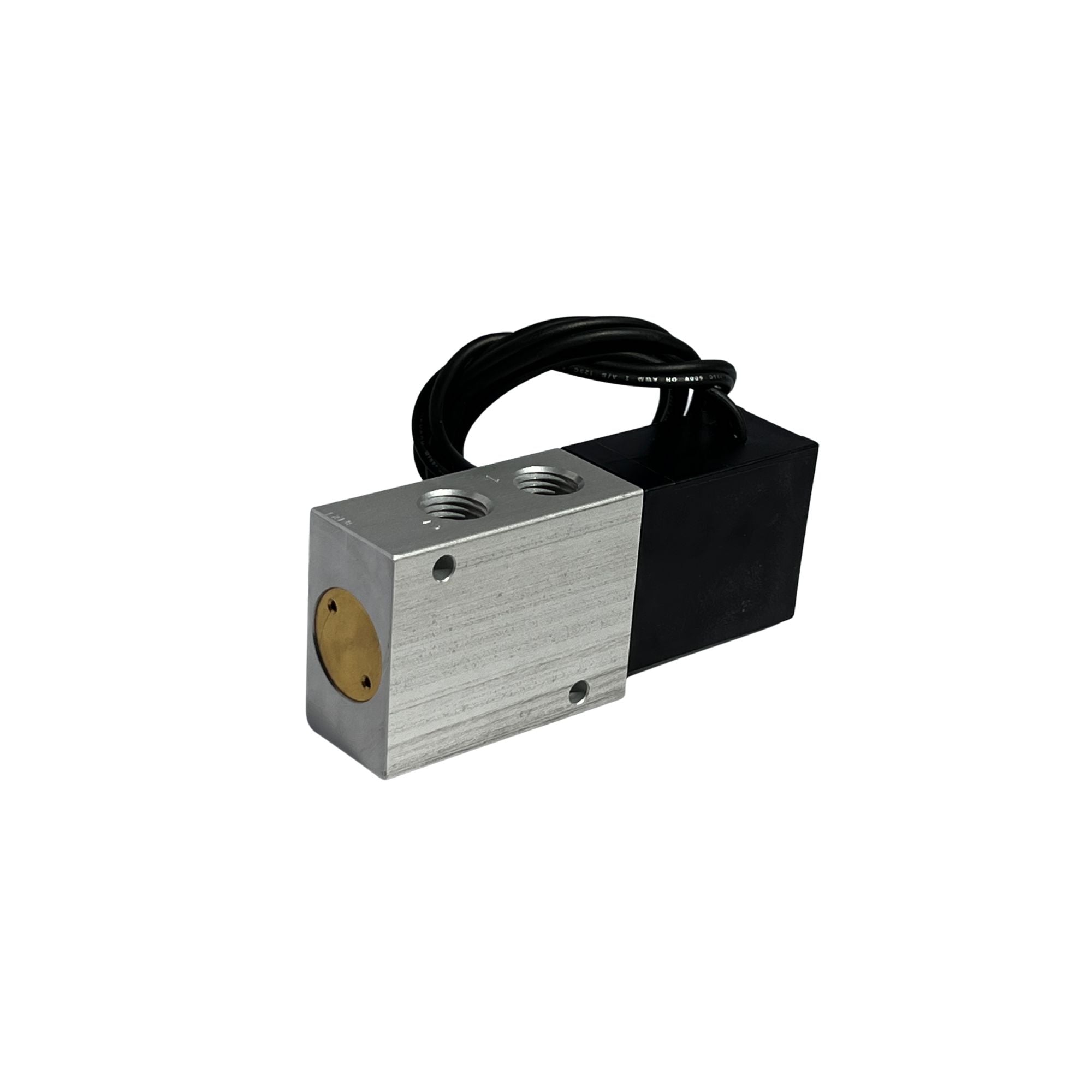

1/4 NPSF, 25mm wide 420 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operate reliable from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 4" bore (100mm). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS and REACH compliant.
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way Single Solenoid, Multi-purpose |
| Piping Type | Inline, Direct Piping |
| Size (in) HxWxD | 4.12 x 1 x 1.75 |
| Media | Air, Inert Gas, Vacuum |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 1.00 |
| Port Size | 1/4 NPSF |
| Lubrication | Not Required |
ID #: 4628
