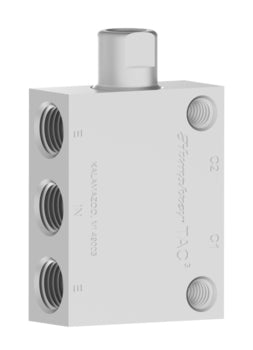

5-ported, 4-Way Air Piloted valve, spring return with 1/4 pipe ports ports and a 1/8 pipe pilot port. Excellent choice to operate large double acting pneumatic cylinders (up to 2" bore). Compact. Rugged.
Number of Ports | 5 ports |
Number of Positions | 2 positions |
Valve Function | 4-way, Single Air Pilot, Spring Return, |
Piping Type | Inline, Direct Piping |
Approx Size (in) HxWxD | 2.77 x 0.75 x 1.75 |
Media | Air |
Type of Operation | Air Pilot |
Flow Capacity (Cv) | 0.52 |
Port Size | 1/4 NPSF (Pilot Port: 1/8 NPSF) |
Lubrication | Recommended |
