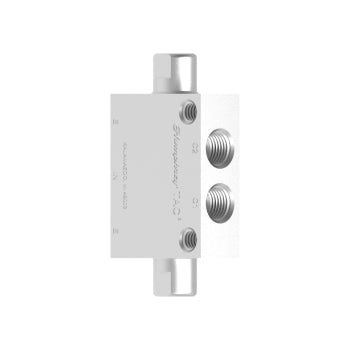

5-ported, 4-Way Air Piloted valve, detent, with 1/4 pipe ports ports and two 1/8 pipe pilot ports. Excellent choice to operate large double acting pneumatic cylinders (up to 2" bore). Compact. Rugged.
| Number of Ports | 5 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way, Double Air Pilot, Detented |
| Piping Type | Inline, Direct Piping |
| Approx Size (in) HxWxD | 3.29 x 0.75 x 1.75 |
| Media | Air |
| Type of Operation | Double Air Pilot |
| Flow Capacity (Cv) | 0.52 |
| Port Size | 1/4 NPSF (Pilot Port: 1/8 NPSF) |
| Lubrication | Recommended |
ID #: 4660
