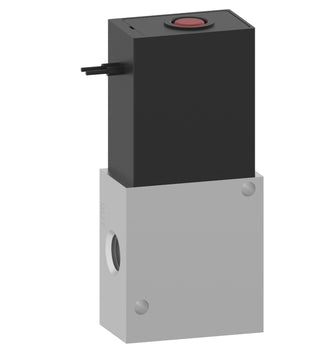

1/4 NPSF, 25mm wide 320 Series is compact, high flow and low cost. Direct acting, this 3-port solenoid valve can operate reliably from vacuum to 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Coil is encapsulated. Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.
Number of Ports |
3 ports |
Number of Positions |
2 positions |
Valve Function |
Single Solenoid, Multi-purpose |
Piping Type |
Inline, Direct Piping |
Size (in) HxWxD |
3.75 x 1 x 1.75 |
Media |
Air, Inert Gas, Vacuum |
Type of Operation |
Direct Acting Type |
Flow Capacity (Cv) |
1.00 |
Port Size |
1/4 NPSF |
Lubrication |
Not Required |
