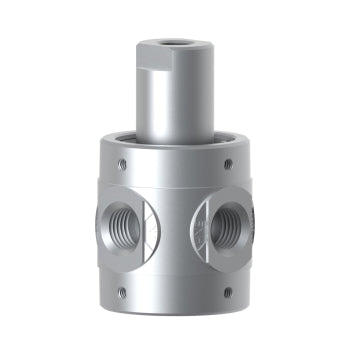

250A Series 1/4 pipe Air Pilot Valves feature the classic Humphrey diaphragm poppet principle. The unbalanced, air-spring return design assures reliable shifting and bubble-tight sealing actuated, and unactuated. Compact design permits close proximity mounting to work and fast cycling/quick exhaust. Rugged 2- or 3- way valves are available normally closed or normally open, in standard or optional brass body construction (for alternate media).
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Valve Function | Single Pilot, Normally Open |
| Piping Type | Inline, Direct Piping |
| Size (in) HxWxD | 2.78 x 1.63 DIA |
| Media | Air, Inert Gas |
| Type of Operation | Air Piloted |
| Flow Capacity (Cv) | 0.83 |
| Port Size | 1/4 NPSF (Pilot Port: 1/8 NPSF) |
| Lubrication | Not required |
ID #: 3799
