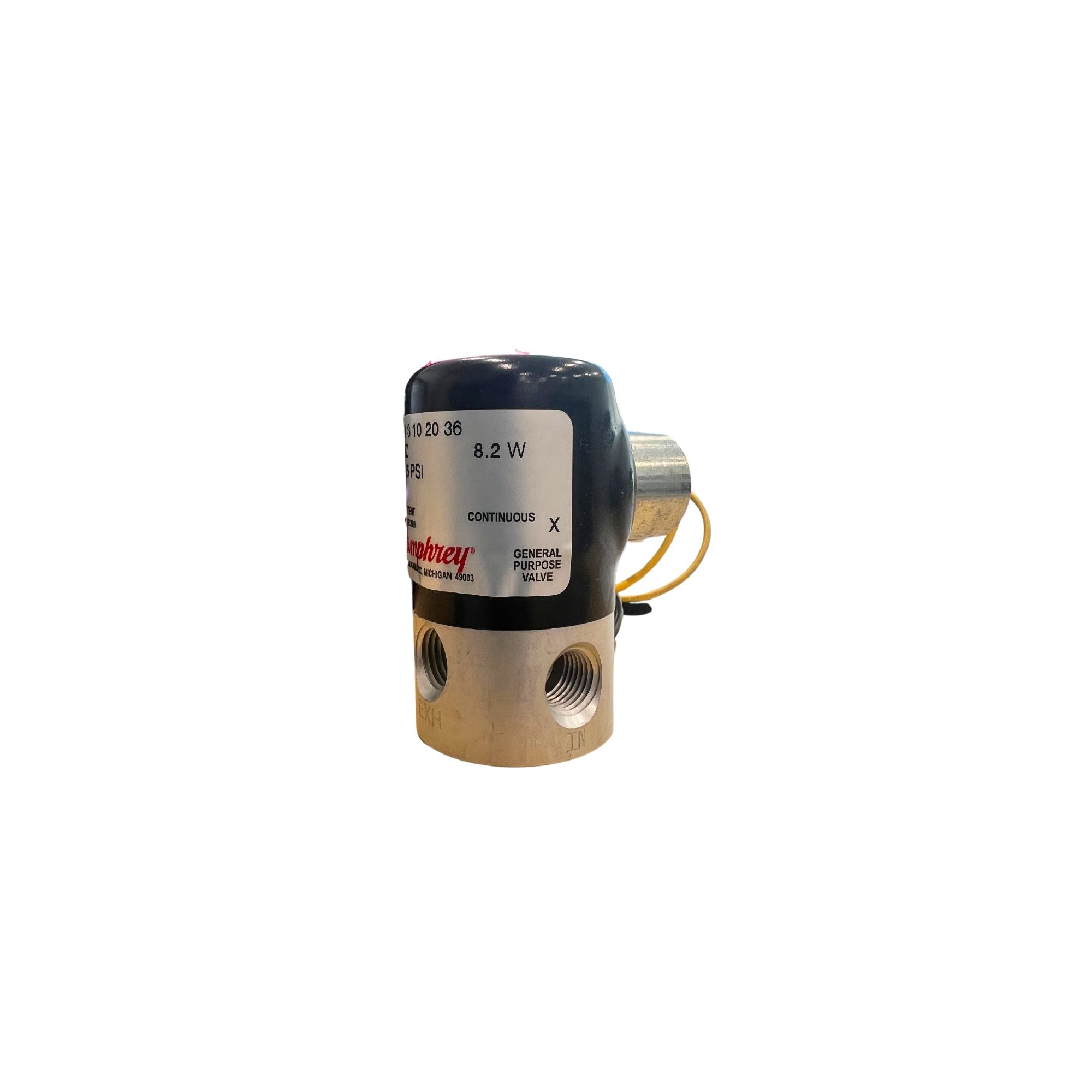

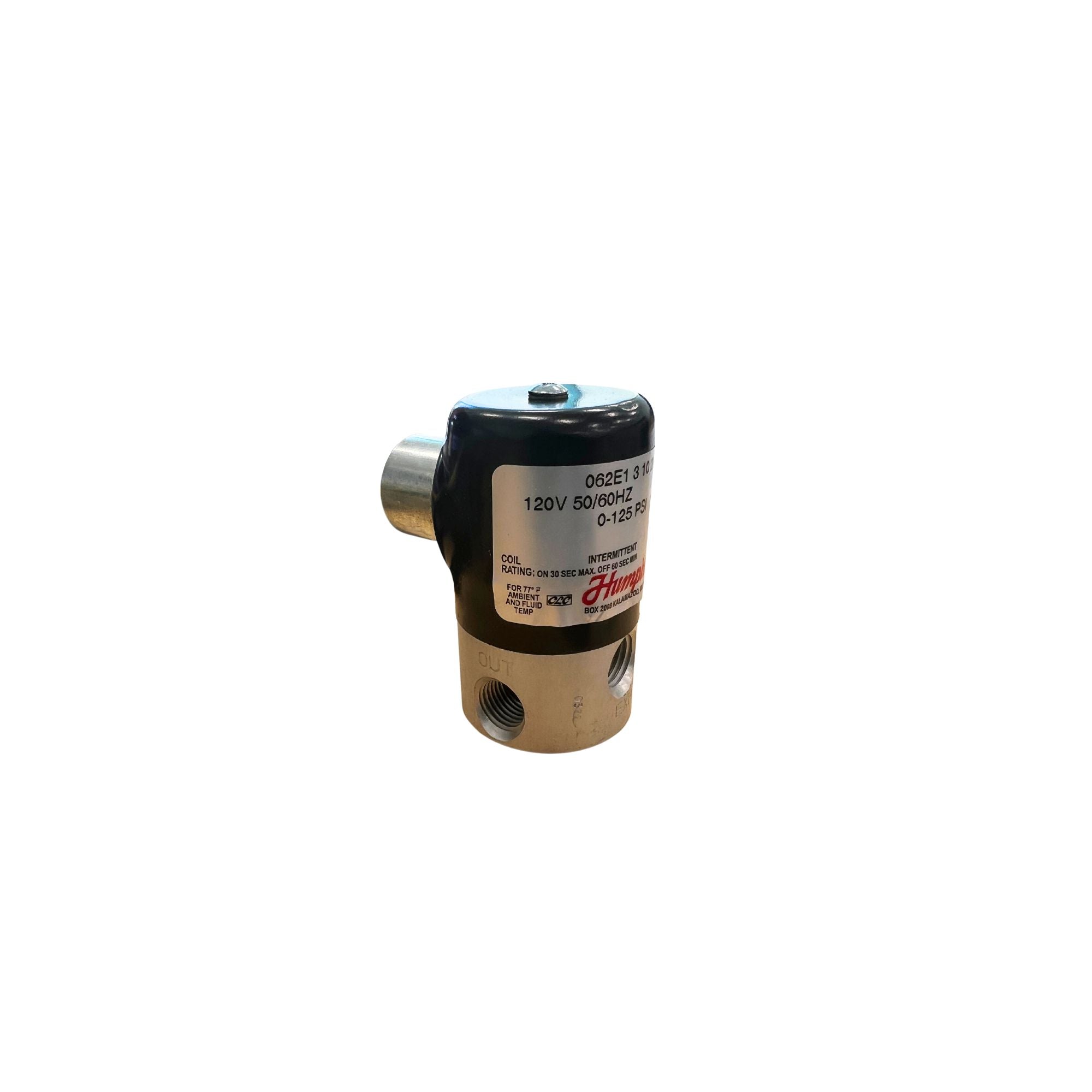

The compact, directing acting Tyna-Myte solenoid valve, 062 Series, has been a reliable choice in pneumatic automation for years. Select these 1/4 PIPE ported valves as 2 or 3-way, normally closed or open, single or double solenoid in a variety of voltages.
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Valve Function | Single Solenoid, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Media | Air, Inert Gas |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.15 |
| Port Size | 1/4 NPSF |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-125 |
| Response Time per Step (ms) | 4/10 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | -30~150 |
| Wetted Materials | Anodized Aluminum, Brass, Buna N |
| Weight (oz) | 12.0 |
| Electrical Entry | Conduit w/24" Lead Wires |
| Voltage | 120/50/60 |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 8.2 |
ID #: 223
