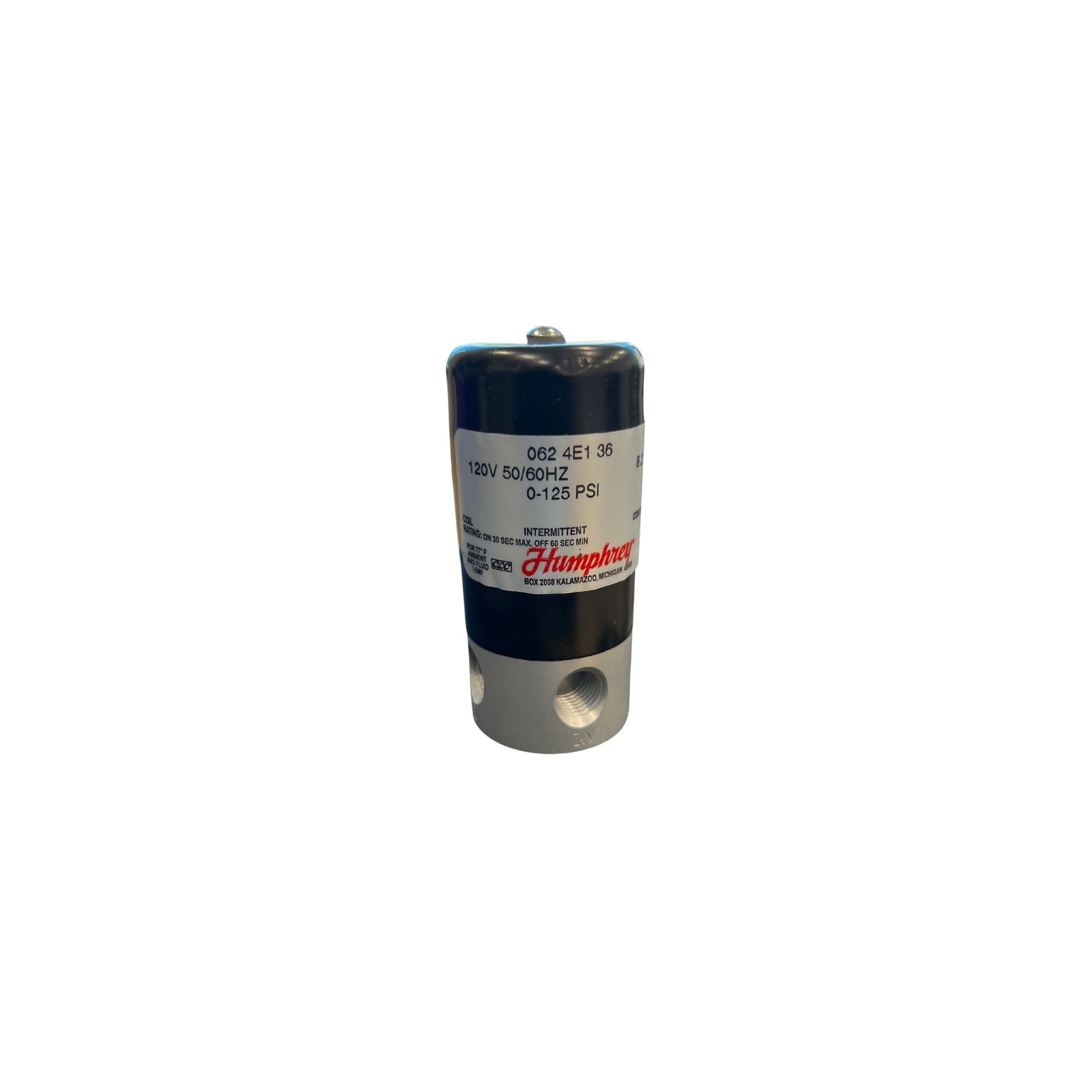

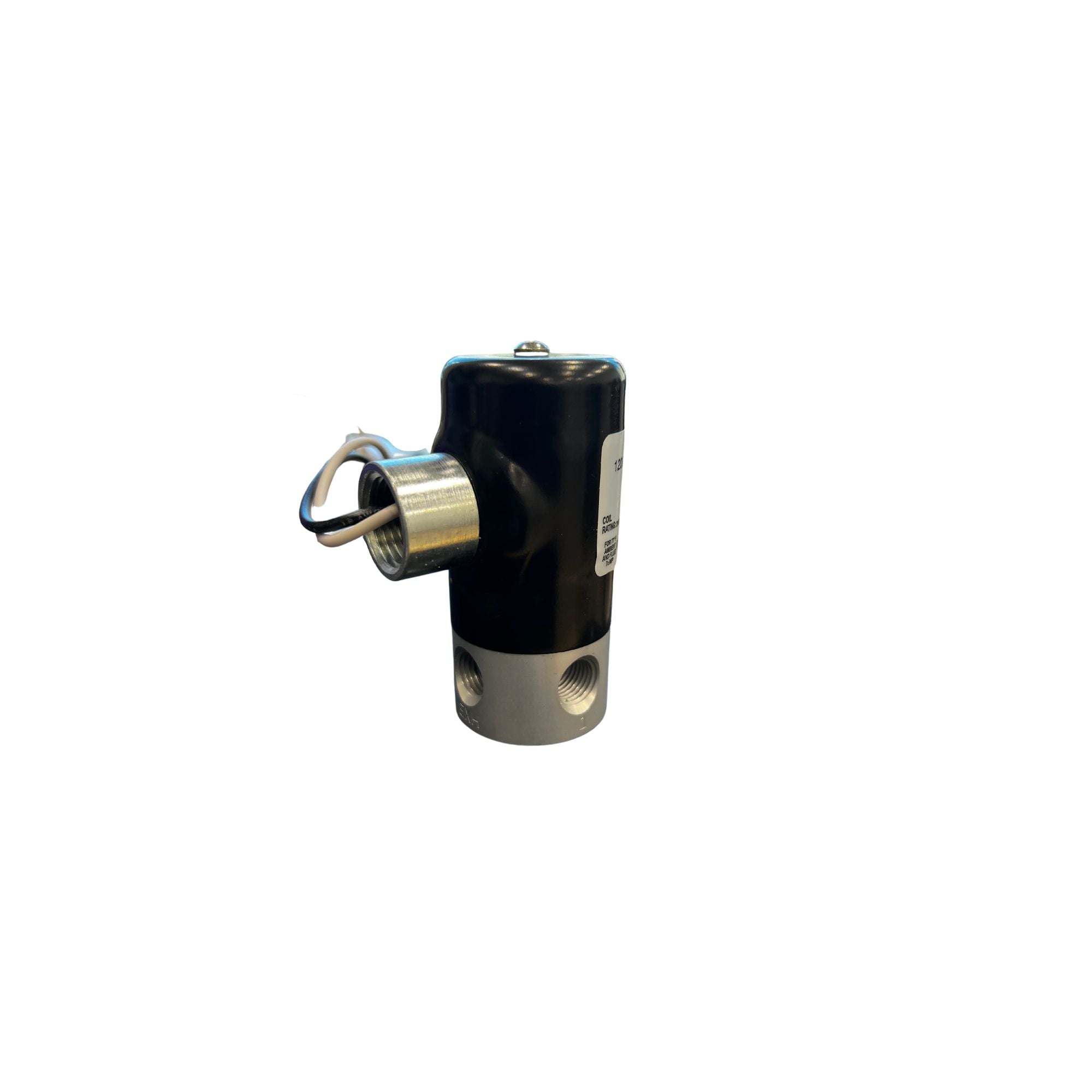

Humphrey | Tyna-Myte Solenoid Valve | 062-4E1-20-36-120/60

Name: Humphrey | Tyna-Myte Solenoid Valve | 062-4E1-20-36-120/60
Brand: Humphrey Products
SKU: 062-4E1-20-36-120/60
Price: 339.86 USD
Availability: InStock

Mfr. Part #: 062-4E1-20-36-120/60

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10	5.0 %	$322.87

ID #: 217

Description
Features
Specifications
Resources

The Humphrey 062-4E1-20-36-120/60 is a compact, 4-way, 2-position solenoid valve designed for fast, reliable pneumatic control. With 1/4" NPSF ports, spring return, and 120V AC operation, it delivers quick actuation and high cycling performance up to 600 cycles per minute. Ideal for automation, HVAC, and industrial systems where space-saving and durability are critical.
Key Features:
- 4‑way, 2‑position direct‑acting solenoid valve with spring return
- 1/4" NPSF ports, aluminum base, inline mounting
- Operates on 120V AC at 50/60 Hz; 8.6 W power consumption
- Flow capacity Cv ≈ 0.10; pressure range 0–125 psi
- Fast response (~4 ms actuation; ~13 ms release), up to 600 cycles/min
- Lubrication not required; ambient temp –30 °F to 150 °F

Common Applications:
- Pneumatic automation in packaging, assembly, and material handling
- Air flow control for cylinders and actuators
- Valve control in HVAC and industrial pneumatic systems
- Low-maintenance operations in harsh or variable environments
- Machine tools and equipment requiring quick cycling and compact valves

Humphrey 062-4E1-20-36-120/60 Specifications
Valve Type	4-way, 2-position solenoid (spring return)
Port Size	1/4" NPSF
Mounting	Inline, aluminum base
Voltage	120V AC, 50/60 Hz
Power Consumption	8.6 W
Flow Capacity (Cv)	Approx. 0.10
Operating Pressure	0 to 125 psi
Response Time	Actuation: ~4 ms, Release: ~13 ms
Cycle Rate	Up to 600 cycles/min
Ambient Temperature Range	−30°F to 150°F
Lubrication	Not required
